936098 (960460072-00) - Ariens 48" Lawn Tractor, Automatic Engine Parts Diagram

48" Lawn Tractor, Automatic

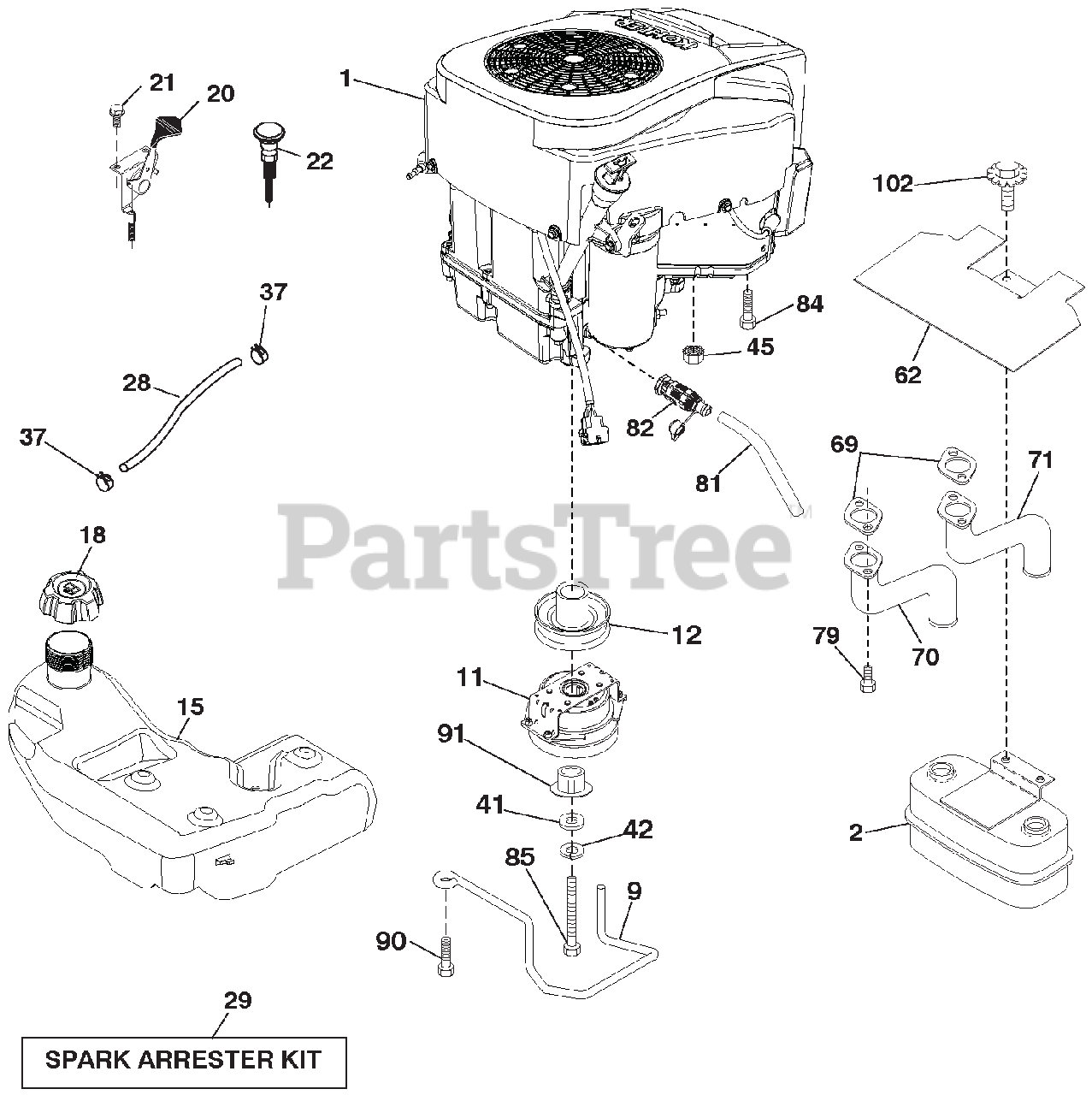

Engine Parts Diagram

  • Title
1

ENGINE KOHLER MODEL NO. KT725-3015

Note: (585446101) (ORDER PARTS FROM ENGINE MANUFACTURER.)

$

$

Not available

2

Ariens 21548899

MUFFLER ASM.

$70.38

$

Usually ships in 4-12 days

0

9

Ariens 21548399

KEEPER.BELT.ENGINE

$

$

Not available

11

Ariens 21548941

ELECTRIC CLUTCH

$266.07

$

Usually ships in 4-12 days

0

12

Ariens 21546604

PULLEY.ENGINE.TUFFTORQE.1"CRK.

$86.03

$

Usually ships in 4-12 days

0

15

Ariens 21547833

TANK.FUEL.SIDE-FILL.3.00 GA.

$241.87

$

Usually ships in 4-12 days

0

18

Ariens 21548942

FUEL CAP

$17.16

$

Usually ships in 4-12 days

0

20

Ariens 21548018

CONTROL.THROTTLE
(Superseded to 21546211)

$47.94

$

In Stock, only 1 left!

0

21

$3.34

$

Usually ships in 5-11 days

0

22

Ariens 21547761

CONTROL CHOKE
(Superseded to 21547705)

$36.84

$

Usually ships in 4-12 days

0

28

Ariens 21546570

LINE.FUEL.64"REAR.EMIS.CA.LP

$22.30

$

Usually ships in 4-12 days

0

29

Ariens 21546090

KIT.SPARK ARRESTOR(392390 B&S)

Note: (392390 B&S)

$

$

Not available

37

Ariens 21546069

CLAMP.HOSE.BLK.

$7.32

$

Usually ships in 4-12 days

0

41

Ariens 21546077

WASHER.1-1/2 ODX15/32 IDX.250

$6.09

$

Usually ships in 4-12 days

0

42

Ariens 21546004

WASHER.LOCK.HVY HLCL.SPR.7/16
(Superseded to 21547501)

$3.30

$

Usually ships in 4-12 days

0

45

Ariens 21546779

Nut, Keps Hex 1/4-20 unc

$3.01

$

Usually ships in 5-11 days

0

62

Ariens 21547370

SHIELD.HEAT.MUFFLER.

$

$

Not available

69

$6.09

$

Usually ships in 4-12 days

0

70

Ariens 21548724

EXHAUST TUBE LH

$16.16

$

Usually ships in 4-12 days

0

71

Ariens 21548725

EXHAUST TUBE RH

$27.89

$

Usually ships in 4-12 days

0

79

Ariens 21546293

SCREW.SOCKET HD.5/16-18 X .75
(Superseded to 05909000)

$2.24

$

In Stock, Qty 5

0

81

Ariens 21546117

TUBE.DRAIN.OIL.EASY

$4.92

$

In Stock, Qty 11

0

82

Ariens 21547348

VALVE OIL DRAIN

$18.44

$

In Stock, only 3 left!

0

84

Ariens 21546188

SCREW.3/8-16 X 1.SMGML.TAP/R

$6.65

$

Usually ships in 4-12 days

0

85

Ariens 21547306

BOLT.HEX.7/16-20 X 3.75 X GR.

$5.53

$

Usually ships in 4-12 days

0

90

Ariens 21546182

SCREW.3/8-16X1.SMGML.TAP/R.BLK

$7.37

$

In Stock, Qty 20+

0

91

Ariens 21546246

BUSHING.1.375OD.HEYCO 2210

$4.86

$

In Stock, only 1 left!

0

102

Ariens 21546180

SCREW.5/16-18X3/4.SMGML.TAP/BL
(Superseded to 21547490)

$6.65

$

Usually ships in 4-12 days

0
