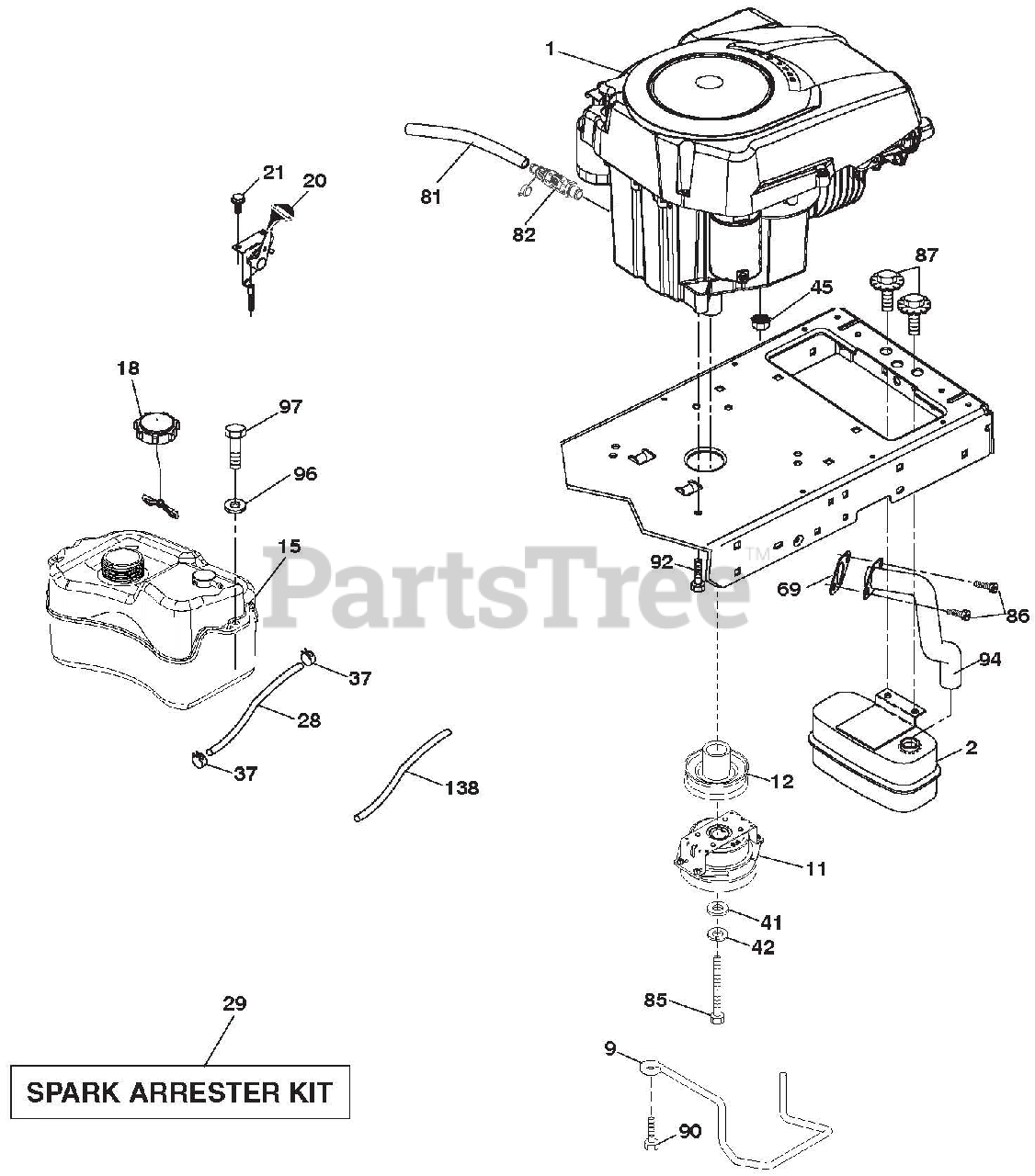

936100 (960460070-00) - Ariens 42" Lawn Tractor, Automatic Engine Parts Diagram

42" Lawn Tractor, Automatic

Engine Parts Diagram

  • Title

1

ENGINE KOHLER MODEL NO. SV601-3242

Note: (586148801) (ORDER PARTS FROM ENGINE MANUFACTURER.)

$

$

Not available

2

Ariens 21548330

MUFFLER
(Superseded to 21546269)

$52.99

$

In Stock, Qty 8

0

9

Ariens 21548399

KEEPER.BELT.ENGINE

$

$

Not available

11

Ariens 21548980

ELECT. CLUTCH

$409.99

$

Usually ships in 4-12 days

0

12

Ariens 21546604

PULLEY.ENGINE.TUFFTORQE.1"CRK.

$

$

Not available

15

Ariens 21547730

TANK.FUEL.2.5.GAL.
(Superseded to 21547650)

$

$

Not available

18

Ariens 21548118

CAP.FUEL
(Superseded to 21547731)

$38.99

$

Usually ships in 4-12 days

0

20

Ariens 21547796

CONTROL THROTTLE/CHOKE

$63.99

$

Usually ships in 4-12 days

0

21

Ariens 21546675

Screw

$7.49

$

Usually ships in 4-12 days

0

28

Ariens 21546571

LINE.FUEL.22"FRONT.EMIS.CA.LP

$

$

Not available

29

Ariens 21546090

KIT.SPARK ARRESTOR(392390 B&S)

Note: (392390 B&S)

$

$

Not available

37

Ariens 21546069

CLAMP.HOSE.BLK.

$7.99

$

Usually ships in 4-12 days

0

41

Ariens 21546077

WASHER.1-1/2 ODX15/32 IDX.250

$

$

Not available

42

Ariens 21546004

WASHER.LOCK.HVY HLCL.SPR.7/16
(Superseded to 21547501)

$3.99

$

Usually ships in 4-12 days

0

45

Ariens 21546779

Nut, Keps Hex 1/4-20 unc

$

$

Not available

69

Ariens 21546232

GASKET.KOHLER.SV.I.

$12.99

$

In Stock, Qty 20+

0

81

Ariens 21546117

TUBE.DRAIN.OIL.EASY

$9.99

$

In Stock, Qty 20+

0

82

Ariens 21547348

VALVE OIL DRAIN

$35.99

$

In Stock, Qty 20+

0

85

Ariens 21548981

BOLT

$

$

Not available

86

Ariens 21547307

SCREW SOCKET HEAD 5/16-18 X 1

$7.49

$

In Stock, only 2 left!

0

87

Ariens 21546190

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$

$

Not available

90

Ariens 21546182

SCREW.3/8-16X1.SMGML.TAP/R.BLK

$

$

Not available

92

Ariens 21546188

SCREW.3/8-16 X 1.SMGML.TAP/R

$

$

Not available

94

Ariens 21548567

TUBE.EXHAUST (ENGINE)

$65.99

$

Usually ships in 4-12 days

0

96

Ariens 21546277

WASHER.9/32 X 7/8 X 16GA.

$

$

Not available

97

Ariens 21546207

SCREW.HEXWSH.THDROL.1/4-20X3/4
(Superseded to 21548385)

$5.99

$

In Stock, only 1 left!

0

138

Ariens 21546660

PURGE.LINE.CARB

$

$

Not available
