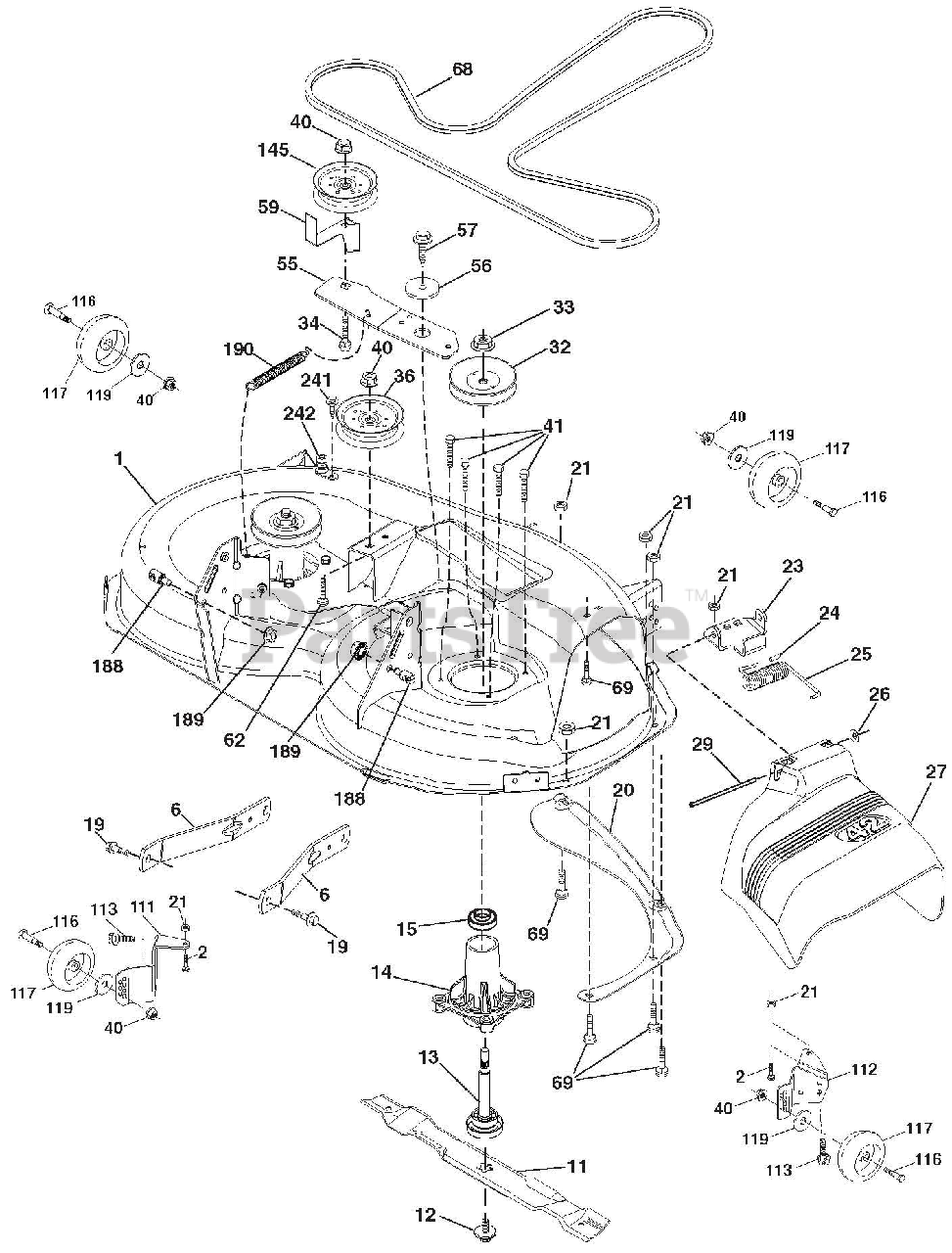

936100 (960460070-00) - Ariens 42" Lawn Tractor, Automatic > Parts Diagrams (12) > Mower Deck

  • Title
21547737

1

MOWER HOUSING

Part# 21547737

OEM Warranty Repair Part for Ariens

Not available

21547167

2

Bolt

Part# 21547167

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 4 to 10 business days

Your price: $1.67

21546347

6

ARM.SUSPENSION.MOWER.REAR.LD

Part# 21546347

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $11.17

21546095

11

BLADE.MOWER.42"HI LIFT PREMIUM

Part# 21546095

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $13.41

21549011

12

SCREW 7/16-20 X 1

Part# 21549011

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $6.70

21549009

13

SHAFT ASM

Part# 21549009 (Superseded to 21549012)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $36.88

21546238

14

HOUSING.MANDREL.4PT.SERVICE

Part# 21546238

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $36.88

21549010

15

BEARING

Part# 21549010 (Superseded to 21546046)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.93

21546411

19

BOLT.SHOULDER

Part# 21546411

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.58

21546144

20

BAFFLE.VORTEX.42.STD/HEAVY DTY

Part# 21546144

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 4 to 10 business days

Your price: $14.52

21546784

21

Nut, Hex, Crownlock 5/16-18

Part# 21546784

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.01

21546296

23

BRACKET.DEFLECTOR.38/42"2005

Part# 21546296

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.58

21546025

24

CAP.SLEEVE..80X.112.BLK.MOWER

Part# 21546025

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.34

21546416

25

SPRING.TORSION.DFL.38/42/46.GR

Part# 21546416

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $7.82

21546045

26

NUT.PUSH.PHOS.& OIL

Part# 21546045

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.23

21547728

27

SHIELD.DEFLECTOR.

Part# 21547728 (Superseded to 21546305)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $33.53

21546081

29

ROD.HINGE.42/46"

Part# 21546081

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 4 to 10 business days

Your price: $2.23

21546127

32

MANDREL.PULLEYS.42,44,50

Part# 21546127

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.93

21549012

32

MANDREL ASM

Part# 21549012

Note: (INCLUDES HOUSING (KEY#14), SHAFT ASSEMBLY (KEY#13), AND BEARING ONLY (KEY#15) - PULLEY/NUT/WASHER AND BLADE BOLT/WASHERS NOT INCLUDED)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $36.88

21546554

33

NUT.FLANGE.LOCK.TOP

Part# 21546554

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 4 to 10 business days

Your price: $4.46

21546765

34

BOLT.CARR.SH.3/8-16X1-1/2.GR5

Part# 21546765 (Superseded to 06224200)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

21546440

36

PULLEY.IDLER.4.50.RAW

Part# 21546440

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $16.76

21546790

40

Nut, Hex, Flangelock 3/8-16

Part# 21546790 (Superseded to 06500736)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

21548816

41

HEX HEAD BOLT

Part# 21548816

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.23

21547834

55

IDLER.ARM

Part# 21547834

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $6.70

21546482

56

SPACER.RETAINER

Part# 21546482

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $4.46

21546182

57

SCREW.3/8-16X1.SMGML.TAP/R.BLK

Part# 21546182

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.58

21546103

59

GUARD.TUV.IDLER

Part# 21546103

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $7.82

21546767

62

BOLT.RD.HD.SQ.NK.3/8-16UNC X 2

Part# 21546767 (Superseded to 06203200)

OEM Warranty Repair Part for Ariens

Not available

21547188

68

V-Belt, 42" Mower

Part# 21547188

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $36.88

21546770

69

BOLT.RDHD.SQNK.5/16-18 X 5/8

Part# 21546770

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.01

21547329

111

BRACKET WHEEL GAUGE LH

Part# 21547329

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $11.17

21547330

112

BRACKET WHEEL GAUGE RH

Part# 21547330

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

21546179

113

BOLT.5/16-18HEX.WHS.HD.LCKSERR

Part# 21546179

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.58

21547537

116

BOLD SHLD "A" 2.41 "B" 1.66

Part# 21547537 (Superseded to 21546741)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 4 to 10 business days

Your price: $2.23

21546267

117

WHEEL.GAGE.HALF.SPOKED

Part# 21546267

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

21546281

119

Washer 3/8 x 7/8 x 14 Ga.

Part# 21546281

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

21546308

145

PULLEY.IDLER 48"PRIMARY

Part# 21546308

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $16.76

21546343

188

STUD.FASTNER.W/'D'ANTI-ROTATIO

Part# 21546343

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $4.46

21546789

189

Nut, Lock Hex Flange 5/16-18 u

Part# 21546789 (Superseded to 06530400)

OEM Warranty Repair Part for Ariens

Not available

21547318

190

SPRING

Part# 21547318

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $7.82

21547128

241

Screw

Part# 21547128

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.58

21547345

242

PORT WASHOUT

Part# 21547345

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $6.70

21547347

- -

COUPLING QUICK CONNECT

Part# 21547347

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $6.70

21547729

- -

DECK.SVC.42"HP.E.4GWB.TEX.668

Part# 21547729

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $351.95
