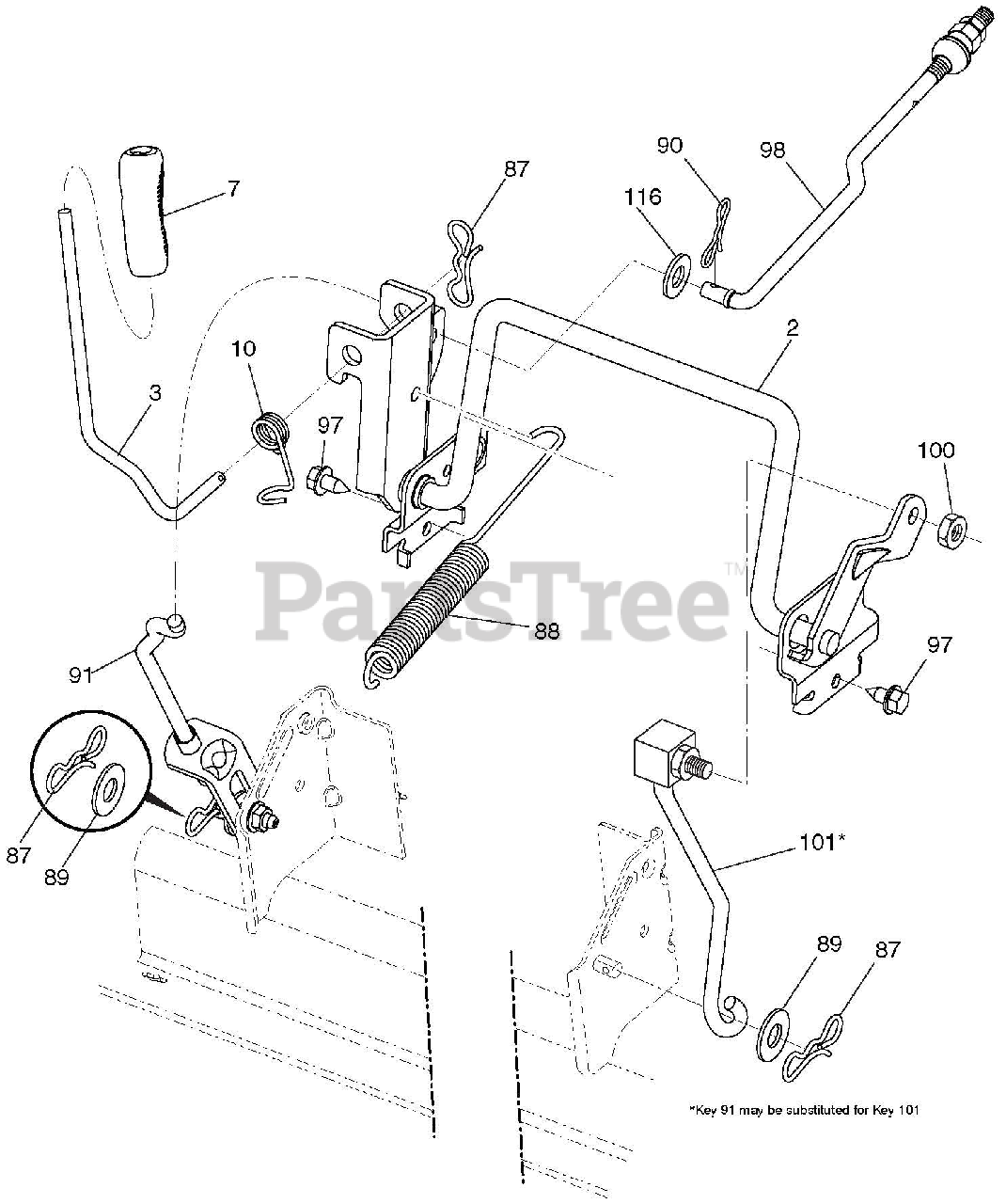

936100 (960460070-00) - Ariens 42" Lawn Tractor, Automatic Mower Lift Parts Diagram

42" Lawn Tractor, Automatic

Mower Lift Parts Diagram

  • Title
2

Ariens Part# 21547008

SHAFT ASM., LIFT
Usually ships in 1 day

$

$55.84

0

3

Ariens Part# 21548088

LEVER.LIFT.HANDLE.LT
Usually ships in 5 to 11 days

$

$40.24

0

7

Ariens Part# 21548049

GRIP LEVER 5625 LD BLACK 428
Usually ships in 1 day

$

$4.46

0

10

Ariens Part# 21546397

SPRING.TORSION.HANDLE.LIFT
Usually ships in 1 day

$

$4.46

0

87

Ariens Part# 21546322

PIN.COTTER.7/16.BOW TIE LOCK
Usually ships in 1 day

$

$2.23

0

88

Ariens Part# 21546638

SPRING.LIFT ASSIST
Usually ships in 1 day

$

$6.70

0

89

Ariens Part# 21546292

WASHER.CLEAR ZINC
Usually ships in 4 to 10 days

$

$4.46

0

90

Ariens Part# 21546321

PIN.COTTER.5/16.BOW TIE LOCK
Usually ships in 1 day

$

$2.23

0

91

Ariens Part# 21546344

LINK ASM.LIFT.LH.REAR
Usually ships in 4 to 10 days

$

$38.00

0

97

Ariens Part# 21546181

SCREW.HEXWSH THDR3/8-16X3/4.BL
Usually ships in 1 day

$

$3.34

0

98

Ariens Part# 21546360

LINK ASM.SUSP.FRONT.MWR.11
Usually ships in 4 to 10 days

$

$16.76

0

100

Ariens Part# 21546794

NUT.CENTERLOCK.3/8-16 UNC.
Usually ships in 1 day

$

$2.52

0

101

Ariens Part# 21546620

LINK ASM.LIFT.FIXED.38/42/46"
Usually ships in 4 to 10 days

$

$14.52

0

116

Ariens Part# 21549004

WASHER 15/32 X 15/16 X 16 GA.
Usually ships same day

Not available

$

$
