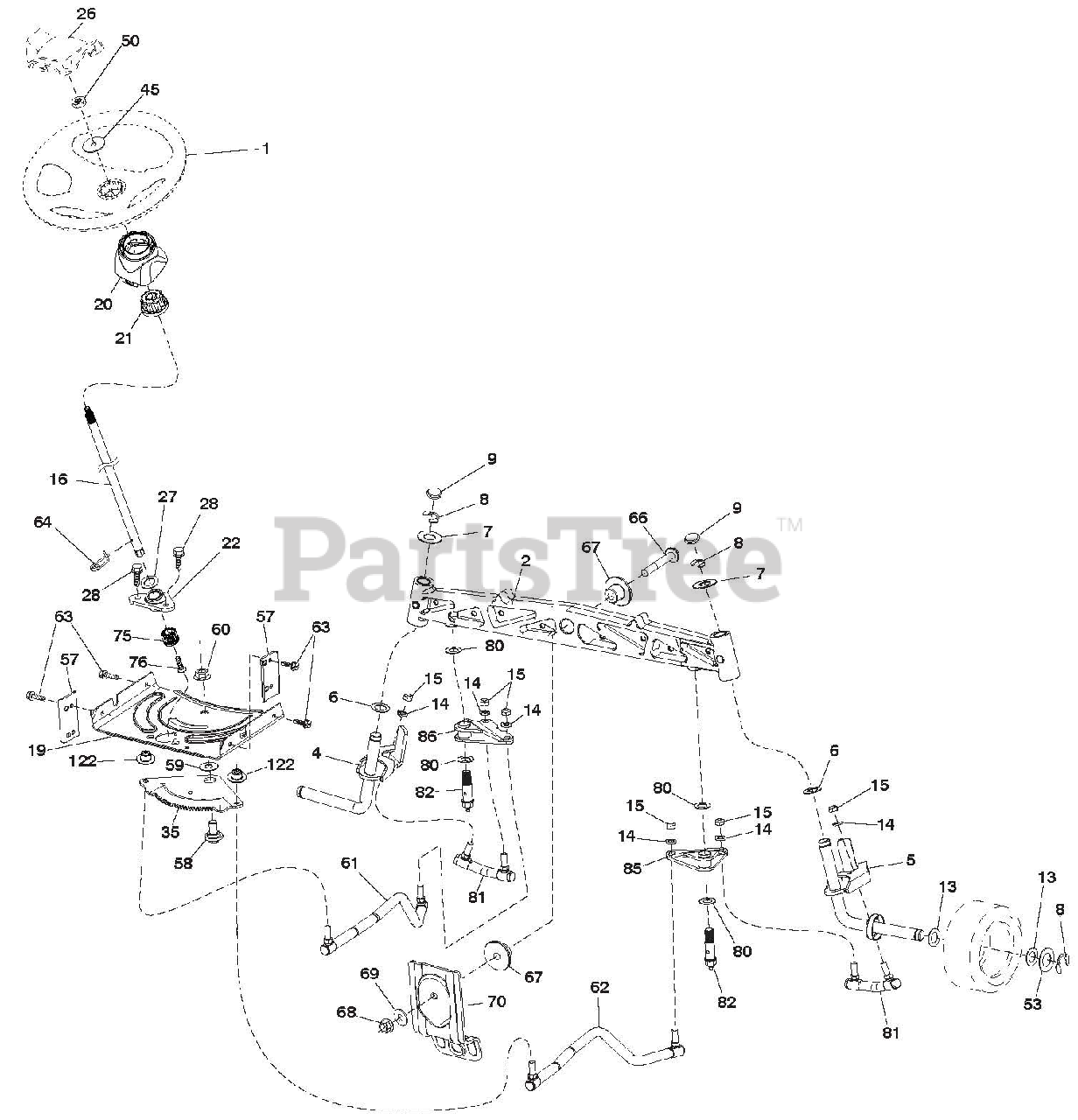

936100 (960460070-00) - Ariens 42" Lawn Tractor, Automatic Steering Parts Diagram

42" Lawn Tractor, Automatic

Steering Parts Diagram

  • Title
1

Ariens Part# 21547582

WHEEL STEERING
(Superseded to 21547398)
Usually ships in 1 day

$

$72.66

0

Usually ships in 5 to 11 days

$

$173.40

0

4
Usually ships in 5 to 11 days

$

$44.66

0

5
Usually ships in 5 to 11 days

$

$48.32

0

6

Ariens Part# 21547540

WAHSER THRUST .75 X 1.230
(Superseded to 21546750)
Usually ships in 1 day

$

$6.70

0

7

Ariens Part# 21546066

WASHER.25/32 X 1-5/8 X 16GA.
Usually ships in 1 day

$

$2.23

0

8

Ariens Part# 21546053

RING.KLIP.#T5304-75
Usually ships in 4 to 10 days

$

$2.23

0

9

Ariens Part# 21546064

CAP.SPINDLE.FR.TOP.BLK.
Usually ships in 1 day

$

$2.23

0

13

Ariens Part# 21546067

WASHER.25/32 X 1 1/4 X 16 GA.
Usually ships in 1 day

$

$2.23

0

14

Ariens Part# 21546003

Washer, Lock 3/8
(Superseded to 21546909)
Usually ships in 4 to 10 days

$

$1.67

0

15

Ariens Part# 21546782

NUT.CROWNLOCK.3/8-24
Usually ships in 1 day

$

$2.23

0

16

Ariens Part# 21548916

SHAFT.STEER
Usually ships in 1 day

$

$31.29

0

19

Ariens Part# 21546334

PLATE.STEER.DDL.NLT/NGT
Usually ships in 4 to 10 days

$

$16.76

0

20

Ariens Part# 21548063

BOOT.STEERING
Usually ships in 1 day

$

$4.42

0

21

Ariens Part# 21548917

ADAPTER.STEER
Usually ships in 1 day

$

$6.70

0

Usually ships in 1 day

$

$13.41

0

26

Ariens Part# 21547568

CAP WHEEL STEERING HRS/SRS BLK
Usually ships in 1 day

$

$6.70

0

27

Ariens Part# 21548936

WASHER 21/32 X 1 X 1 GA.
Usually ships in 5 to 11 days

$

$4.46

0

28

Ariens Part# 21546181

SCREW.HEXWSH THDR3/8-16X3/4.BL
Usually ships in 1 day

$

$3.34

0

35

Ariens Part# 21548949

GEAR SECTOR
Usually ships in 5 to 11 days

$

$27.95

0

Usually ships in 5 to 11 days

$

$3.30

0

50

Ariens Part# 21546790

Nut, Hex, Flangelock 3/8-16
(Superseded to 06500736)
Usually ships in 1 day

$

$1.85

0

53

Ariens Part# 21546272

WASHER.HARDEN..793 X 1.637X060
Usually ships in 5 to 11 days

$

$3.34

0

57

Ariens Part# 21546623

BRACKET.UPSTOP.TEX
Usually ships in 5 to 11 days

$

$3.75

0

58

Ariens Part# 21546339

BOLT.SHOULDER.SECTOR.PIVOT.CFM
Usually ships in 1 day

$

$6.70

0

59

Ariens Part# 21546340

WASHER.THRUST.SECTOR.STEER.NLT
Usually ships in 1 day

$

$5.58

0

60

Ariens Part# 21546797

NUT.FLANGE LOCK.5/8-11
(Superseded to 06500509)
Usually ships in 1 day

$

$3.30

0

61

Ariens Part# 21548944

DRAG LINK LH
Usually ships in 1 day

$

$35.72

0

62

Ariens Part# 21548945

DRAG LINK RH
Usually ships in 5 to 11 days

$

$31.25

0

63

Ariens Part# 21546180

SCREW.5/16-18X3/4.SMGML.TAP/BL
Usually ships in 1 day

$

$4.46

0

64

Ariens Part# 21546512

RETAINER.CLIP.SPRING.STEERING
Usually ships in 1 day

$

$4.46

0

66

Ariens Part# 21546754

BOLT.HEX.FGHD.7/16-14 X 3.SERR
Usually ships in 1 day

$

$4.46

0

67

Ariens Part# 21546336

BUSHING.PM.FRONT AXLE
Usually ships in 5 to 11 days

$

$4.13

0

68

Ariens Part# 21546791

NUT.LOCK.FLANGE.7/16-14.GR5
Usually ships in 1 day

$

$5.58

0

69

Ariens Part# 21546483

WASHER.1.5 X .505 X .118
Usually ships in 5 to 11 days

$

$4.46

0

Usually ships in 5 to 11 days

$

$9.78

0

Usually ships in 1 day

$

$6.65

0

Usually ships in 1 day

$

$3.30

0

Usually ships in 1 day

$

$4.86

0

81

Ariens Part# 21548951

SUB ASM LINK
Usually ships in 5 to 11 days

$

$15.60

0

82

Ariens Part# 21548952

SUB ASM PIVOT BOLT
Usually ships in 1 day

$

$6.09

0

85

Ariens Part# 21548953

SUB ASM PIVOT RH
Usually ships in 5 to 11 days

$

$43.99

0

86

Ariens Part# 21548954

SUB ASM PIVOT LH
Usually ships in 5 to 11 days

$

$33.48

0

122

Ariens Part# 21547948

CAP GEAR SECTOR
Usually ships in 5 to 11 days

$

$4.46
