936301 (LT 12 G) - Ariens 32" Lawn Tractor, 12hp Briggs & Stratton, Gear (SN: 000101 & Above) Clutch & Brake - Gear Parts Diagram

32" Lawn Tractor, 12hp Briggs & Stratton, Gear

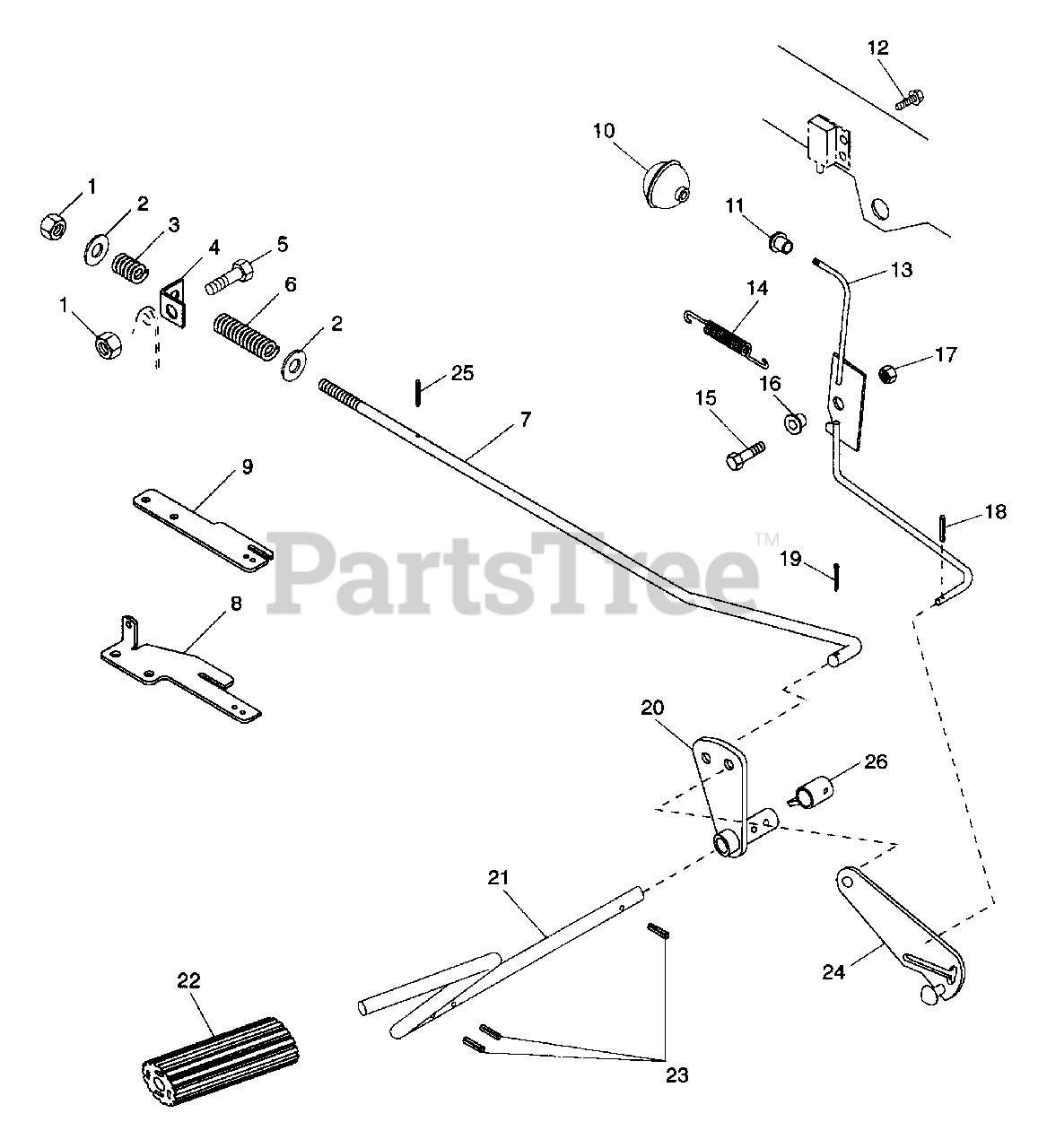

Clutch & Brake - Gear Parts Diagram

  • Title

1

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

2

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 08327000

SG-COMP .125X.78X1.00 YWZ

$15.99

$

In Stock, only 4 left!

0

4

Ariens 03624600

BRACKET

$9.49

$

Usually ships in 4-12 days

0

5

Ariens 05915400

BLT-HEX .38-16X.75 PL GR5
(Superseded to 05959400)

$1.49

$

In Stock, only 2 left!

0

6

Ariens 08310400

SG-COMP .048X.59X2.06 WLD9

$14.99

$

Usually ships in 4-12 days

0

7

Ariens 03638000

ROD- BRAKE (5SPD)

Note: (Used Only On Model(s): 006,301,302).

$

$

Not available

Ariens 03637900

ROD- BRAKE (6SPD)

Note: (Used Only On Model(s): 009).

$

$

Not available

8

Ariens 03566200

BRAKE GUIDE

Note: (Used Only On Model(s): 006,301,302).

$

$

Not available

9

Ariens 03639900

BRAKE GUIDE

Note: (Used Only On Model(s): 009).

$

$

Not available

10

Ariens 07512400

PUSH/PULL CONTROL KNOB

$9.99

$

Usually ships in 4-12 days

0

11

Ariens 07505000

SNAP BUSHING-.437

$

$

Not available

12

Ariens 07404500

SCR-TAP 12-24X.50 HWH PL TR
(Superseded to 07411900)

$2.49

$

In Stock, Qty 12

0

13

Ariens 03637300

LEVER, PARKING BRAKE

$

$

Not available

14

Ariens 08326600

SG-TENS .051X.44X4.38 WLD 7.5

$

$

Not available

15

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 12

0

16

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, Qty 16

0

17

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 05801000

PIN-ROLL .093X.50

$0.99

$

In Stock, only 1 left!

0

19

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 5

0

20

Ariens 03637600

ARM & HUB

$

$

Not available

21

Ariens 03637800

PEDAL

$

$

Not available

22

Ariens 07521200

COVER- PEDAL

$

$

Not available

23

Ariens 05804500

PIN-GRV .188X1.25 TP A

$10.99

$

In Stock, Qty 7

0

24

Ariens 03637400

PLATE, PIVOT

$

$

Not available

25

Ariens 05803400

PIN-ROLL .125X.75

$0.99

$

In Stock, Qty 9

0

26

Ariens 03640000

LEVER - BRAKE SWITCH

$

$

Not available
