936301 (LT 12 G) - Ariens 32" Lawn Tractor, 12hp Briggs & Stratton, Gear (SN: 000101 & Above) Rotary Mower 32" Parts Diagram

32" Lawn Tractor, 12hp Briggs & Stratton, Gear

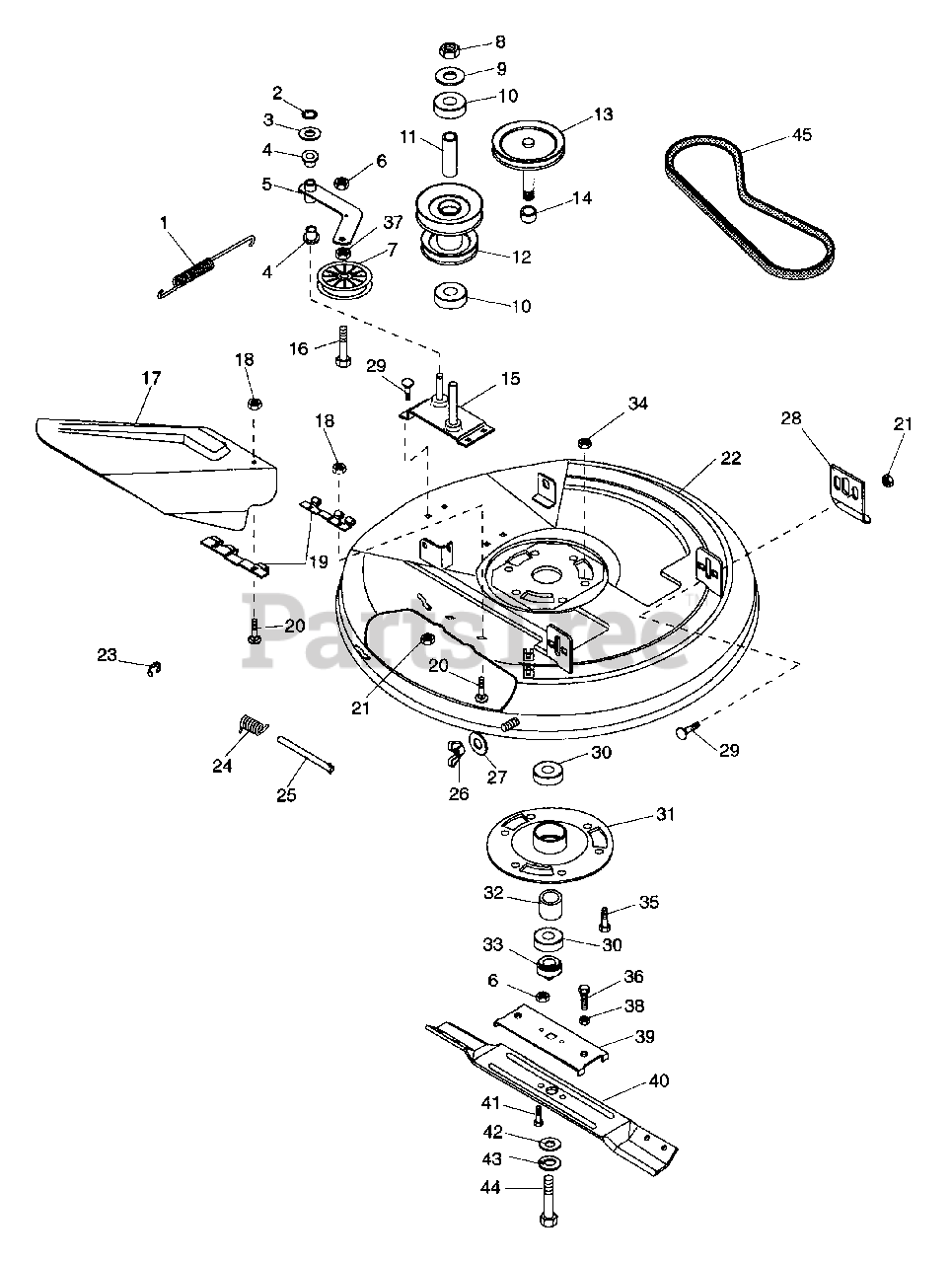

Rotary Mower 32" Parts Diagram

  • Title

1

Ariens 08329000

SG-TENS .113X.812X7.00

$20.99

$

In Stock, only 1 left!

0

2

Ariens 05710200

RG-RTNG-EXT .500X.042 (E)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 06405600

WSHR-FL-STL .505X.880X.072 PL
(Superseded to 06436600)

$3.99

$

In Stock, only 2 left!

0

4

Ariens 05506300

BSHG-FLG .500X.625X.187X.750FD

$3.49

$

In Stock, only 4 left!

0

5

Ariens 03623800

IDLER ARM
(Superseded to 03623851)

$60.99

$

Usually ships in 4-12 days

0

6

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.49

$

Usually ships in 4-12 days

0

7

Ariens 07311100

IDLER-FLAT 2.75 X .38 DAYCO

$39.99

$

In Stock, only 3 left!

0

8

Ariens 06507700

NUT-LK-NYL.625-18 PL
(Superseded to 06530300)

$3.99

$

In Stock, Qty 11

0

9

Ariens 06421200

WSHR-FL-STL .640X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 05403900

BRG-BALL .625X1.375X.44
(Superseded to 05435100)

$14.99

$

In Stock, Qty 19

0

11

Ariens 03624000

SPACER .647X.812X1.780

$

$

Not available

12

Ariens 03572000

JACKSHAFT

$

$

Not available

13

Ariens 03623900

MOWER SHEAVE 32"

$34.99

$

Usually ships in 4-12 days

0

14

Ariens 03636100

SPACER .753X1.000X.660

$

$

Not available

15

Ariens 03624100

MOUNT PLATE 32"

$68.99

$

Usually ships in 4-12 days

0

16

Ariens 05902700

BLT-HEX .38-16X1.75 PL GR2
(Superseded to 05958500)

$1.49

$

In Stock, only 4 left!

0

17

Ariens 53508200

32" DEFLECTOR W/DECAL

$

$

Not available

18

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 02709500

HINGE PLATE
(Superseded to 02709551)

$27.99

$

Usually ships in 4-12 days

0

20

Ariens 06205300

BLT-RDHDSQNK .25-20X.50 SHT PL
(Superseded to 06220600)

$0.99

$

In Stock, Qty 7

0

21

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, only 4 left!

0

22

Ariens 53601900

32" MOWER DECK W/DECALS

$

$

Not available

22

Ariens 53602000

32" MOWER DECK ASSY COMPLETE

$

$

Not available

23

Ariens 05706300

RG-RTNG-EXT .312X.025

$0.99

$

Usually ships in 4-12 days

0

24

Ariens 08314500

SG-TORS .090X.37X.63

$14.99

$

In Stock, only 2 left!

0

25

Ariens 03624200

PIN

$51.99

$

In Stock, only 1 left!

0

26

Ariens 06511300

NUT-WING W/INSERT .312 - 18
(Superseded to 06537100)

$5.99

$

In Stock, only 1 left!

0

27

Ariens 06409000

WSHR-FL-STL .328X.875X.062 PL
(Superseded to 06439400)

$3.99

$

Usually ships in 4-12 days

0

28

Ariens 03581700

MOWER ADJUSTMENT TAB

$

$

Not available

29

Ariens 06204100

BLT-RDHDSQNK.31-18X.75GR5SHTPL
(Superseded to 06220800)

$2.49

$

In Stock, Qty 9

0

30

Ariens 05412000

BRG-BALL .750X1.781X.61

$13.99

$

In Stock, Qty 20+

0

31

Ariens 03633700

SPINDLE HOUSING

$

$

Not available

32

Ariens 02526400

SPACER .753X1.000X1.140

$26.99

$

Usually ships in 4-12 days

0

33

Ariens 02746900

HUB

$59.99

$

Usually ships in 4-12 days

0

34

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

35

Ariens 05915400

BLT-HEX .38-16X.75 PL GR5
(Superseded to 05959400)

$1.49

$

In Stock, only 2 left!

0

36

Ariens 05922900

BLT-HEX .38-24X1.25 PL GR5
(Superseded to 05960700)

$2.99

$

Usually ships in 4-12 days

0

37

Ariens 06500100

NUT-JAM .375-16 PL
(Superseded to 06500910)

$0.99

$

In Stock, Qty 8

0

38

Ariens 06518800

NUT JAM .375-24 PL
(Superseded to 06534700)

$2.49

$

In Stock, Qty 5

0

39

Ariens 02747100

BLADE TRAY WELDMT

$34.99

$

Usually ships in 4-12 days

0

40

Ariens 02747000

32" BLADE

$45.99

$

In Stock, only 1 left!

0

41

Ariens 05914500

BLT-HEX .38-16X1.00 PL GR5
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

42

Ariens 06408300

WSHR-FL-STL .505X1.140X.250

$6.99

$

Usually ships in 4-12 days

0

43

Ariens 06300500

WSHR-LK .438X.133 HVY
(Superseded to 06310700)

$2.99

$

Usually ships in 4-12 days

0

44

Ariens 05927700

BLT-HEX .44-20X1.75 PL GR5
(Superseded to 05967500)

$3.49

$

Usually ships in 4-12 days

0

45

Ariens 07208900

V-BELT, 4L-WRAPPED

$26.99

$

Usually ships in 4-12 days

0
