936305 (1440 G) - Ariens Sierra 40" Yard Tractor, 14hp Briggs & Stratton, Gear (SN: 000101 - 000300) Clutch & Brake - Gear Parts Diagram

Sierra 40" Yard Tractor, 14hp Briggs & Stratton, Gear

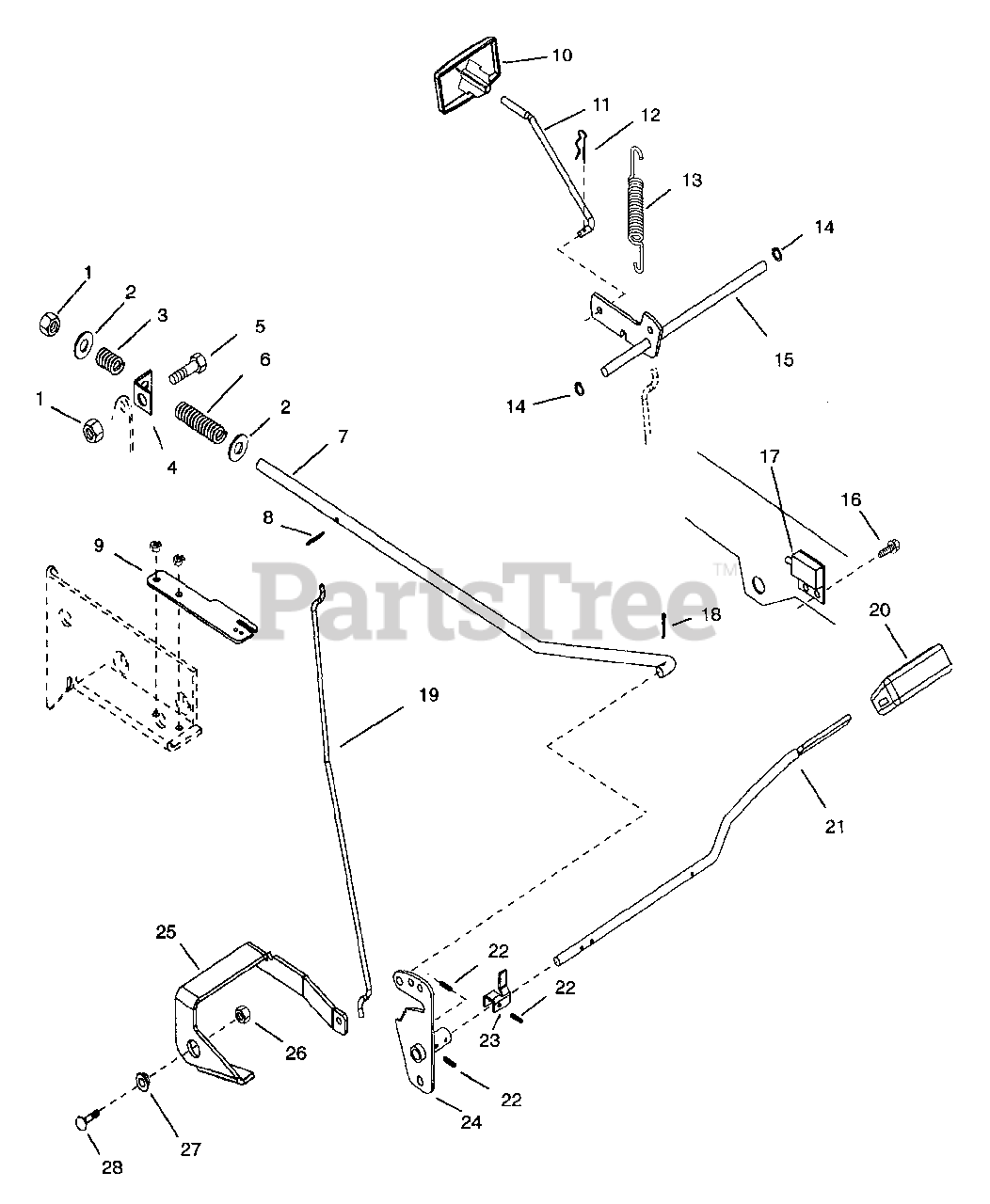

Clutch & Brake - Gear Parts Diagram

  • Title

1

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

2

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 08327000

SG-COMP .125X.78X1.00 YWZ

$15.99

$

In Stock, Qty 5

0

4

Ariens 03624600

BRACKET

$9.49

$

Usually ships in 4-12 days

0

5

Ariens 05915400

BLT-HEX .38-16X.75 PL GR5
(Superseded to 05959400)

$1.49

$

In Stock, only 2 left!

0

6

Ariens 08310400

SG-COMP .048X.59X2.06 WLD9

$14.99

$

Usually ships in 4-12 days

0

7

Ariens 03647500

ROD - BRAKE
(Superseded to 03667900)

$

$

Not available

8

Ariens 05803400

PIN-ROLL .125X.75

$0.99

$

In Stock, Qty 9

0

9

Ariens 03639900

BRAKE GUIDE

$

$

Not available

10

Ariens 03652400

KNOB- PARK BRAKE
(Superseded to 03652459)

$

$

Not available

11

Ariens 03357400

ROD, PARKING BRAKE

$28.99

$

Usually ships in 4-12 days

0

12

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 10

0

13

Ariens 08325200

SG-TENS .051X.60X2.25 WLD 7.0

$5.99

$

Usually ships in 4-12 days

0

14

Ariens 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 17

0

15

Ariens 03357300

BELLCRANK-PARKING BRAKE
(Superseded to 03357351)

$

$

Not available

16

Ariens 07404500

SCR-TAP 12-24X.50 HWH PL TR
(Superseded to 07411900)

$2.49

$

In Stock, Qty 12

0

17

Ariens 03657100

SWITCH- SINGLE POLE N.O.

$9.49

$

In Stock, Qty 8

0

18

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 5

0

19

Ariens 03357200

ROD, PARKING BRAKE

$

$

Not available

20

Ariens 07523600

COVER - PEDAL - BRAKE

$

$

Not available

21

Ariens 03651000

PEDAL - BRAKE

$

$

Not available

22

Ariens 05804500

PIN-GRV .188X1.25 TP A

$10.99

$

In Stock, Qty 7

0

23

Ariens 03650500

LEVER - BRAKE SWITCH

$

$

Not available

24

Ariens 03654800

ARM & HUB - BRAKE
(Superseded to 53605700)

$

$

Not available

25

Ariens 03357100

LEVER, PARKING BRAKE

$18.99

$

Usually ships in 4-12 days

0

26

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, Qty 16

0

28

Ariens 06204100

BLT-RDHDSQNK.31-18X.75GR5SHTPL
(Superseded to 06220800)

$2.49

$

In Stock, Qty 9

0
