936306 (1440 H) - Ariens Sierra 40" Yard Tractor, 14hp Briggs & Stratton, Hydro (SN: 000101 - 000300) Clutch & Brake - Hydro Parts Diagram

Sierra 40" Yard Tractor, 14hp Briggs & Stratton, Hydro

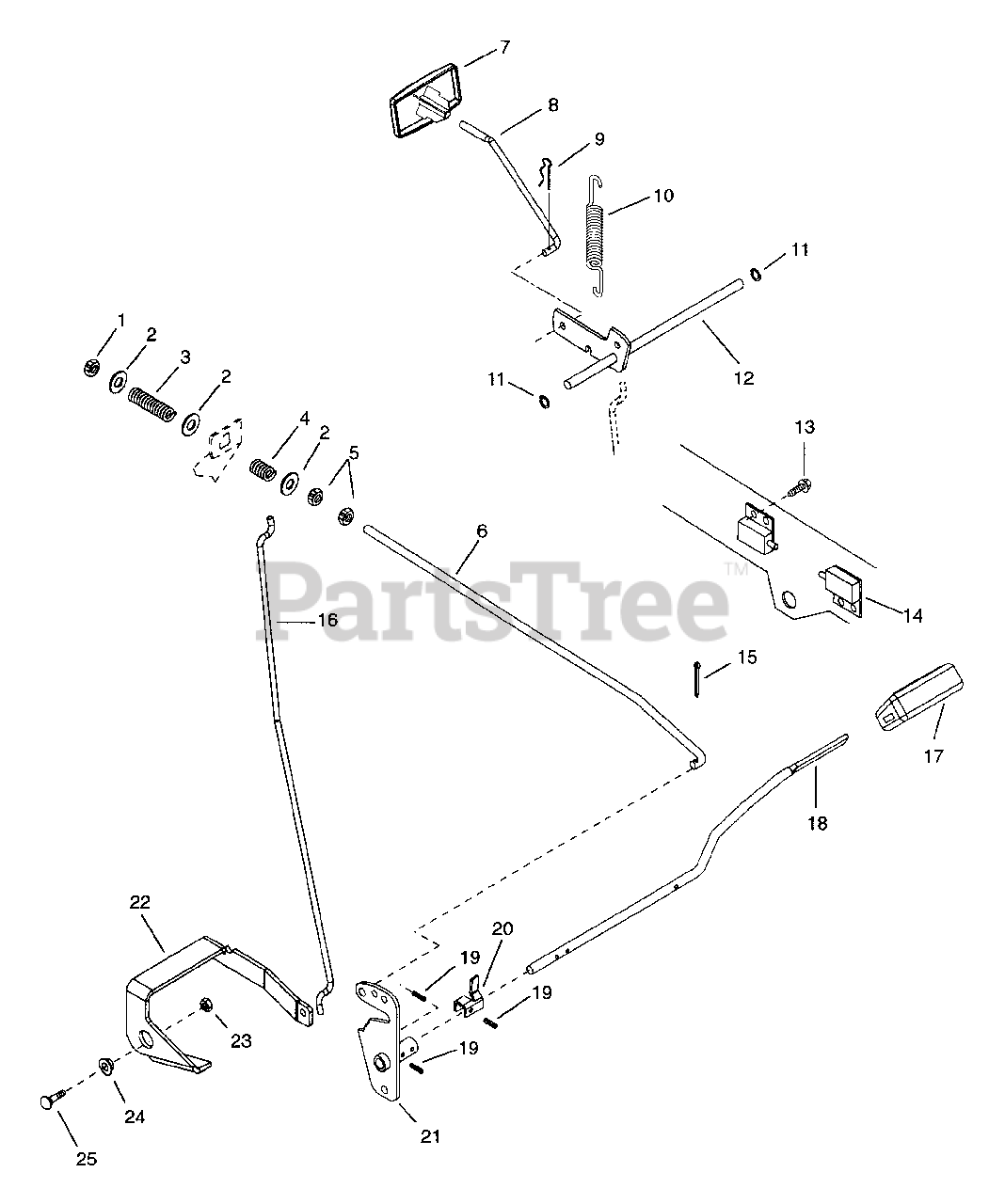

Clutch & Brake - Hydro Parts Diagram

  • Title
1

Ariens 06506000

NUT-LK-JAM-CTR .375-16 PL
(Superseded to 06537200)

$1.96

$

In Stock, Qty 5

0

2

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$2.52

$

In Stock, Qty 20+

0

3

Ariens 08310400

SG-COMP .048X.59X2.06 WLD9

$14.48

$

Usually ships in 4-12 days

0

4

Ariens 08327000

SG-COMP .125X.78X1.00 YWZ

$12.24

$

In Stock, Qty 7

0

5

Ariens 06500100

NUT-JAM .375-16 PL
(Superseded to 06500910)

$1.96

$

In Stock, Qty 5

0

6

Ariens 03647700

ROD - BRAKE
(Superseded to 03666700)

$

$

Not available

7

Ariens 03652400

KNOB- PARK BRAKE
(Superseded to 03652459)

$

$

Not available

8

Ariens 03357400

ROD, PARKING BRAKE

$27.89

$

Usually ships in 4-12 days

0

9

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$1.96

$

In Stock, only 4 left!

0

10

Ariens 08325200

SG-TENS .051X.60X2.25 WLD 7.0

$5.53

$

In Stock, only 1 left!

0

11

Ariens 05717600

RG-RTNG-EXT .250X.010

$1.96

$

In Stock, Qty 19

0

12

Ariens 03357300

BELLCRANK-PARKING BRAKE
(Superseded to 03357351)

$

$

Not available

13

Ariens 07404500

SCR-TAP 12-24X.50 HWH PL TR
(Superseded to 07411900)

$1.68

$

Usually ships in 4-12 days

0

14

Ariens 03657100

SWITCH- SINGLE POLE N.O.

$9.45

$

In Stock, only 2 left!

0

15

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$1.96

$

In Stock, Qty 11

0

16

Ariens 03357200

ROD, PARKING BRAKE

$

$

Not available

17

Ariens 07523600

COVER - PEDAL - BRAKE

$33.48

$

Usually ships in 4-12 days

0

18

Ariens 03651000

PEDAL - BRAKE

$

$

Not available

19

Ariens 05804500

PIN-GRV .188X1.25 TP A

$8.89

$

In Stock, only 4 left!

0

20

Ariens 03650500

LEVER - BRAKE SWITCH

$

$

Not available

21

Ariens 03654800

ARM & HUB - BRAKE
(Superseded to 53605700)

$

$

Not available

22

Ariens 03357100

LEVER, PARKING BRAKE

$16.16

$

Usually ships in 4-12 days

0

23

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$2.52

$

In Stock, Qty 20+

0

24

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$3.52

$

In Stock, only 2 left!

0

25

Ariens 06204100

BLT-RDHDSQNK.31-18X.75GR5SHTPL
(Superseded to 06220800)

$2.80

$

In Stock, Qty 20+

0
