936315 (YT 1842) - Ariens 42" Yard Tractor, 18hp Briggs & Stratton, Hydro (SN: 000101 & Above) 42" Mower Deck (Part 2) Parts Diagram

42" Yard Tractor, 18hp Briggs & Stratton, Hydro

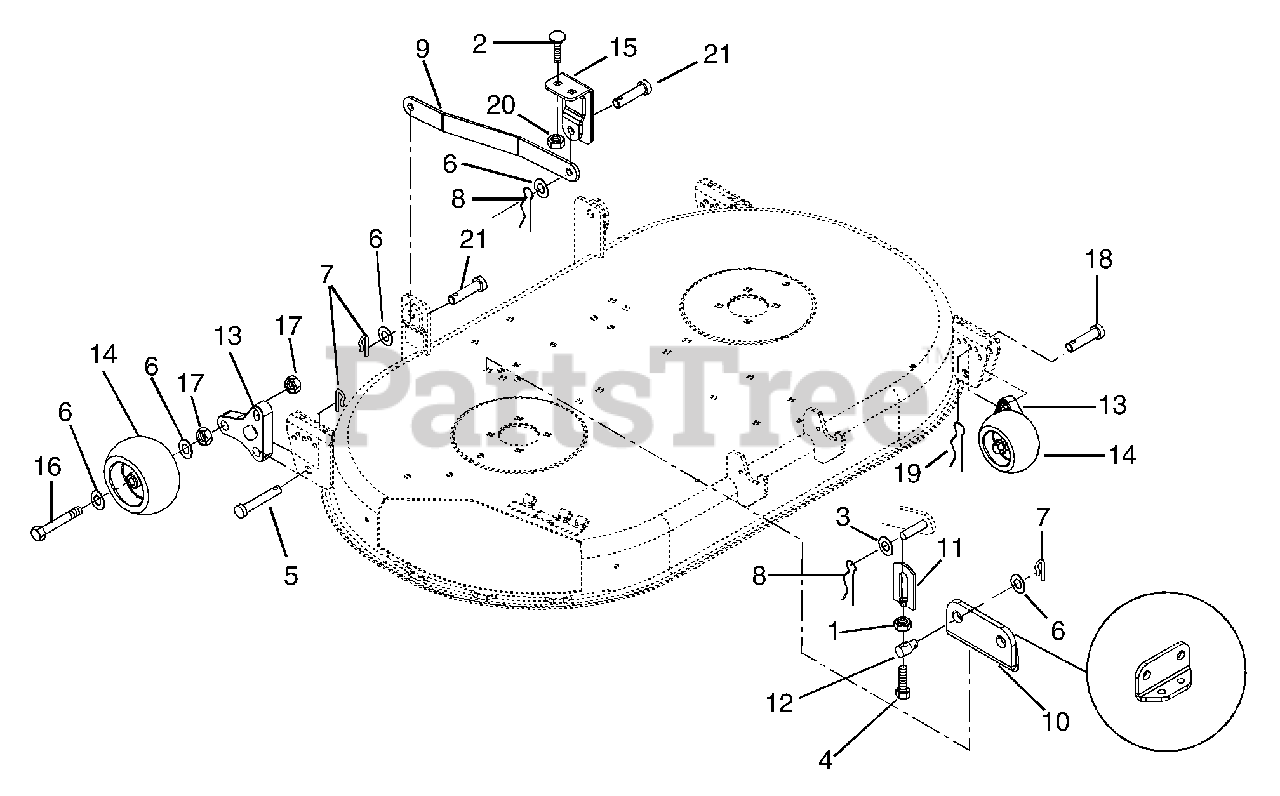

42" Mower Deck (Part 2) Parts Diagram

  • Title

1

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

2

Ariens 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.99

$

In Stock, only 4 left!

0

3

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 12

0

4

Ariens 05943100

BLT-HEX .38-16X2.50 FTH YWZC

$3.99

$

In Stock, only 3 left!

0

5

Ariens 06816300

PIN-CLEV .50X1.38 YWZC

$13.99

$

In Stock, only 2 left!

0

6

Ariens 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

In Stock, Qty 20+

0

7

Ariens 06944800

CLIP, SPRING

$1.49

$

In Stock, Qty 6

0

8

Ariens 06711900

PIN-HAIR-EXT .12X.31X2.37 YWZC

$3.49

$

In Stock, only 2 left!

0

9

Ariens 03681251

LINK, LIFT (SIERRA)

$

$

Not available

10

Ariens 03681551

BRACKET, LIFT

$

$

Not available

11

Ariens 03682200

WELDMENT, ADJUSTMENT LINK
(Superseded to 03688300)

$

$

Not available

12

Ariens 01582300

TRUNNION

$46.99

$

Usually ships in 4-12 days

0

13

Ariens 01585100

BRACKET, ROLLER ADJUST.

$

$

Not available

14

Ariens 03471700

WHEEL 5 X 3
(Superseded to 03905600)

$17.99

$

In Stock, Qty 20+

0

15

Ariens 01583951

WELDMENT, DECK STOP BRACKET

$

$

Not available

16

Ariens 05961900

@BLT-HEX .50-13X4.00 GR5 YWZC
(Superseded to 05901734)

$3.99

$

Usually ships in 4-12 days

0

17

Ariens 06519700

NUT-LK-CTR-JAM .50-13 YWZC(ND)

$2.99

$

In Stock, only 3 left!

0

18

Ariens 06816200

PIN-CLEV .31X1.38 YWZC

$

$

Not available

19

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.99

$

In Stock, only 1 left!

0

20

Ariens 06535800

@NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

21

Ariens 06816400

PIN-CLEV .50X1.00 YWZC

$

$

Not available
