936319 (YT 1742) - Ariens 42" Yard Tractor, 17hp Briggs & Stratton, Hydro (SN: 000101 & Above) 42" Mower Deck (Part 1) Parts Diagram

42" Yard Tractor, 17hp Briggs & Stratton, Hydro

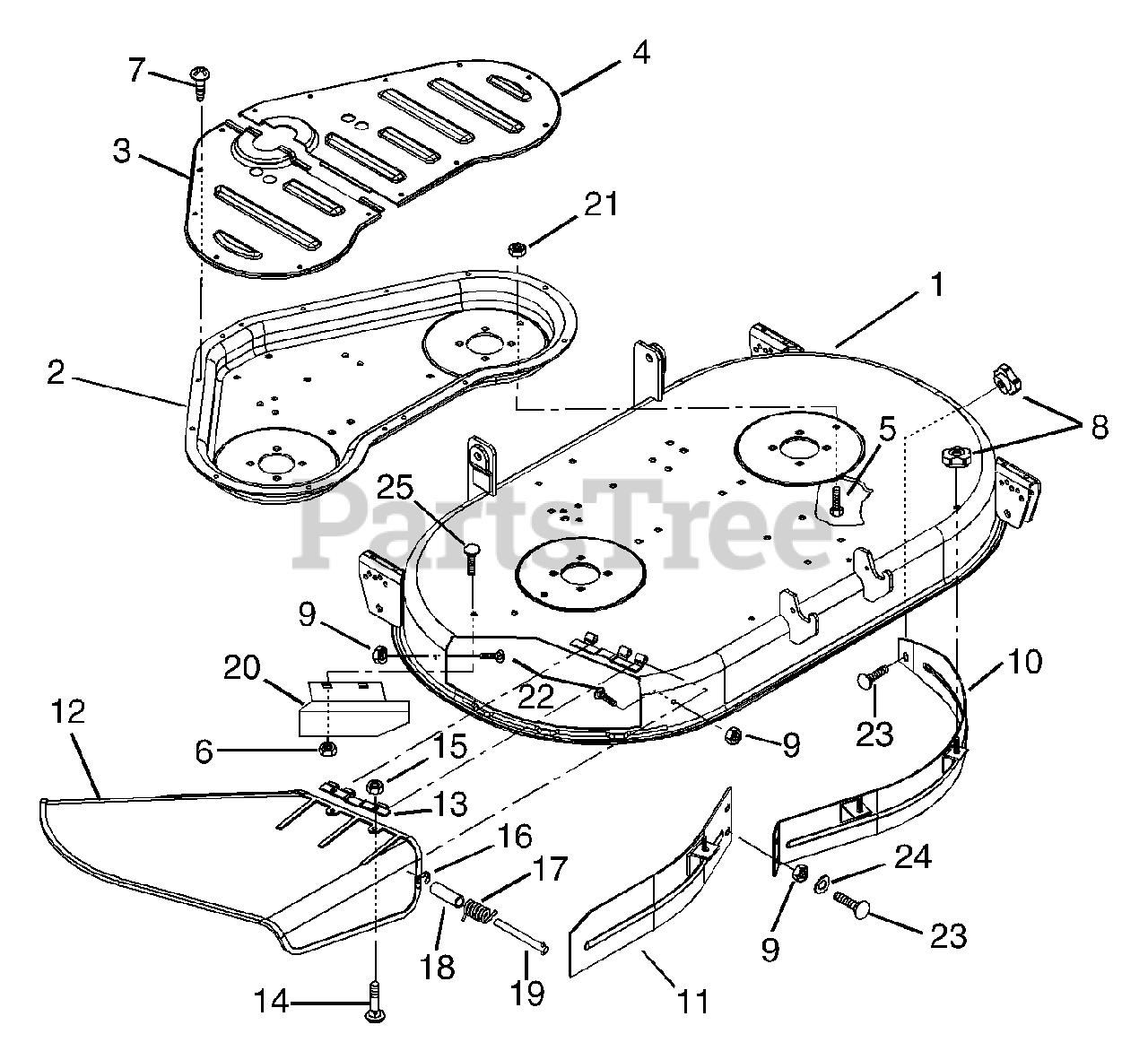

42" Mower Deck (Part 1) Parts Diagram

  • Title

1

Ariens 53608500

MWR, 42" SIERRA W/DECALS

$

$

Not available

Ariens 53608700

MWR, 42" SIERRA ASS'Y COMPLETE
(Superseded to 53611000)

$

$

Not available

2

Ariens 01584251

REINFORCEMENT, DECK
(Superseded to 01565651)

$

$

Not available

3

Ariens 03681900

COVER, PLATE 3 RIBS

$

$

Not available

4

Ariens 03682000

COVER, PLATE 5 RIBS

$

$

Not available

5

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 07532700

KNOB
(Superseded to 06543100)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 01584351

WELDMENT, BAFFLE UPPER LH

$62.99

$

Usually ships in 4-12 days

0

11

Ariens 01584451

WELDMENT, BAFFLE UPPER RH

$90.99

$

Usually ships in 4-12 days

0

12

Ariens 01585500

DEFLECTOR, CHUTE

$78.99

$

In Stock, Qty 5

0

13

Ariens 02709551

HINGE PLATE

$27.99

$

Usually ships in 4-12 days

0

14

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 17

0

16

Ariens 05706300

RG-RTNG-EXT .312X.025

$0.99

$

Usually ships in 4-12 days

0

17

Ariens 08307200

SG-TORS .095X.50X 1.0

$20.99

$

Usually ships in 4-12 days

0

18

Ariens 02202900

BSHG-SLV .334 X .502 X 1.437

$5.99

$

In Stock, Qty 6

0

19

Ariens 03624200

PIN

$51.99

$

In Stock, only 1 left!

0

20

Ariens 01582651

DEFLECTOR (BAFFLE)

$25.99

$

Usually ships in 4-12 days

0

21

Ariens 06535800

@NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

22

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

23

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 15

0

24

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

25

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0
