936320 (YT 1742) - Ariens 42" Yard Tractor, 17hp Briggs & Stratton, Hydro (SN: 000101 & Above) 42" Mower Brackets And Rollers Parts Diagram

42" Yard Tractor, 17hp Briggs & Stratton, Hydro

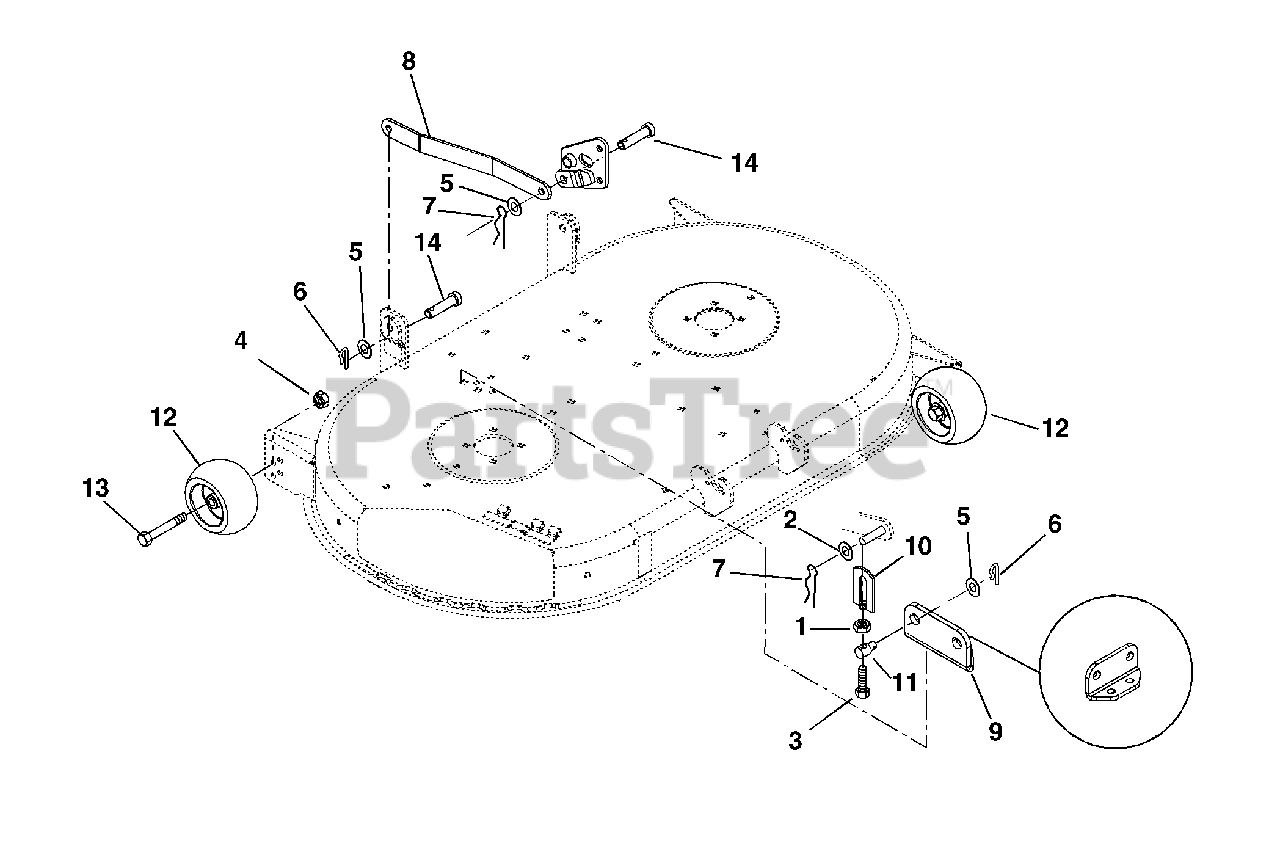

42" Mower Brackets And Rollers Parts Diagram

  • Title

1

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

2

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

3

Ariens 05943100

BLT-HEX .38-16X2.50 FTH YWZC

$3.99

$

In Stock, only 3 left!

0

4

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

In Stock, Qty 20+

0

6

Ariens 06944800

CLIP, SPRING

$1.49

$

In Stock, Qty 6

0

7

Ariens 06711900

PIN-HAIR-EXT .12X.31X2.37 YWZC

$3.49

$

In Stock, only 2 left!

0

8

Ariens 03681251

LINK, LIFT (SIERRA)

$

$

Not available

9

Ariens 03681551

BRACKET, LIFT

$

$

Not available

10

Ariens 01563300

WELDMENT, ADJUSTMENT LINK

$52.99

$

Usually ships in 4-12 days

0

11

Ariens 01582300

TRUNNION

$46.99

$

Usually ships in 4-12 days

0

12

Ariens 03471700

WHEEL 5 X 3
(Superseded to 03905600)

$17.99

$

In Stock, Qty 20+

0

13

Ariens 07056800

BLT-SHLDR .38-16X2.50 HWH G5

$7.49

$

In Stock, Qty 20+

0

14

Ariens 06816400

PIN-CLEV .50X1.00 YWZC

$

$

Not available
