936330 (YT 1742) - Ariens 42" Yard Tractor, 17hp Briggs & Stratton, Hydro (SN: 000101 & Above) Hydro Transaxle Parts Diagram

42" Yard Tractor, 17hp Briggs & Stratton, Hydro

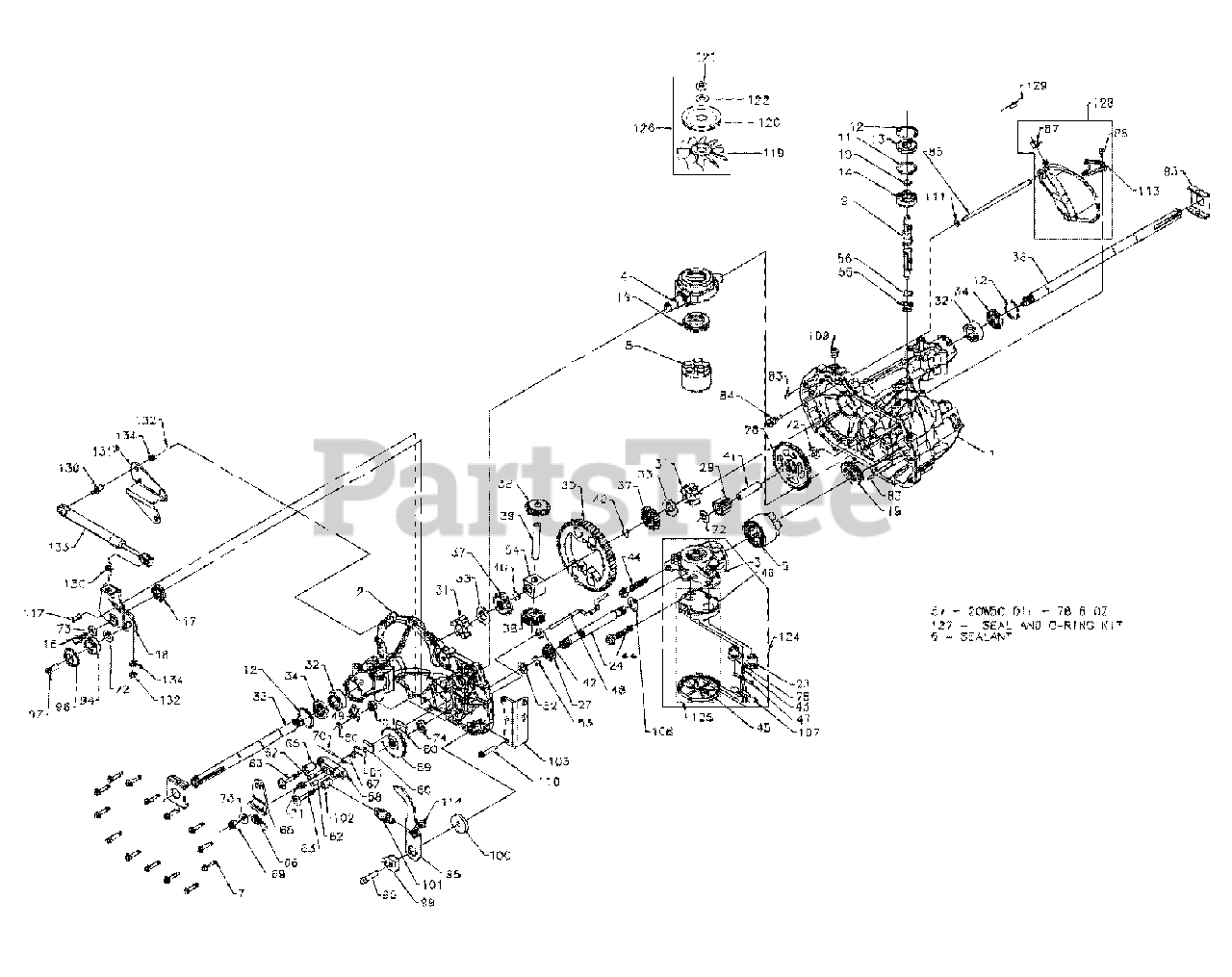

Hydro Transaxle Parts Diagram

  • Title

1

Ariens 70467

Main Housing, Assembly

$

$

Not available

2

Ariens 70483

Side Housing, Assembly

$

$

Not available

3

Ariens 70477

Center Section, Assembly

$

$

Not available

4

Ariens 51048

Swashplate, trunnion Machined

$

$

Not available

5

Ariens 70331

Block, Assembly

$

$

Not available

6

Ariens 50928

Sealant

$

$

Not available

7

Ariens 51190

Hex Flange Screw .25-20 x 1.25

$

$

Not available

9

Ariens 51062

Shaft, Input

$

$

Not available

10

Ariens 2000022

Ring, Retaining

$

$

Not available

11

Ariens 50581

Spacer

$

$

Not available

12

Ariens 50329

Ring, Retaining

$

$

Not available

13

Ariens 51161

Seal, Lip .67 x 1.58 x .276

$

$

Not available

14

Ariens 50315

Ball Bearing 17MM I.D. x 40MM O.D. 12MM

$

$

Not available

16

Ariens 51064

Hex Flange Head Screw .313-24 x .75

$

$

Not available

17

Ariens 51140

Lip Seal .18 x .32 x 7

$

$

Not available

18

Ariens 51420

Arm Control

$

$

Not available

19

Ariens 50551

Bearing , Thrust .30 x .52 x .13

$

$

Not available

23

Ariens 51207

Washer, Check Plug Assembly

$

$

Not available

24

Ariens 50966

Shaft, Motor

$

$

Not available

27

Ariens 51130

Gear, Pinnion 13T

$

$

Not available

28

Ariens 51129

10T/48T Gear

$

$

Not available

29

Ariens 51043

Gear, 10T Jackshaft

$

$

Not available

30

Ariens 51044

60T Bull Gear

$

$

Not available

31

Ariens 51088

Sleeve Bearing .75 x 1.75 x .825

$

$

Not available

32

Ariens 51089

Sleave Bearing (Outboard) .75 x 1.575 x .625

Note: (Outboard) .75 x 1.575 x .625

$

$

Not available

33

Ariens 44875

Washer .75 x 1.50 13 THK

$

$

Not available

34

Ariens 51066

Lip Seal Axle Seal

$

$

Not available

35

Ariens 51354

Shaft, Axle .75 x 11.39 (Key Right Hand)

Note: (Key Right Hand)

$

$

Not available

36

Ariens 51353

Shaft, Axle .75 x 11.39 (Key Left Hand)

Note: (Key Left Hand)

$

$

Not available

37

Ariens 44096

Miter Gear (Splined)

Note: (Splined)

$

$

Not available

38

Ariens 44097

Miter Gear 15T

$

$

Not available

39

Ariens 50146

Shaft

$

$

Not available

40

Ariens 44871

Ring, Spiral Retaining

$

$

Not available

41

Ariens 51083

Pin, Jackshaft

$

$

Not available

42

Ariens 51100

Magnet, Ring

$

$

Not available

43

Ariens 51136

Spring, Bypass

$

$

Not available

44

Ariens 50016

Hydro Mounting Screw .38-24 x 2.5 Ling

$

$

Not available

45

Ariens 51132

Filter

$

$

Not available

46

Ariens 51133

Base, Filter

$

$

Not available

47

Ariens 51091

Actuator, Bypass

$

$

Not available

48

Ariens 51098

Rod, Bypass Actuator

$

$

Not available

49

Ariens 51099

Arm, Bypass

$

$

Not available

50

Ariens 51116

Retaing Ring .25 External

$

$

Not available

51

Ariens 51081

Seal, Lip .741 x .25 x .25 TC

$

$

Not available

52

Ariens 44371

Washer, Flat .625 I.D. x 1.00 O.D. x .05 THK

$

$

Not available

53

Ariens 44145

Retaining Ring

$

$

Not available

54

Ariens 51071

Bearing, Center Block

$

$

Not available

55

Ariens 2003014

Spring, Helical Compression

$

$

Not available

56

Ariens 2003017

Washer

$

$

Not available

57

20W-50 Oil

$

$

Not available

58

Ariens 44092

Brake Yoke

$

$

Not available

59

Ariens 51072

Rotor, Brake

$

$

Not available

60

Ariens 44132

Brake Puck

$

$

Not available

61

Ariens 44134

Puck Plate

$

$

Not available

62

Ariens 44127

Brake Actuating Pin

$

$

Not available

63

Ariens 51146

HFHCS .25-20 x with Patch, Special Flange

$

$

Not available

65

Ariens 23711

Spacer

$

$

Not available

66

Ariens 50884

Spring, Brake Arm Bias

$

$

Not available

67

Ariens 44138

Square Head Bolt .313-24 Ribbed

$

$

Not available

68

Ariens 51142

Arm Brake

$

$

Not available

69

Ariens 44142

Slotted Hex Nut .313-24

$

$

Not available

70

Ariens 44101

Cotter Pin .094 x .75

$

$

Not available

71

Ariens 50819

Compression Spring Brake Anti-Drag

$

$

Not available

72

Ariens 50132

Washer, HT .50 I.D. x 1.00 O.D. x .032

$

$

Not available

73

Ariens 44130

Washer, Flat .34 I.D. x .875 O.D.

$

$

Not available

74

Ariens 44761

Oil Seal .825 x 1.00 x .25

$

$

Not available

75

Ariens 51084

Check Plug Assembly, .027 Washer

$

$

Not available

83

Ariens 90048002506

Pin, Standard Headless

$

$

Not available

84

Ariens 51143

Fitting, .316 SAE .157 Tube

$

$

Not available

85

Ariens 41147

Hose, Expansion Tank

$

$

Not available

87

Ariens 51251

Cap, Vent

$

$

Not available

88

Ariens 50583

Bolt, Self tapping 10-32 x .50

$

$

Not available

93

Ariens 51118

Spring Clip, Housing Thrust

$

$

Not available

94

Ariens 44147

Bearing, Ball .62 x I.D. x 1.38 x .44

$

$

Not available

95

Ariens 50837

Screw Socket Head Cap .313-24 x 1.50

$

$

Not available

96

Ariens 51200

Spacer, Location

$

$

Not available

97

Ariens 50870

Screw SFHCS .313-18 x 1.00

$

$

Not available

98

Ariens 51365

Arm, Return

$

$

Not available

99

Ariens 51097

Puck, Adjusting

$

$

Not available

100

Ariens 51122

Washer .24 I.D. x 1.80 O.D. x .239

$

$

Not available

101

Ariens 51131

Spring, Extension

$

$

Not available

102

Ariens 51123

Spacer .25 I.D. .55 O.D. x .87

$

$

Not available

103

Ariens 51223

Bracket, Torque

$

$

Not available

107

Ariens 51134

Deflector

$

$

Not available

108

Ariens 51069

Washer, Motor Shaft .71 I.D. x 1.15 O.D. x .03

$

$

Not available

109

Ariens 9005110-5600

Plug SAE #6

$

$

Not available

110

Ariens 50868

Screw, Torx Head .313-18

$

$

Not available

111

Ariens 51144

O-Ring .103 x .299 I.D.

$

$

Not available

113

Ariens 51179

Bracket, Support Expansion Tank

$

$

Not available

114

Ariens 51184

Spring Guid

$

$

Not available

117

Ariens 51124

Pin, Spring

$

$

Not available

119

Ariens 51230

Fan, 7 inch

$

$

Not available

120

Ariens 51231

Pulley

$

$

Not available

121

Ariens 51244

Hex Lock Nut .50-20 (Nylon Insert)

Note: (Nylon Insert)

$

$

Not available

122

Ariens 51523

Washer, O.D. Slotted .53 x 1.63 x .06

$

$

Not available

123

Ariens 51229

Bracket, Belt Keeper

$

$

Not available

124

Ariens 70484

Center Section, Filter, Bypass Assembly

$

$

Not available

125

Ariens 70488

Filter Assembly

$

$

Not available

126

Ariens 70460

Kit, Fan/Pulley

Note: (Includes 119 - 122)

$

$

Not available

127

Ariens 70483

Seal, O-Ring Kit

$

$

Not available

128

Ariens 70503

Kit, Expansion Tank

$

$

Not available

129

Ariens 51252

Cap, Expansion tank Shipping

$

$

Not available

130

Ariens 51426

Stud, Ball

$

$

Not available

131

Ariens 51421

Bracket, Crusie Damper

$

$

Not available

132

Ariens 43083

Hex Nut .313-18

$

$

Not available

133

Ariens 51425

Damper

$

$

Not available

134

Ariens 51430

Washer, Helical Spring Lock .313, Regular

$

$

Not available
