9369 E - Lawn-Boy 36" Rear-Engine Riding Mower (SN: 400000001 - 499999999) (1974) Rider Mower Front End Group Model 9266 Parts List Parts Diagram

36" Rear-Engine Riding Mower

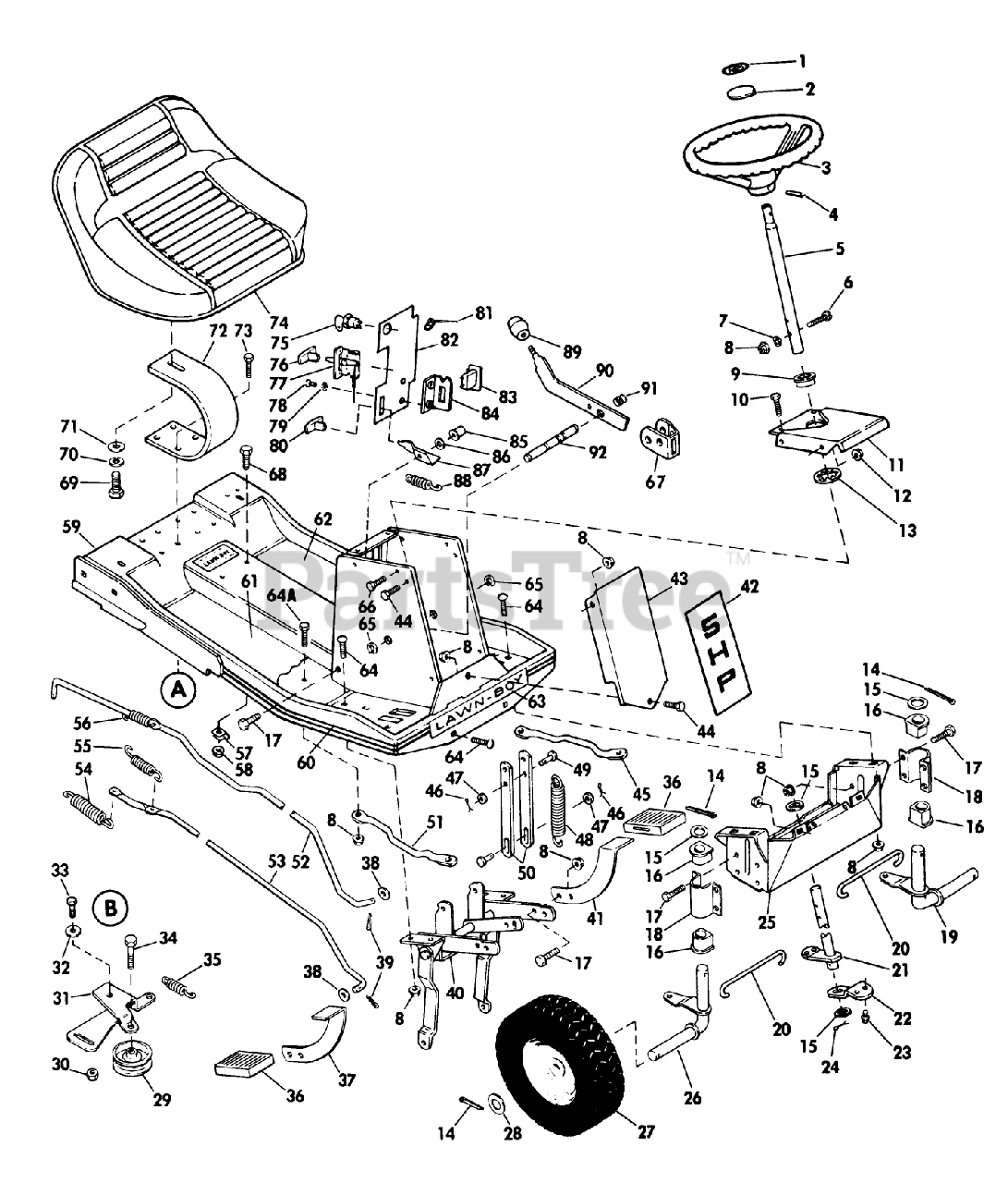

Rider Mower Front End Group Model 9266 Parts List Parts Diagram

  • Title

Lawn-Boy 681317T

Steering Wheel and Shaft Assembly

Note: NOT SHOWN

$

$

Currently unavailable

Lawn-Boy 681317T

Steering Wheel and Shaft Assembly

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

1

Lawn-Boy 608568T

Decal-Steering Wheel

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

2

Lawn-Boy 608569T

Cap-Steering Wheel

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

3

Lawn-Boy 608461T

Steering Wheel

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

4

Lawn-Boy 605579T

Pin-Roll-Steering Wheel

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

5

Lawn-Boy 608439T

Steering Column

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

6

Lawn-Boy 304055T

Screw-Engine Mounting

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

7

Lawn-Boy 306325

DISCONTINUED

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Not available

8

Lawn-Boy 602830

NUT

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Not available

9

Lawn-Boy 607880T

Bushing

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

10

Lawn-Boy 605633

DISCONTINUED

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Not available

11

Lawn-Boy 608451T

Top Panel-Control Panel

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

12

Lawn-Boy 608438T

Nut-Top Panel

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

13

Lawn-Boy 608585T

Retaining Ring-Steering Column Bushing

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

14

Lawn-Boy 307976T

Cotter Pin

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

15

Lawn-Boy 607992T

Washer-Front Axle

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

16

Lawn-Boy 607894T

Bushing-Front Axle

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

17

Lawn-Boy 306555

DISCONTINUED

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Not available

18

Lawn-Boy 608700T

Bracket-Front Axle

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

19

Lawn-Boy 679762T

Axle Assembly-Front L.H.

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

20

Lawn-Boy 607900T

Tie Rod

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

21

Lawn-Boy 681020T

Steering Shaft Assembly

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

22

Lawn-Boy 608447T

Bearing-Lower Steering Shaft

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

23

Lawn-Boy 603426T

Screw-Bearing-Lower Steering Shaft

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

24

Lawn-Boy 306956

DISCONTINUED SEE PRC4

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Not available

25

Lawn-Boy 681137T

Frame-Front Axle Mounting

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

26

Lawn-Boy 679765T

Axle Assembly-Front R.H.

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

27

Lawn-Boy 679772T

Wheel and Tire Assembly-Front

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

28

Lawn-Boy 607993T

Washer-Wheel and Tire Assembly

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

29

Lawn-Boy 607978T

Pulley-Idler

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

30

Lawn-Boy 603392

DISCONTINUED

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Not available

31

Lawn-Boy 607897T

Idler Lever

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

32

Lawn-Boy 608434T

Washer-Spring-Packing Brake Pivot

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

33

Lawn-Boy 608001T

Screw

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

34

Lawn-Boy 302600T

Screw

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

35

Lawn-Boy 607968T

Spring

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

36

Lawn-Boy 607976T

Pad-Foot Pedal

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

37

Lawn-Boy 607878T

Pedal-Foot R.H.

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

38

Lawn-Boy 120196

DISCONTINUED

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Not available

39

Lawn-Boy 316927T

Pin

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

40

Lawn-Boy 679870T

Control Shaft Assembly

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

41

Lawn-Boy 607877T

Pedal-Foot L.H.

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

42

Lawn-Boy 608537T

Decal-5 H.P.

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

43

Lawn-Boy 608697T

Front Panel-Control Console

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

44

Lawn-Boy 300646

See Supercession: 321-4
(Superseded to 321-4)

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$1.49

$

In Stock, Qty 20+

0

45

Lawn-Boy 608698T

Rod-Support Front Axle to Frame L.H.

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

46

Lawn-Boy 306956

DISCONTINUED SEE PRC4

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Not available

47

Lawn-Boy 120196

DISCONTINUED

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Not available

48

Lawn-Boy 608445T

Spring-Tie Bar-Blade Clutch

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

49

Lawn-Boy 608437T

Clevis Pin

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

50

Lawn-Boy 608448T

Tie Bar-Clutch Blade

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

51

Lawn-Boy 608699T

Rod-Support Front Axle to Frame L.H.

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

52

Lawn-Boy 608458T

Brake Rod

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

53

Lawn-Boy 608459T

Clutch Rod

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

54

Lawn-Boy 607965T

Spring-Clutch Rod

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

55

Lawn-Boy 607968T

Spring

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

56

Lawn-Boy 607971T

Spring-Brake Rod

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

57

Lawn-Boy 608746T

Clamp-Wire Harness (Manual Start Only)

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

58

Lawn-Boy 602315T

Nut-Wire Harness Clamp

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

59

Lawn-Boy 681134T

Front Frame Member

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

60

Lawn-Boy 608539T

Decal Side Strip

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

61

Lawn-Boy 608012T

Mat-Floor-R.H.

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

62

Lawn-Boy 608011T

Mat-Floor-L.H.

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

63

Lawn-Boy 607406

DISCONTINUED

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Not available

64

Lawn-Boy 607998T

Bolt

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

64A

Lawn-Boy 607999T

Bolt

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

65

Lawn-Boy 604259

E-RING

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Not available

66

Lawn-Boy 306419

DISCONTINUED

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Not available

67

Lawn-Boy 608449T

Guide-Blade Clutch Shaft

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

68

Lawn-Boy 300646

See Supercession: 321-4
(Superseded to 321-4)

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$1.49

$

In Stock, Qty 20+

0

69

Lawn-Boy 316910

DISCONTINUED

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Not available

70

Lawn-Boy 120166

DISCONTINUED

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Not available

71

Lawn-Boy 605580T

Washer-Seal Support

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

72

Lawn-Boy 608693T

Seal Support

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

73

Lawn-Boy 306416

Screw-Seat Support

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

74

Lawn-Boy 679685

DISCONTINUED

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Not available

75

Lawn-Boy 679868T

Switch and Key Assembly

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

76

Lawn-Boy 608023T

Handle-Throttle Control

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

77

Lawn-Boy 608015T

Throttle Control Assembly

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

78

Lawn-Boy 606537

SCREW F

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$2.49

$

In Stock, Qty 9

0

79

Lawn-Boy 303916

Lockwasher

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

80

Lawn-Boy 608442T

Handle-Parking Brake

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

81

Lawn-Boy 681123T

Cable-Ground

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

82

Lawn-Boy 608210T

Decal-Control Panel

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

83

Lawn-Boy 608213T

Switch-Blade Control

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

84

Lawn-Boy 608212T

Bracket-Switch-Blade Control

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

85

Lawn-Boy 608701T

Well Nut-Parking Brake Latch

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

86

Lawn-Boy 608434T

Washer-Spring-Packing Brake Pivot

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

87

Lawn-Boy 608444T

Latch-Parking Brake

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

88

Lawn-Boy 608586T

Spring-Parking Brake

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

89

Lawn-Boy 608441T

Knob-Blade-Clutch Control

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

90

Lawn-Boy 608443T

Handle-Clutch Blade

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

91

Lawn-Boy 608436T

Spring-Blade-Clutch Shaft

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable

92

Lawn-Boy 608435T

Shaft-Blade Clutch

Note: If the letter T is included in the part number, include it as part of each part number when ordering replacement parts. This will prevent delays in supplying parts orders.

$

$

Currently unavailable
