937003 - Ariens Metro 21" Snow Blower, 3hp Tecumseh (SN: 000100 & Above) Gear Case Parts Diagram

Metro 21" Snow Blower, 3hp Tecumseh

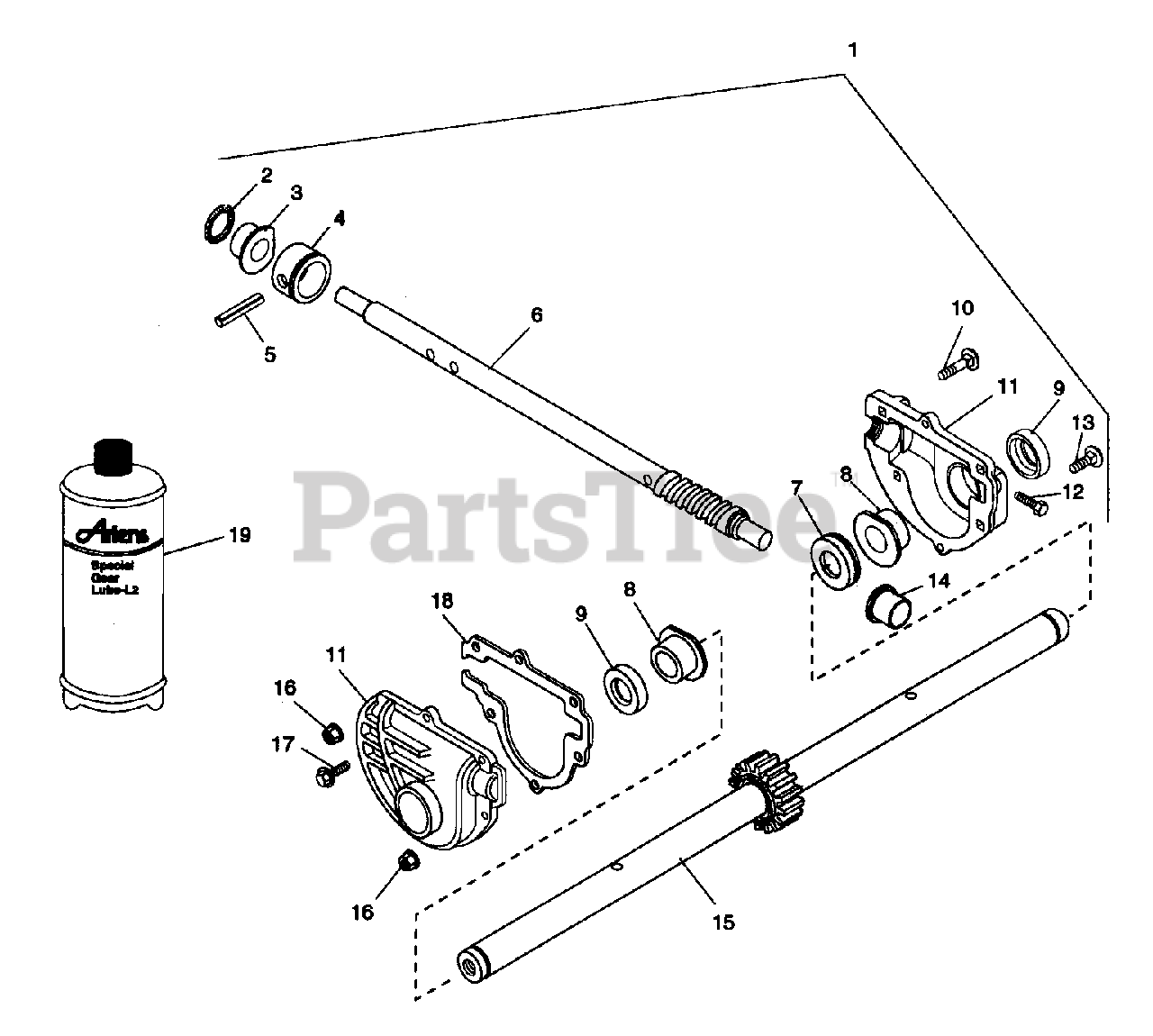

Gear Case Parts Diagram

  • Title

1

Ariens 53701700

GEAR CASE ASSEMBLY
(Superseded to 53702200)

$

$

Not available

2

Ariens 05613100

SEAL .750X1.00X.156

$9.99

$

In Stock, only 3 left!

0

3

Ariens 05511200

BSHG-FLG .750X1.000X.750X1.250

$11.99

$

In Stock, Qty 19

0

4

Ariens 03210300

THRUST COLLAR

$62.99

$

Usually ships in 4-12 days

0

5

Ariens 05804500

PIN-GRV .188X1.25 TP A

$10.99

$

In Stock, Qty 7

0

6

Ariens 53701600

WORM SHAFT & GEAR ASSY

$

$

Not available

7

Ariens 03709300

THRUST COLLAR-AUGER SHAFT

$

$

Not available

8

Ariens 05520500

BSHG-FLG 1.003X1.5X.625

$9.99

$

In Stock, Qty 6

0

9

Ariens 05606100

SEAL 1.000X1.312X.150

$11.99

$

In Stock, Qty 7

0

10

Ariens 06200100

BLT-RDHDSQNK .25-20X1.25 GR5PL
(Superseded to 06219700)

$3.99

$

Usually ships in 4-12 days

0

11

Ariens 02465400

L. H. GEAR CASE HALF
(Superseded to 52408200)

$237.99

$

Usually ships in 4-12 days

0

11

Ariens 02465500

R. H. GEAR CASE HALF
(Superseded to 52408200)

$237.99

$

Usually ships in 4-12 days

0

12

Ariens 07401600

SCR-TAP .375-16X .50 HWH PL TR
(Superseded to 07412900)

$1.49

$

In Stock, only 4 left!

0

13

Ariens 06203700

BLT-RDHDSQNK .25-20X1.00 GR5
(Superseded to 06219800)

$2.49

$

In Stock, only 3 left!

0

14

Ariens 05520600

BSHG-FLG .502X1X.750

$9.49

$

In Stock, only 1 left!

0

15

Ariens 03707500

AUGER SHAFT WELD ASSY

$

$

Not available

16

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 17

0

17

Ariens 07402700

SCR-TAP 10-24X.75 HWH PL TR
(Superseded to 07413000)

$3.99

$

In Stock, Qty 8

0

18

Ariens 03212900

GASKET
(Superseded to 03203800)

$4.99

$

In Stock, Qty 19

0

19

Ariens 00008100

BOTTLE ONLY-S.SCREEN.FOR NO.80

$

$

Not available
