938001 (SS 322) - Ariens 22" Snow Blower, 3hp Tecumseh (SN: 000101 & Above)

22" Snow Blower, 3hp Tecumseh

938001 (SS 322) - Ariens 22" Snow Blower, 3hp Tecumseh (SN: 000101 & Above) > Parts Diagrams (6) > Handlebars, Controls And Shrouds

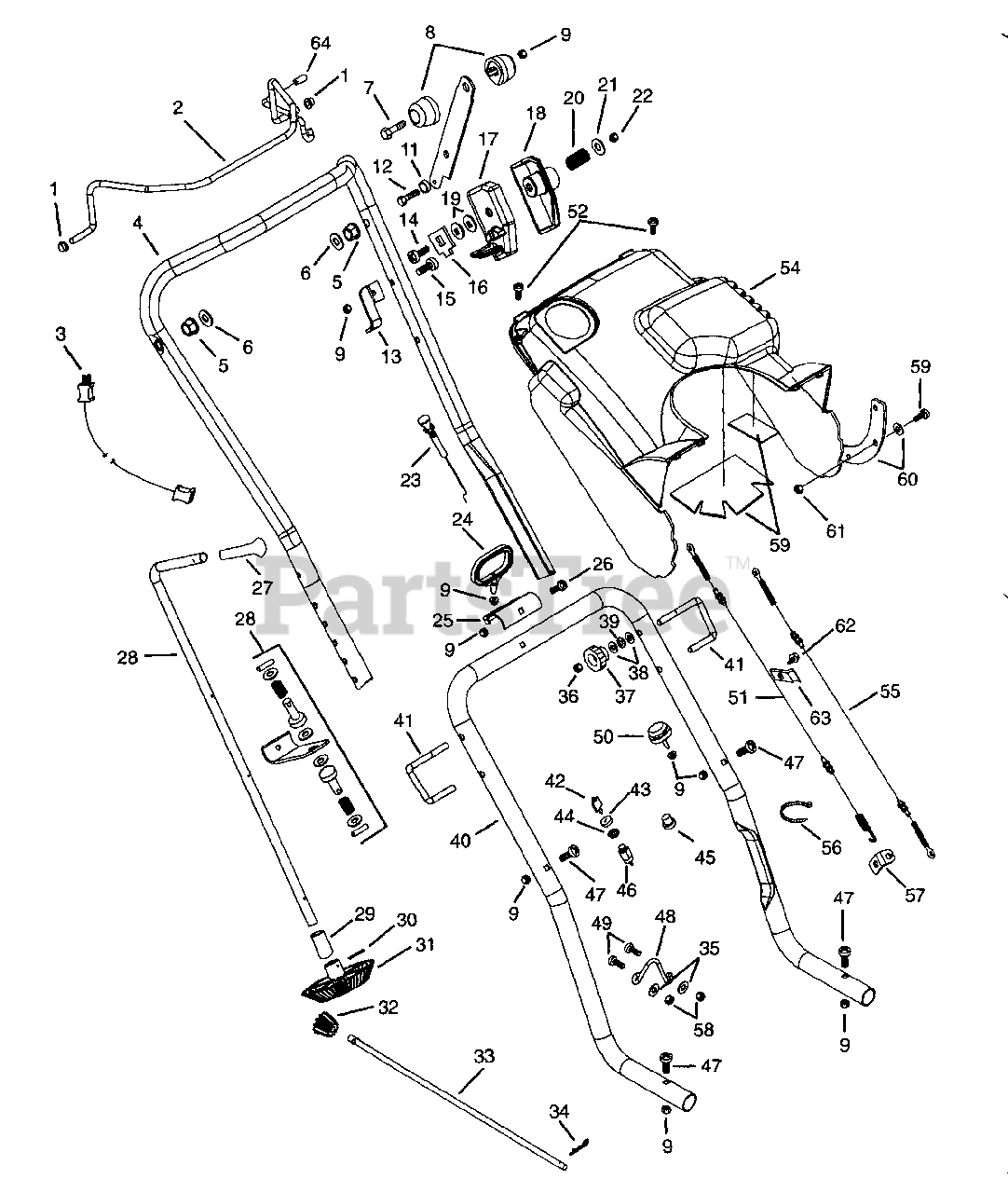

  • Title
07008200

1

NUT-PUSH .312 DIA. PAL

Part# 07008200

Note: (001,002,003,004,301,302)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

03806351

2

ENGINE BAIL WELDMENT

Part# 03806351

Note: (001,002,003,004,301,302)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $100.56

03807351

2

BAIL-CLUTCH CONTROL

Part# 03807351

Note: (006,007,008,009,301*,303)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $173.23

07524800

3

CORD, EXTENSION

Part# 07524800

Note: (003,004,008,009)

OEM Warranty Repair Part for Ariens

Not available

03804400

4

HANDLE BAR-UPPER

Part# 03804400 (Superseded to 03804451)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $72.61

05514500

5

BSHG-FLG .325X.444X.440X.560

Part# 05514500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06412300

6

WSHR-FL-STL.344X.688X.065PL

Part# 06412300 (Superseded to 06437200)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05934100

7

BLT-HEX .25-20X1.38

Part# 05934100

Note: (002,004,302)

OEM Warranty Repair Part for Ariens

Not available

07525600

8

KNOB

Part# 07525600

Note: (002,004,302)

OEM Warranty Repair Part for Ariens

Not available

06527600

9

NUT-LK-FLG .250-20 PL BLK

Part# 06527600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

03804900

10

LEVER-CHUTE DEFL CNTRL

Part# 03804900

Note: (002,004,302)

OEM Warranty Repair Part for Ariens

Not available

03232200

11

SPACER .230X.310X.255

Part# 03232200

Note: (002,004,302)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

07404500

12

SCR-TAP 12-24X.50 HWH PL TR

Part# 07404500 (Superseded to 07411900)

Note: (002,004,302)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

03804800

13

ANCHOR-CABLE,CHUTE DEFL CNTRL

Part# 03804800 (Superseded to 03804851)

Note: (002,004,302)

OEM Warranty Repair Part for Ariens

Not available

06218000

14

BLT-RDHDSQNK .38-16X2.25

Part# 06218000 (Superseded to 06213400)

Note: (002,004,302)

OEM Warranty Repair Part for Ariens

Not available

06209400

15

BLT-RDHDSQNK .25-20X1.25 XLGPL

Part# 06209400 (Superseded to 06220100)

Note: (002,004,302)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

03215500

16

FRICTION PLATE

Part# 03215500

Note: (002,004,302)

OEM Warranty Repair Part for Ariens

Not available

03804600

17

HSG-INNER,CHUTE DEFL CNTRL

Part# 03804600 (Superseded to 53801400)

Note: (002,004,302)

OEM Warranty Repair Part for Ariens

Not available

03804700

18

HSG-OUTER,CHUTE DEFL CNTRL

Part# 03804700 (Superseded to 53801400)

Note: (002,004,302)

OEM Warranty Repair Part for Ariens

Not available

01123800

19

FRICTION WASHER

Part# 01123800

Note: (002,004,302)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

08320900

20

SG-COMP .187X.56X1.62

Part# 08320900

Note: (002,004,302)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

06409600

21

WSHR-FL-STL .458X.750X.06 PL

Part# 06409600

Note: (002,004,302)

OEM Warranty Repair Part for Ariens

Not available

06512200

22

NUT-LK TOP .375-16 GR C YWZC

Part# 06512200

Note: (002,004,302)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

06929000

23

CONTROL-CHOKE 3 HP

Part# 06929000

Note: (001,003,006,008,301,301*)

OEM Warranty Repair Part for Ariens

Not available

06937300

23

CONTROL-CHOKE 5 HP

Part# 06937300 (Superseded to 53802600)

Note: (002,004,007,009,303)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $36.84

01157100

24

HANDLE, RECOIL START

Part# 01157100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

03802900

25

BRKT-STARTER HANDLE

Part# 03802900

OEM Warranty Repair Part for Ariens

Not available

06206000

26

BLT-RDHDSQNK .25-20X1.50 PL BL

Part# 06206000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

07514500

27

KNOB

Part# 07514500

Note: (002,004,007,009,302)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $22.30

53800100

28

CRANK-CHUTE ASSY

Part# 53800100

Note: (002,004,007,009,302)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $188.16

03802800

28

SUPPORT-CHUTE CRANK

Part# 03802800 (Superseded to 53800100)

Note: (002,004,007,009,302)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $188.16

05800200

28

PIN-ROLL .125X1.38

Part# 05800200

Note: (002,004,007,009,302)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06406200

28

WSHR-FL-STL .754X1.125X.062 PL

Part# 06406200 (Superseded to 06441400)

Note: (002,004,007,009,302)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

08330600

28

SG-COMP .105X.970X2.75 WLD55.5

Part# 08330600

Note: (002,004,007,009,302)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

03805300

28

SLEEVE-SPRING THRUST

Part# 03805300 (Superseded to 53800100)

Note: (002,004,007,009,302)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $188.16

03805400

28

WSHR-FRICTION .53X1.00X.094

Part# 03805400

Note: (002,004,007,009,302)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

03803900

29

BSHG-SLV .510X.753X2.00

Part# 03803900

Note: (002,004,007,009,302)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

06701100

30

@PIN-CTR .16X1.25 EXTPRSQCT YZ

Part# 06701100

Note: (002,004,007,009,302)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

03804300

31

GEAR-CRANK TRANSFER 48T

Part# 03804300

Note: (002,004,007,009,302)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

03804200

32

PINION-CRANK TRANSFER 12T

Part# 03804200

Note: (002,004,007,009,302)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

03803600

33

SHAFT CHUTE CRANK TRANSFER

Part# 03803600

Note: (002,004,007,009,302)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

06701000

34

PIN-HAIR INT .08X.38X1.42 YWZC

Part# 06701000

Note: (002,004,007,009,302)

OEM Warranty Repair Part for Ariens

Not available

06406800

35

WSHR-FL-STL .194X.492X.047 PL

Part# 06406800 (Superseded to 06444400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

06504200

36

NUT-LK .312-18 GR A PL

Part# 06504200 (Superseded to 06529800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

07524500

37

KNOB

Part# 07524500 (Superseded to 07534800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $11.12

06409000

38

WSHR-FL-STL .328X.875X.062 PL

Part# 06409000 (Superseded to 06439400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06303600

39

WSHR-LK .313X.078 PL MED

Part# 06303600 (Superseded to 06308600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

03802100

40

HANDLE BAR-LOWER

Part# 03802100 (Superseded to 03802151)

OEM Warranty Repair Part for Ariens

Not available

03802700

41

J BOLT .31-18

Part# 03802700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.24

02460700

42

KEY -W/CAP

Part# 02460700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $7.77

07517700

43

CAP - IGNITION SWITCH

Part# 07517700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06517300

44

NUT-PANEL .625-32 GRECO

Part# 06517300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

07527800

45

PLUG-HOLE .50 DIA

Part# 07527800

Note: (001,003,006,008,301,301*,303)

OEM Warranty Repair Part for Ariens

Not available

02456500

46

KEY SWITCH ASSEMBLY

Part# 02456500 (Superseded to 52406900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $22.08

06216900

47

BLT-RDHDSQNK .25-20X1.75

Part# 06216900 (Superseded to 06220000)

OEM Warranty Repair Part for Ariens

Not available

03803800

48

GUIDE-ROPE

Part# 03803800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $13.36

06111200

49

SCR-MCH 10-24X.75 PHD

Part# 06111200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

07518200

50

PRIMER ASSY

Part# 07518200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

06930500

51

CABLE-CLUTCH CONTROL

Part# 06930500

Note: (001,002,003,004,301,302)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $48.32

06937100

51

CABLE-CLUTCH CONTROL

Part# 06937100

Note: (006,007,008,009,301*,303)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $44.66

07412300

52

SCR-SPEC-TAP #10X1.0

Part# 07412300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

03805200

53

SHEET-HEAT REFLECTIVE 3X5

Part# 03805200

Note: (001,003,006,008,301,301*)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

03805000

53

SHEET-HEAT REFLECTIVE

Part# 03805000

Note: (002,004,007,009,302,303)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

53801000

54

COWL-REPLACEMENT

Part# 53801000

Note: (001,002,003,004,301,302)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $234.72

53801100

54

COWL ASSEMBLY

Part# 53801100

Note: (006,007,008,009,301*,303)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $234.72

06930400

55

CABLE-CHUTE DEFLECTOR CONTROL

Part# 06930400

Note: (002,004,302)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $67.02

07517300

56

CABLE TIE LG 5-1/2

Part# 07517300

Note: (001,003,006,008,301,301*)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

07517300

56

CABLE TIE LG 5-1/2

Part# 07517300

Note: (002,004,007,009,302,303)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

07527400

56

CABLE TIE .50 BUNDLE X3.12X18#

Part# 07527400

Note: (004,009)

OEM Warranty Repair Part for Ariens

Not available

03804500

57

BRKT-ANGLE,DEFLECTOR CONTROL

Part# 03804500

Note: (002,004,302)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06506500

58

NUT-LK 10-24 NY PL

Part# 06506500 (Superseded to 06536000)

OEM Warranty Repair Part for Ariens

Not available

06113000

59

SCR-MCH 10-24X.50 PHD

Part# 06113000

Note: (001,002,003,004,301,302)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

07413300

59

SCR-TAP 12-24X.50 HWH TR BLACK

Part# 07413300 (Superseded to 07411900)

Note: (006,007,008,009,301*,303)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06400100

60

WSHR-FL-STL .250X.562X.049 PL

Part# 06400100 (Superseded to 06442300)

Note: (001,002,003,004,301,302)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

03806700

60

PLATE-COWL RETAINER

Part# 03806700 (Superseded to 03810451)

Note: (006,007,008,009,301*,303)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $16.71

06506500

61

NUT-LK 10-24 NY PL

Part# 06506500 (Superseded to 06536000)

Note: (001,002,003,004,301,302)

OEM Warranty Repair Part for Ariens

Not available

07403300

62

SCR-TAP 10-16X .75 HWH PL SD

Part# 07403300 (Superseded to 07413600)

Note: (002,004,302)

OEM Warranty Repair Part for Ariens

Not available

06909100

63

CABLE CLAMP NON SKID

Part# 06909100

Note: (002,004,302)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

07517000

64

CAP, VINYL, .25 ID

Part# 07517000

Note: (006,007,008,009,301*,303)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $0.78
