938003 (SS 322 E) - Ariens 22" Snow Blower, 3hp Tecumseh (SN: 000101 & Above) Auger/Impeller Parts Diagram

22" Snow Blower, 3hp Tecumseh

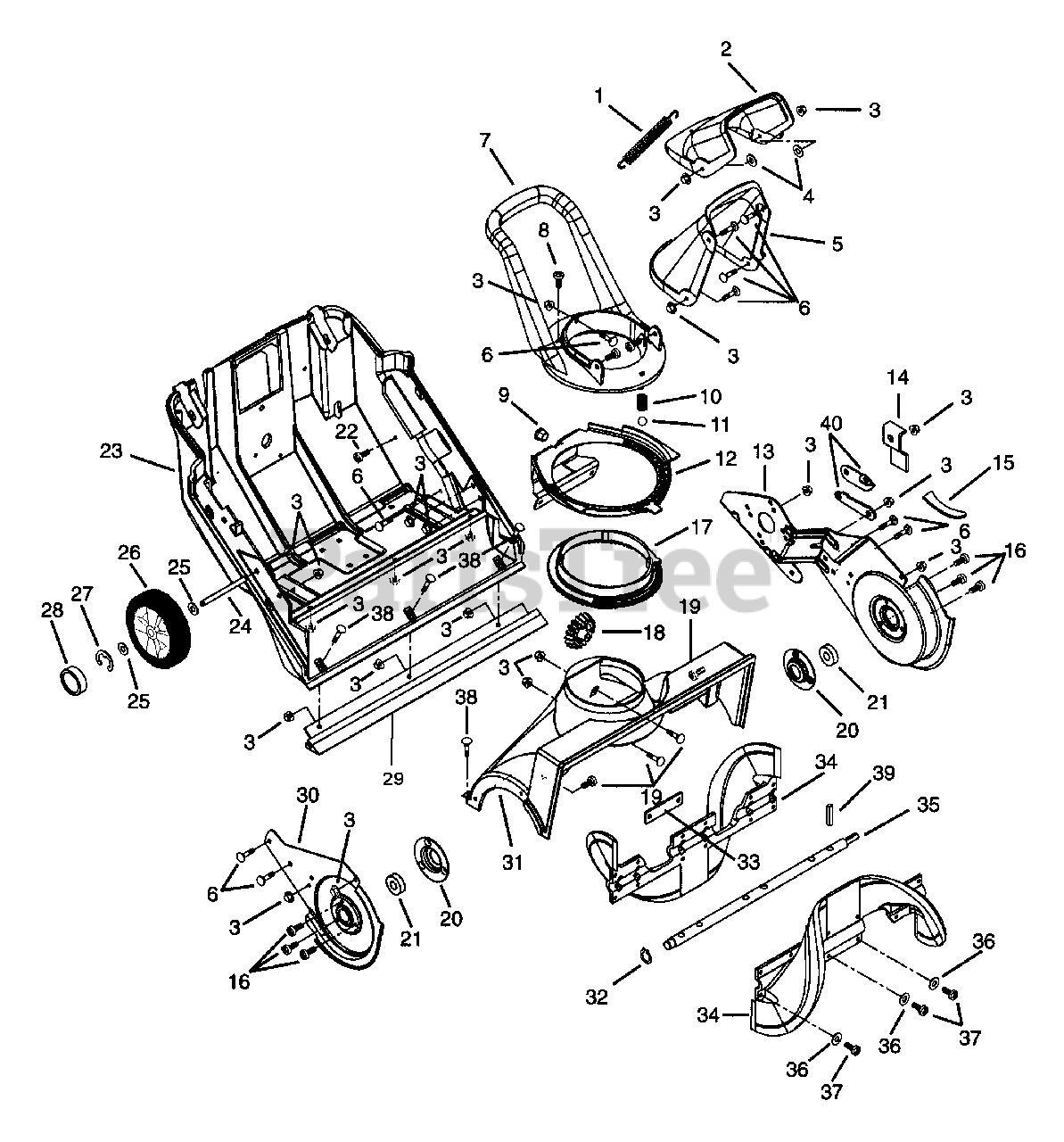

Auger/Impeller Parts Diagram

  • Title

1

Ariens 08329900

SG-TENS

Note: (002,004,302)

$

$

Not available

2

Ariens 53800400

DEFLECTOR-DISCHARGE CHUTE ASSY

$

$

Not available

3

Ariens 06527600

NUT-LK-FLG .250-20 PL BLK

Note: (001,003,301)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 06437800

WSHR-FL-RBR .31X1.25X.06
(Superseded to 06432800)

$3.99

$

Usually ships in 4-12 days

0

5

Ariens 03801900

CHUTE-DISCHARGE
(Superseded to 53800400)

$

$

Not available

6

Ariens 06204200

BLT-RDHDSQNK .25-20X.75 GR5PL
(Superseded to 06219900)

$1.49

$

Usually ships in 4-12 days

0

7

Ariens 03805600

HANDLE W/HOLE SEE 03801800

Note: (002,004,302)

$

$

Not available

7

Ariens 03801800

HANDLE

Note: (001,003,006,007,008,009,301,301 *,303)

$18.99

$

Usually ships in 4-12 days

0

8

Ariens 07409500

SCR TAP 8-18X1.50 SL HWH PL B

$2.99

$

In Stock, Qty 6

0

9

Ariens 05514500

BSHG-FLG .325X.444X.440X.560

Note: (002,004,007,009,302)

$3.99

$

In Stock, Qty 9

0

10

Ariens 08329800

SG-COMP .045X.360X1.75 WLD12.5

Note: (001,003,006,008,301,301 *,303)

$

$

Not available

11

Ariens 05429800

BALL .375 GRD 2000 CBN STL

Note: (001,003,006,008,301,301*,303)

$

$

Not available

12

Ariens 03801700

BRKT-DISCHARGE CHUTE ROTATION
(Superseded to 03801751)

$87.99

$

Usually ships in 4-12 days

0

13

Ariens 53800800

SUPPORT-BRG,REPLACEMENT ASSY

Note: (001,002,003,004,301,302)

$

$

Not available

13

Ariens 03807100

SUPPORT-BRG,LH
(Superseded to 02973251)

Note: (006,007,008,009,301 *,303)

$70.99

$

Usually ships in 4-12 days

0

14

Ariens 03803200

DEFLECTOR-EXHAUST

Note: (001,003,006,008,301,301*)

$

$

Not available

15

Ariens 03808000

TAPE-ADHESIVE BACKED FOAM 11.0

$

$

Not available

16

Ariens 07401500

SCR-TAP .250-20X.37 HWH PL TR
(Superseded to 07411600)

$1.49

$

In Stock, Qty 8

0

17

Ariens 03804000

GEAR-DISCHARGE CHUTE SEGMENT

$40.99

$

Usually ships in 4-12 days

0

18

Ariens 03804100

PINION-DISCHARGE CHUTE 18T

Note: (002,004,007,009,302)

$

$

Not available

19

Ariens 06114300

SCR-MCH .25-20X.50 TXTR PL

$2.99

$

Usually ships in 4-12 days

0

20

Ariens 03800800

CUP-BRG

$19.99

$

Usually ships in 4-12 days

0

21

Ariens 05418800

BRG-BALL .669X1.575X.47 (6203)

$10.99

$

In Stock, Qty 20+

0

22

Ariens 06203700

BLT-RDHDSQNK .25-20X1.00 GR5
(Superseded to 06219800)

$2.49

$

Usually ships in 4-12 days

0

23

Ariens 03800300

CHASSIS
(Superseded to 53801500)

$

$

Not available

24

Ariens 03802300

AXLE

$58.99

$

In Stock, only 3 left!

0

25

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 07139400

T/WHL ASSY 7.0X1.5
(Superseded to 53802700)

$40.99

$

In Stock, Qty 5

0

27

Ariens 05717400

RG-RTNG-EXT .375X.035
(Superseded to 05710600)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 03802400

CAP-HUB

$39.99

$

Usually ships in 4-12 days

0

29

Ariens 03802500

SCRAPER
(Superseded to 03809400)

$46.99

$

In Stock, only 4 left!

0

30

Ariens 53800800

SUPPORT-BRG,REPLACEMENT ASSY

Note: (001,002,003,004,301,302)

$

$

Not available

30

Ariens 03807200

SUPPORT-BRG,RH
(Superseded to 03807251)

Note: (006,007,008,009,301 *,303)

$

$

Not available

31

Ariens 53800300

HOUSING-IMPELLER ASSY

$

$

Not available

32

Ariens 05706100

RG-RTNG-EXT .672X.035

$2.49

$

Usually ships in 4-12 days

0

33

Ariens 03803000

PLATE-BOLT,SELF-TAPPING

$16.99

$

In Stock, only 4 left!

0

34

Ariens 03807000

IMPELLER HALF

$58.99

$

In Stock, only 4 left!

0

35

Ariens 53800700

KIT-IMPELLER REPLACEMENT

Note: Before S/N 938001, 938002, 938003, 938004, 938301, 938302

$

$

Not available

35

Ariens 03806900

SHAFT-IMPELLER

Note: After S/N 002777, 001956, 000899, 000801, 000250, 000250

$84.99

$

In Stock, only 1 left!

0

36

Ariens 06426600

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

$1.49

$

In Stock, only 4 left!

0

37

Ariens 07412400

@SCR-TAP .25-20X1.00 HWH TR YZ
(Superseded to 07400133)

$3.49

$

In Stock, Qty 14

0

38

Ariens 06114400

SCR-MCH .25-20X.75 TXTR YWZC

$1.49

$

In Stock, only 2 left!

0

39

Ariens 05809200

PIN-ROLL .250X1.75 ZINC PL

Note: After S/N 002777, 001956, 000899, 000801, 000250, 000250

$4.99

$

Usually ships in 4-12 days

0

40

Ariens 03806200

ARM-SPRING

Note: (001,002,003,004,301,302)

$

$

Not available

40

Ariens 03807400

BRKT-SPRING

Note: (006,007,008,009,301 *,303)

$

$

Not available

41

Ariens 03813800

SCRAPER BLADE, UHMW-PE

$47.99

$

In Stock, Qty 20+

0
