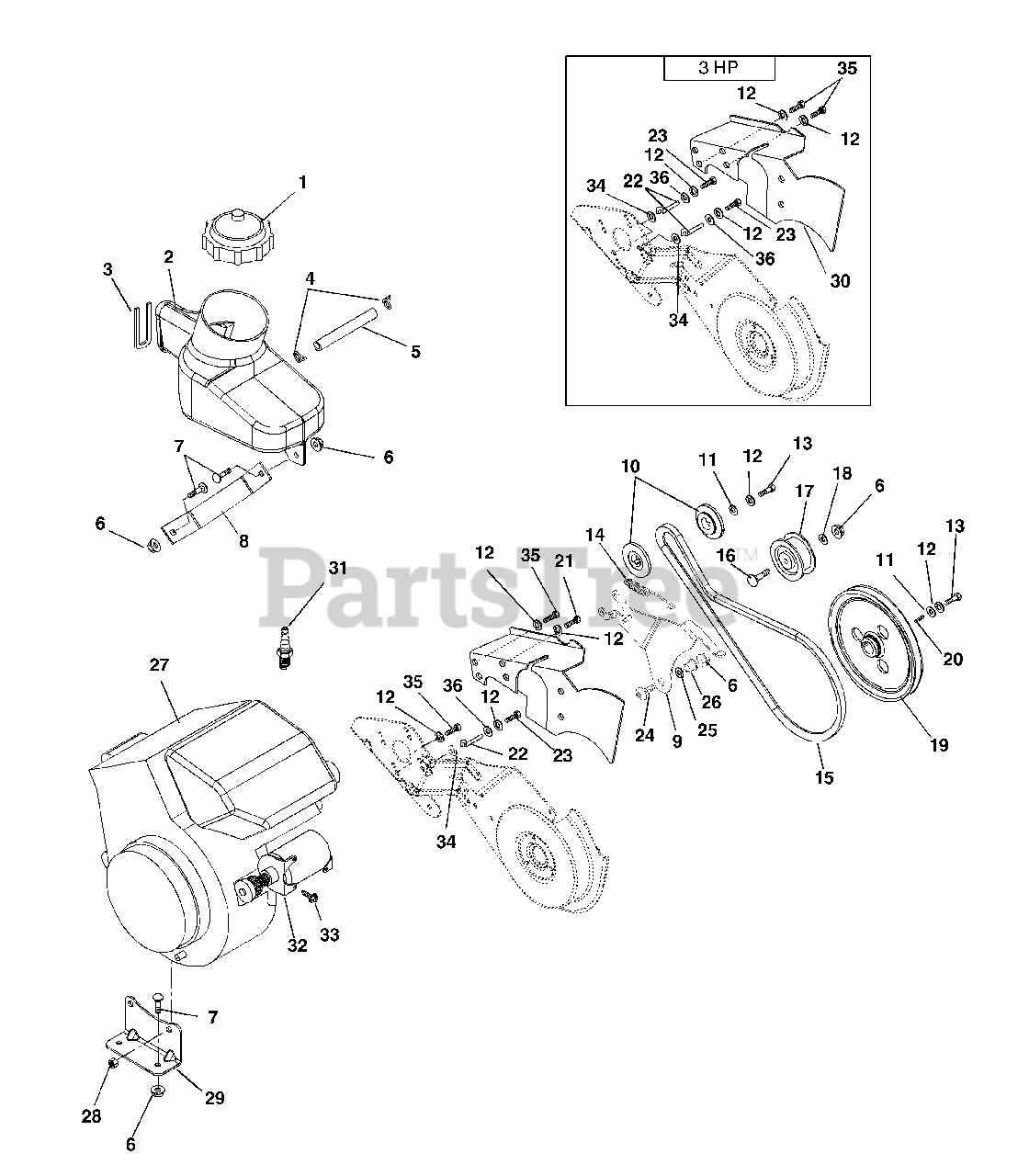

938017 (SS 522) - Ariens 22" Snow Blower, 5hp Tecumseh (SN: 000101 - 002000) Engine And Drive Parts Diagram

22" Snow Blower, 5hp Tecumseh

Engine And Drive Parts Diagram

  • Title

1

Ariens 07525300

CAP-FUEL

$29.99

$

Usually ships in 4-12 days

0

2

Ariens 53802100

KIT, 938 FUEL TANK
(Superseded to 53802500)

$

$

Not available

3

Ariens 03807800

TAPE FOAM,NEOPRENE

$3.99

$

Usually ships in 4-12 days

0

4

Ariens 02917200

CLAMP-HOSE WIR.490/.510X.092#8
(Superseded to 06939100)

$3.99

$

In Stock, Qty 7

0

5

Ariens 03807900

GAS LINE 1/4" I.D. X 9.5

Note: (017, 018, 019, 300)

$

$

Not available

5

Ariens 03328000

GAS LINE HOSE 1/4 X 11"

Note: (015)

$

$

Not available

6

Ariens 06527600

NUT-LK-FLG .250-20 PL BLK

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

Usually ships in 4-12 days

0

8

Ariens 03802600

BRKT-FUEL TANK MTG

$

$

Not available

9

Ariens 03810800

ARM-IDLER

$16.99

$

Usually ships in 4-12 days

0

10

Ariens 03801200

PLY-DRIVE 3LX 1.80 DIA

Note: (017, 018, 019, 300)

$

$

Not available

10

Ariens 03801100

PLY-DRIVE 3LX 1.52 DIA

Note: (015)

$

$

Not available

11

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

12

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0

13

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.99

$

In Stock, only 3 left!

0

14

Ariens 08334000

SPRING, EXTENSION

$16.99

$

In Stock, only 4 left!

0

15

Ariens 07236300

V-BELT, 3L-RAW EDGE

Note: (017, 018, 019, 300)

$26.99

$

In Stock, only 2 left!

0

15

Ariens 07236400

V-BELT, 3L-RAW EDGE

Note: (015)

$38.99

$

Usually ships in 4-12 days

0

16

Ariens 06219700

@BLT-RDHDSQNK .25-20X1.25 G5YZ

$4.99

$

Usually ships in 4-12 days

0

17

Ariens 07321900

IDLER-FLAT 1.75 X .27 DAYCO

$40.99

$

Usually ships in 4-12 days

0

18

Ariens 06426600

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

$1.49

$

In Stock, only 4 left!

0

19

Ariens 07325900

PLY-V 5.50X.671 W/KEY "A"

$70.99

$

Usually ships in 4-12 days

0

20

Ariens 06606100

KEY-SQ .188X.75X.188

$3.99

$

In Stock, Qty 7

0

21

Ariens 05933100

SCR-CAP .31-18X.75 S/HD
(Superseded to 05901827)

Note: (017, 018, 019, 300)

$2.99

$

In Stock, Qty 20+

0

22

Ariens 03805500

FINGER-BELT

Note: (017, 018, 019, 300)

$40.99

$

Usually ships in 4-12 days

0

22

Ariens 03805500

FINGER-BELT

Note: (015)

$40.99

$

Usually ships in 4-12 days

0

23

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

Note: (017, 018, 019, 300)

$1.99

$

In Stock, only 4 left!

0

23

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

Note: (015)

$1.99

$

In Stock, only 4 left!

0

24

Ariens 06114400

SCR-MCH .25-20X.75 TXTR YWZC

$1.49

$

In Stock, only 2 left!

0

25

Ariens 06436000

WSHR-FL-STL .505X.875X.024 YWZ

$2.99

$

In Stock, only 4 left!

0

26

Ariens 05513400

BSHG-FLG .265X.437X.250X.750

$2.49

$

In Stock, only 4 left!

0

27

Ariens 08249100

ENGINE, TH139SA 5HP 2CY TEC

Note: (017, 019, 300)

$

$

Not available

27

Ariens 08249000

ENGINE-HSK600 3HP 2-CY (EPA-C)

Note: (015)

$

$

Not available

27

Ariens 08264700

ENGINE, TH139SP 7HP 2CYL TEC.

Note: (018)

$

$

Not available

28

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

29

Ariens 03801600

BRKT-ENGINE MTG

$

$

Not available

30

Ariens 03810751

BAFFLE-BELT PROTECTIVE

$

$

Not available

31

Ariens 21533600

PLUG, SPARK

$4.99

$

In Stock, Qty 20+

0

32

Ariens 03803500

MOTOR-STARTING

Note: (017, 018)

$305.99

$

In Stock, only 1 left!

0

33

Ariens 07029500

SCR-HFWH-TX-SEMS .25-20X.49 TE

Note: (017, 018)

$

$

Not available

34

Ariens 06307200

@WSHR-LK-EXT.326X.599X.031YWZC
(Superseded to 06300125)

Note: (017, 018, 019, 300)

$0.99

$

In Stock, only 1 left!

0

34

Ariens 06307200

@WSHR-LK-EXT.326X.599X.031YWZC
(Superseded to 06300125)

Note: (015)

$0.99

$

In Stock, only 1 left!

0

35

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

Note: (017, 018, 019, 300)

$1.99

$

In Stock, Qty 20+

0

36

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

Note: (017, 018, 019, 300)

$0.99

$

In Stock, Qty 20+

0

36

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

Note: (015)

$0.99

$

In Stock, Qty 20+

0
