938017 (SS 522) - Ariens 22" Snow Blower, 5hp Tecumseh (SN: 000101 - 002000) Handlebars And Controls Parts Diagram

22" Snow Blower, 5hp Tecumseh

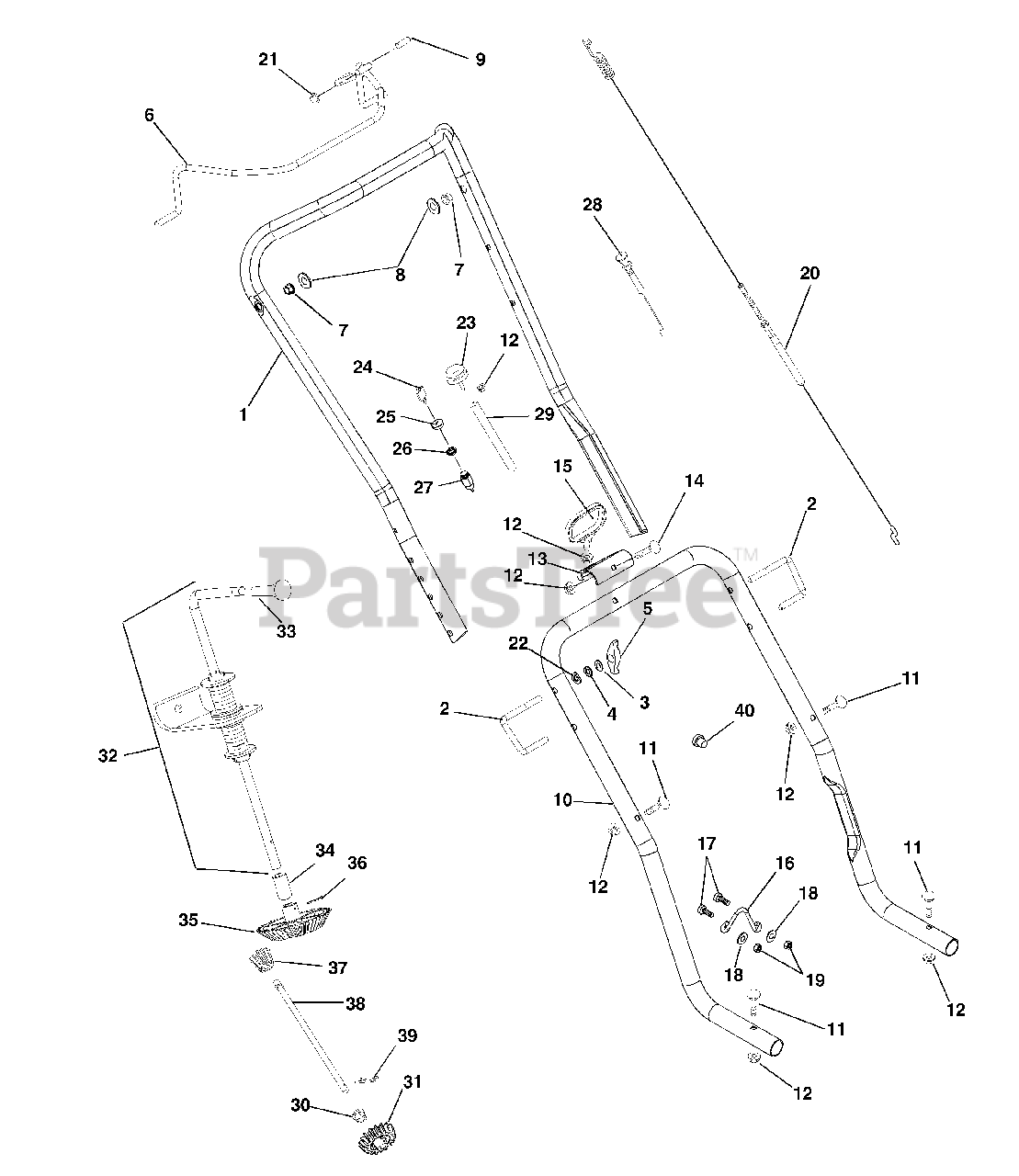

Handlebars And Controls Parts Diagram

  • Title
1

Ariens 03804451

HANDLEBAR, UPPER

$

$

Not available

2

Ariens 03802700

J BOLT .31-18

$24.26

$

Usually ships in 4-12 days

0

3

Ariens 06439400

WSHR-FL-STL .328X.875X.062YWZC

$3.58

$

In Stock, only 2 left!

0

4

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$2.24

$

In Stock, Qty 20+

0

5

Ariens 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$9.89

$

In Stock, Qty 5

0

6

Ariens 03809051

BAIL SS LF

$60.82

$

Usually ships in 4-12 days

0

7

Ariens 05514500

BSHG-FLG .325X.444X.440X.560

$3.63

$

In Stock, Qty 20+

0

8

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$2.52

$

In Stock, Qty 20+

0

9

Ariens 07517000

CAP, VINYL, .25 ID

$3.30

$

In Stock, Qty 8

0

10

Ariens 03802151

HANDLEBAR, LOWER

$

$

Not available

11

Ariens 06220000

BLT-RDHDSQNK .25-20X1.75 G5YZ
(Superseded to 06200404)

$1.99

$

Usually ships in 4-12 days

0

12

Ariens 06527600

NUT-LK-FLG .250-20 PL BLK

$1.96

$

In Stock, Qty 20+

0

13

Ariens 03802900

BRKT-STARTER HANDLE

$

$

Not available

14

Ariens 06206000

BLT-RDHDSQNK .25-20X1.50 PL BL

$3.58

$

Usually ships in 4-12 days

0

15

Ariens 01157100

HANDLE, RECOIL START

$5.81

$

In Stock, Qty 9

0

16

Ariens 03803800

GUIDE-ROPE

$17.83

$

Usually ships in 4-12 days

0

17

Ariens 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$1.96

$

Usually ships in 4-12 days

0

18

Ariens 06442700

@WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$2.52

$

Usually ships in 4-12 days

0

19

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$1.96

$

In Stock, Qty 20+

0

20

Ariens 06943300

CABLE-CLUTCH CONTROL

$33.48

$

In Stock, only 1 left!

0

21

Ariens 02215300

PUSH NUT, .25

$1.68

$

In Stock, Qty 20+

0

22

Ariens 06446800

WASHER,SADDLE-.320 X.937 X.062

$1.68

$

Usually ships in 4-12 days

0

23

Ariens 07518200

PRIMER ASSY

$24.54

$

Usually ships in 4-12 days

0

24

Ariens 02460700

KEY -W/CAP

$7.77

$

In Stock, Qty 20+

0

25

Ariens 07517700

CAP - IGNITION SWITCH

$3.63

$

In Stock, only 2 left!

0

26

Ariens 06517300

NUT-PANEL .625-32 GRECO

$5.53

$

Usually ships in 4-12 days

0

27

Ariens 52406900

SWITCH ASSEMBLY

$23.20

$

In Stock, only 1 left!

0

28

Ariens 06937300

CONTROL-CHOKE 5 HP
(Superseded to 53802600)

Note: (017, 018, 019, 300)

$38.68

$

Usually ships in 4-12 days

0

28

Ariens 06929000

CONTROL-CHOKE 3 HP

Note: (938015)

$

$

Not available

29

Ariens 03803300

LINE-PRIMER

$

$

Not available

30

Ariens 05514500

BSHG-FLG .325X.444X.440X.560

Note: (017, 018, 300)

$3.63

$

In Stock, Qty 20+

0

31

Ariens 03804100

PINION-DISCHARGE CHUTE 18T

$20.07

$

Usually ships in 4-12 days

0

32

Ariens 53800100

CRANK-CHUTE ASSY

Note: (Contains Items 33 through 38) (017, 018, 300)

$197.55

$

Usually ships in 4-12 days

0

33

Ariens 07514500

KNOB

Note: (017, 018, 300)

$23.42

$

In Stock, only 2 left!

0

34

Ariens 03803900

BSHG-SLV .510X.753X2.00

Note: (017, 018, 300)

$9.34

$

Usually ships in 4-12 days

0

35

Ariens 03804300

GEAR-CRANK TRANSFER 48T

Note: (017, 018, 300)

$21.07

$

Usually ships in 4-12 days

0

36

Ariens 06701100

@PIN-CTR .16X1.25 EXTPRSQCT YZ

Note: (017, 018, 300)

$1.68

$

Usually ships in 4-12 days

0

37

Ariens 03804200

PINION-CRANK TRANSFER 12T

Note: (017, 018, 300)

$14.48

$

Usually ships in 4-12 days

0

38

Ariens 03803600

SHAFT CHUTE CRANK TRANSFER

Note: (017, 018, 300)

$29.46

$

Usually ships in 4-12 days

0

39

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

Note: (017, 018, 300)

$2.24

$

In Stock, Qty 8

0

40

Ariens 07527800

PLUG-HOLE .50 DIA

$

$

Not available
