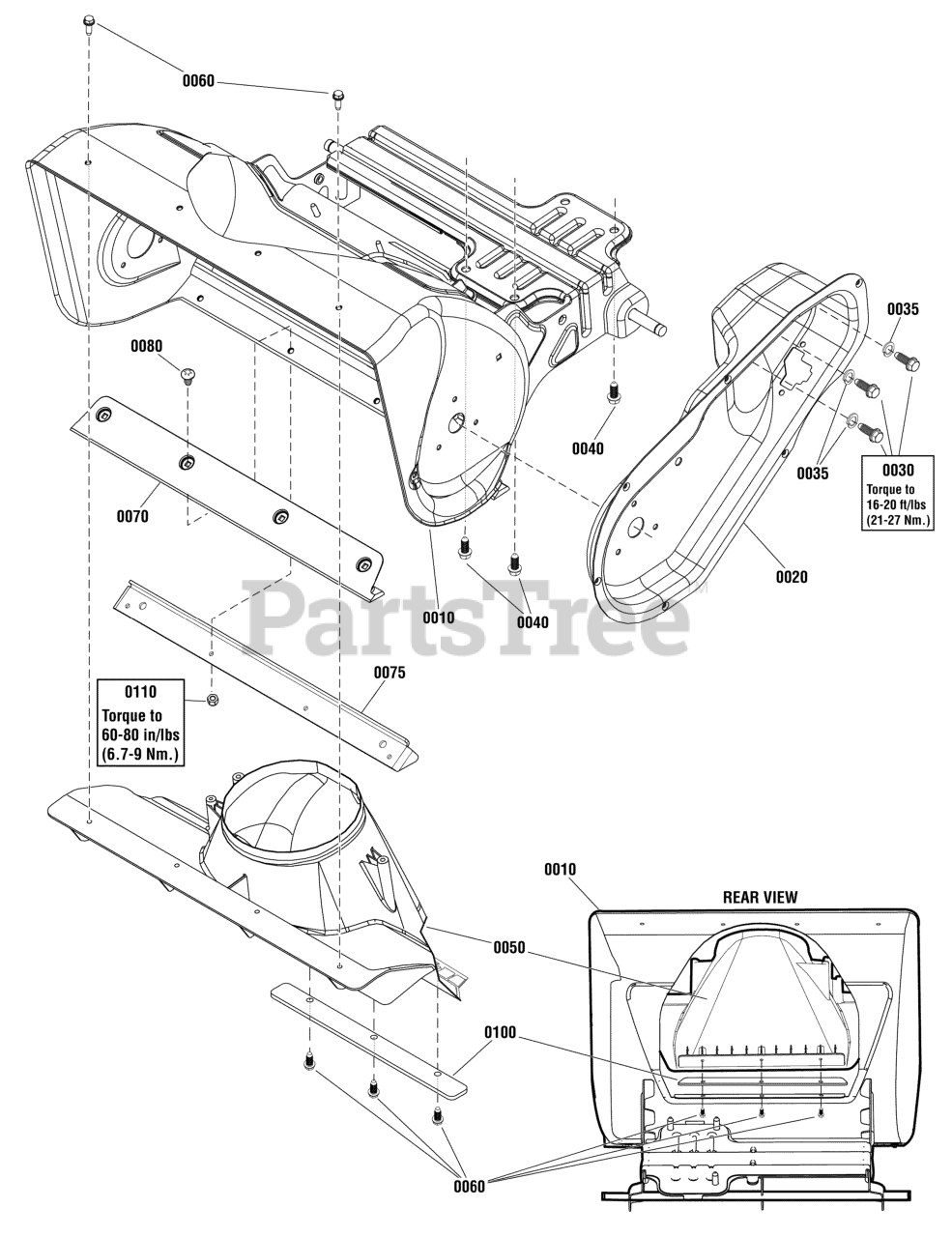

938022 (1695940) - Ariens Sno-Tek 22" Snow Blower, 8hp Briggs & Stratton (2010) Frame Group Parts Diagram

Sno-Tek 22" Snow Blower, 8hp Briggs & Stratton

Frame Group Parts Diagram

  • Title

0010

Murray 1739225A

FRAME ASSEMBLY
(Superseded to 1687744YP)

$362.99

$

Usually ships in 2-12 days

0

0020

Murray 1739100A

HOUSING, Drive
(Superseded to 1739100AYP)

$107.99

$

In Stock, only 4 left!

0

0030

Murray 1752876

CAPSCREW, Hex Head, 5/16-24 x 5/8
(Superseded to 1752876YP)

$4.49

$

In Stock, only 2 left!

0

0035

Murray 1917356

Lockwasher, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 6

0

0040

Murray 75246

SCREW, Hex Washer Head, Taptite, 3/8-16 x 1-1/4
(Superseded to 75246GS)

$4.49

$

Usually ships in 2-12 days

0

0050

Murray 1739555

CHIMNEY
(Superseded to 706427)

Note: Used without Service Kit 1687864, Refer to Chute Rotation Group

$112.99

$

In Stock, only 4 left!

0

0050

Murray 707849

CHIMNEY

Note: Used with Service Kit 1687864, Refer to Chute Rotation Group

$112.99

$

In Stock, only 4 left!

0

0060

Murray 1750444

SCREW, Hi-Low, 1/4-15 x 3/4
(Superseded to 7091081SM)

$4.49

$

In Stock, Qty 12

0

0070

Murray 1752606

SCRAPER BAR
(Superseded to 1687806)

$129.99

$

Usually ships in 2-12 days

0

0075

Murray 1752660A

SUPPORT, Scraper Blade
(Superseded to 1752660AYP)

$29.99

$

In Stock, only 4 left!

0

0080

Murray 7091200

SCREW, 1/4-20 x 1/2" Pan Head Self-Tap (Torx)
(Superseded to 7900067YP)

$4.49

$

In Stock, Qty 16

0

0100

Murray 1751553BZ

* SPACER, Chimney
(Superseded to 1751553BZYP)

$9.99

$

Usually ships in 2-12 days

0

0110

Murray 1752935

NUT, 1/4-20, Nylon Hex, CZ
(Superseded to 1752935YP)

$3.99

$

In Stock, Qty 9

0
