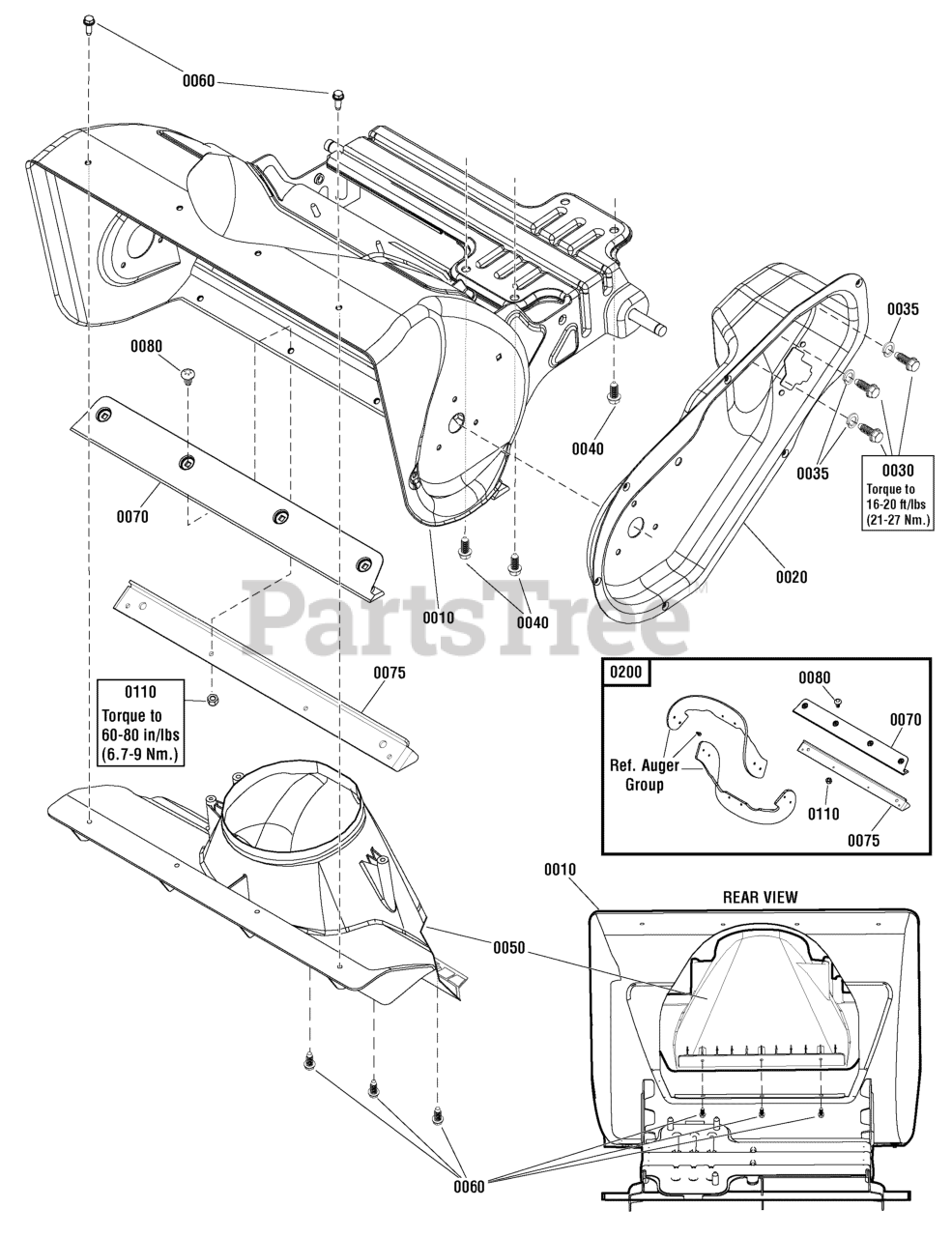

938022 (1696306-00) - Ariens Sno-Tek 22" Snow Blower, 8hp Briggs & Stratton (2012) Frame Group Parts Diagram

Sno-Tek 22" Snow Blower, 8hp Briggs & Stratton

Frame Group Parts Diagram

  • Title

0010

Murray 1739225AYP

FRAME ASSEMBLY
(Superseded to 1687744YP)

$341.99

$

Usually ships in 2-12 days

0

0020

Murray 1739100AYP

HOUSING, Drive

$101.99

$

In Stock, only 4 left!

0

0030

Murray 1752876YP

CAPSCREW, Hex Head, 5/16-24 x 5/8

$3.99

$

In Stock, only 2 left!

0

0035

Murray 1917356SM

WASHER, Lock Helical Spring
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0040

Murray 75246GS

SCREW, Hex Washer Head, Taptite, 3/8-16 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

0050

Murray 1739555YP

CHIMNEY
(Superseded to 707849)

Note: Used without Service Kit 1687864, Refer to Chute Rotation Group

$106.99

$

In Stock, only 1 left!

0

0050

Murray 707849

CHIMNEY

Note: Used with Service Kit 1687864, Refer to Chute Rotation Group

$106.99

$

In Stock, only 1 left!

0

0060

Murray 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ

$4.49

$

In Stock, Qty 18

0

0070

SCRAPER BAR

Note: (Included with Ref. No. 0200)

$

$

Not available

0075

Murray 1752660AYP

SUPPORT, Scraper Blade

Note: (Included with Ref. No. 0200)

$28.99

$

In Stock, Qty 5

0

0080

Murray 5025299X5YP

SCREW, 1/4-20 X 5/8

Note: (Included with Ref. No. 0200)

$4.99

$

In Stock, only 1 left!

0

0110

Murray 1752935YP

NUT, 1/4-20, Nylon Hex, CZ

Note: (Included with Ref. No. 0200)

$3.49

$

In Stock, Qty 9

0

0200

Murray 1687628YP

KIT, Scraper Bar & Flight
(Superseded to 1687806)

Note: (Includes Ref. Nos. 0070, 0075, 0080, 0110, Auger Flights & Hardware)

$121.99

$

In Stock, Qty 7

0
