938024 (SSR) - Ariens Professional 21" Snow Blower, Ariens AX 208cc engine (SN: 006528 & Above) Discharge Chute Parts Diagram

Professional 21" Snow Blower, Ariens AX 208cc engine

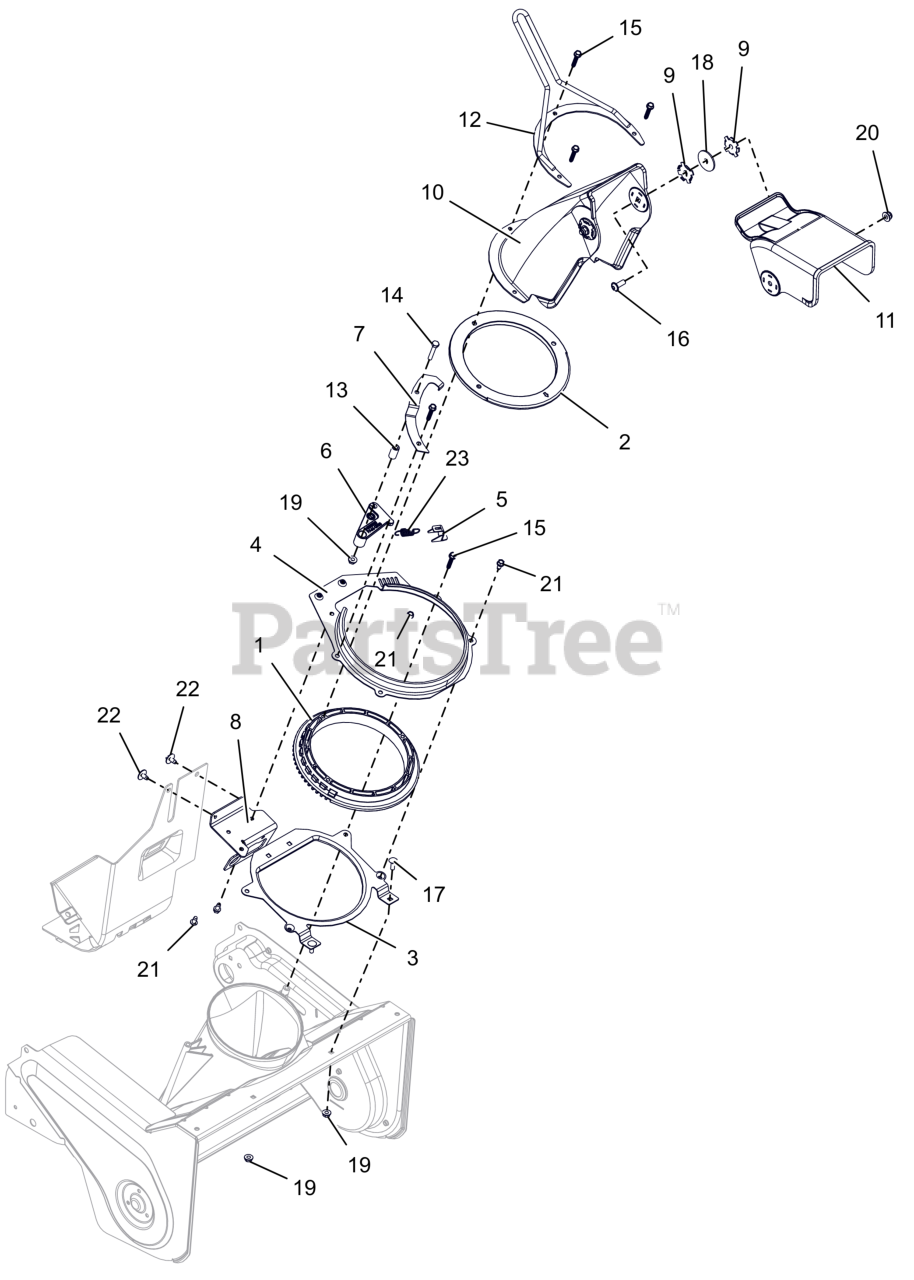

Discharge Chute Parts Diagram

  • Title

1

Ariens 05150600

GEAR, CHUTE RING

$23.99

$

Usually ships in 4-12 days

0

2

Ariens 04550000

GUARD, WATER

$3.99

$

Usually ships in 4-12 days

0

3

Ariens 04552651

RING, CHUTE MOUNT - LOWER

$16.99

$

Usually ships in 4-12 days

0

4

Ariens 04552751

RING, CHUTE MOUNT - UPPER

$31.99

$

In Stock, only 1 left!

0

5

Ariens 04553751

BRKT, SPRG

$12.99

$

Usually ships in 4-12 days

0

6

Ariens 04583900

ARM, PAWL

$13.99

$

Usually ships in 4-12 days

0

7

Ariens 04663551

PAWL ARM STOP

$18.99

$

In Stock, only 1 left!

0

8

Ariens 05123151

BRKT, CHUTE ROTATION - REAR

$12.99

$

Usually ships in 4-12 days

0

9

Ariens 05123400

PLATE, FRICTION

$3.49

$

Usually ships in 4-12 days

0

10

Ariens 05192600

CHUTE, DISCHARGE-SINGLE STAGE

$17.99

$

Usually ships in 4-12 days

0

11

Ariens 05192700

CAP, CHUTE-SINGLE STAGE
(Superseded to 53804400)

$40.99

$

Usually ships in 4-12 days

0

12

Ariens 05135259

HANDLE, ROTATION - MANUAL

$39.99

$

Usually ships in 4-12 days

0

13

Ariens 05501131

BSHG, SLV .265X.505X.995

$3.49

$

Usually ships in 4-12 days

0

14

Ariens 05901739

BLT, HEX .25-20X1.50 G5 ZCC

$1.49

$

In Stock, Qty 8

0

15

Ariens 06100237

SCR,PLASTITE .25-10X1.25 ZCC

$3.99

$

Usually ships in 4-12 days

0

16

Ariens 06100233

SCR,BTN-FLG .31-18X0.875

$3.99

$

Usually ships in 4-12 days

0

17

Ariens 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06401040

WSHR,FRICTION-.332X1.525X.094

$3.99

$

Usually ships in 4-12 days

0

19

Ariens 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$0.99

$

In Stock, Qty 13

0

20

Ariens 06500809

NUT,LK-NYL-FLG .31-18 G5ZC120

$1.49

$

In Stock, Qty 15

0

21

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

22

Ariens 07400138

SCR, TAP .25-20X.50 LG HWH ZCC

$1.49

$

In Stock, Qty 7

0

23

Ariens 08300532

SPRG, TENSION .052X.520X1.74

$3.49

$

Usually ships in 4-12 days

0
