938025 (SSRC) - Ariens Professional 21" Snow Blower, Ariens AX 208cc engine (SN: 000101 - 002771) Chute - Remote Parts Diagram

Professional 21" Snow Blower, Ariens AX 208cc engine

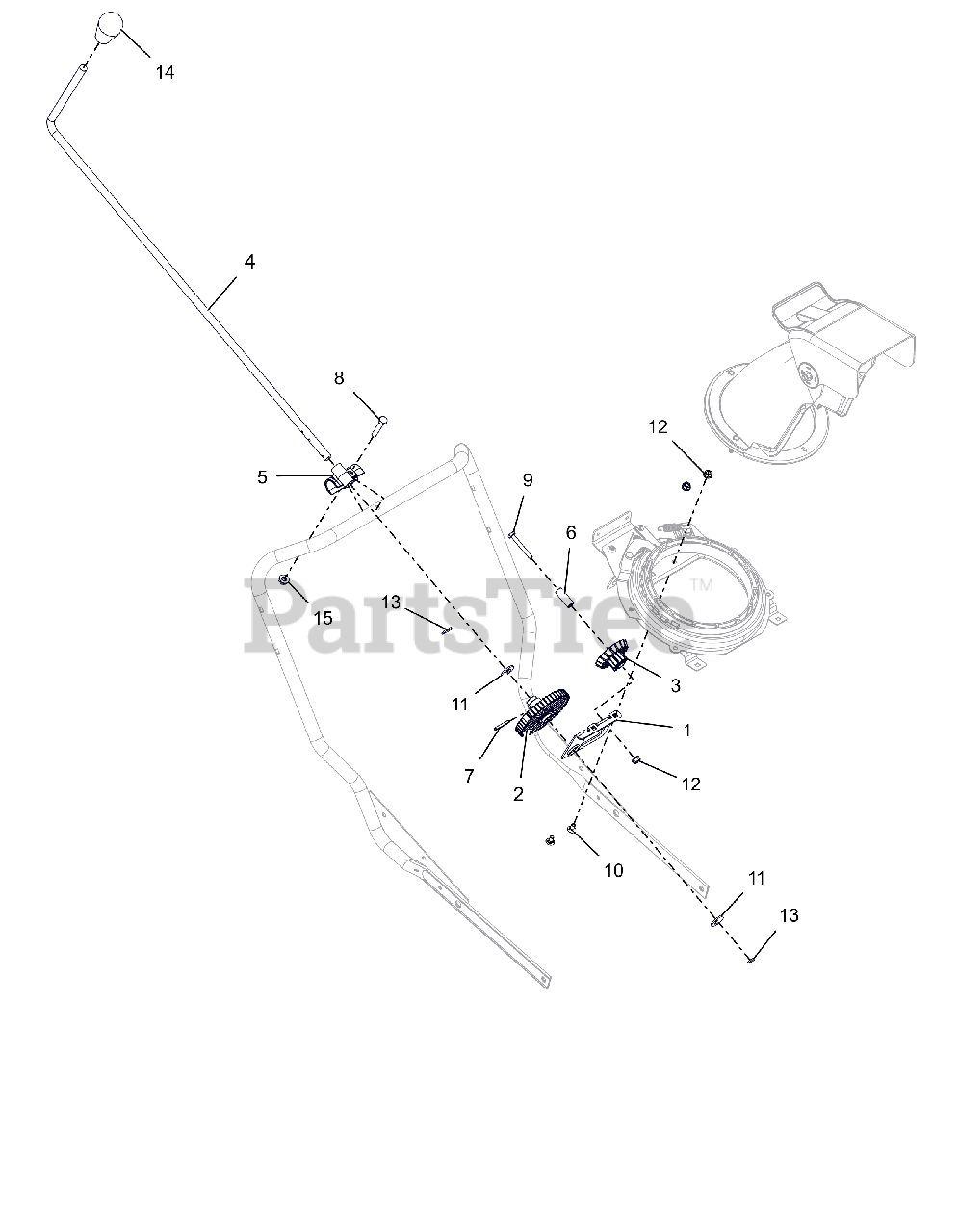

Chute - Remote Parts Diagram

  • Title

1

Ariens 05123051

BRKT, CHUTE ROTATION - FRONT

$7.99

$

Usually ships in 4-12 days

0

2

Ariens 05124000

GEAR, ROTATION - REMOTE SPUR

$19.99

$

Usually ships in 4-12 days

0

3

Ariens 05124100

GEAR, ROTATION - REMOTE COMBO

$5.99

$

Usually ships in 4-12 days

0

4

Ariens 05134600

ROD, ROTATION - CHUTE

$39.99

$

Usually ships in 4-12 days

0

5

Ariens 05134700

ROD, ROTATION - HOLDER

$11.99

$

Usually ships in 4-12 days

0

6

Ariens 05501321

BSHG,SLV - .265 X .505 X 1.341

$4.99

$

Usually ships in 4-12 days

0

7

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, only 4 left!

0

8

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

9

Ariens 05967100

@BLT-HEX .25-20X2.00 GR5 YWZC
(Superseded to 05901740)

$2.49

$

In Stock, only 2 left!

0

10

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$0.99

$

In Stock, Qty 7

0

11

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

13

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, only 2 left!

0

14

Ariens 07500420

KNOB,SOFT-TEARDROP,PUSH-ON BLK

$16.99

$

Usually ships in 4-12 days

0

15

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0
