938025 (SSRC) - Ariens Professional 21" Snow Blower, Ariens AX 208cc engine (SN: 000101 - 002771) Discharge Chute Parts Diagram

Professional 21" Snow Blower, Ariens AX 208cc engine

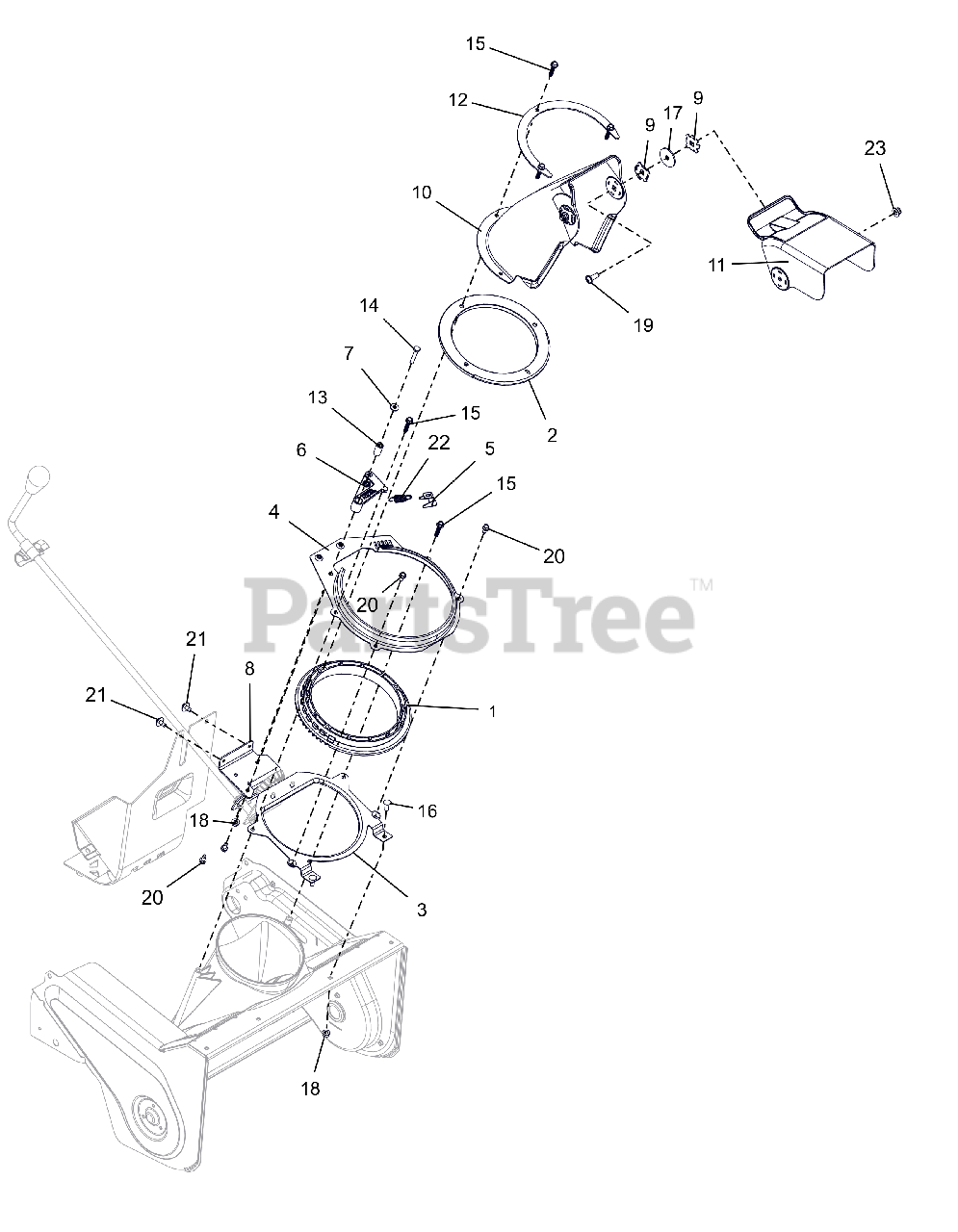

Discharge Chute Parts Diagram

  • Title

1

Ariens 05150600

GEAR, CHUTE RING

$23.99

$

Usually ships in 4-12 days

0

2

Ariens 04550000

GUARD, WATER

$3.99

$

Usually ships in 4-12 days

0

3

Ariens 04552651

RING, CHUTE MOUNT - LOWER

$16.99

$

Usually ships in 4-12 days

0

4

Ariens 04552751

RING, CHUTE MOUNT - UPPER

$31.99

$

In Stock, only 1 left!

0

5

Ariens 04553751

BRKT, SPRG

$12.99

$

Usually ships in 4-12 days

0

6

Ariens 04583900

ARM, PAWL

$13.99

$

Usually ships in 4-12 days

0

7

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

8

Ariens 05123151

BRKT, CHUTE ROTATION - REAR

$12.99

$

Usually ships in 4-12 days

0

9

Ariens 05123400

PLATE, FRICTION

$3.49

$

Usually ships in 4-12 days

0

10

Ariens 05134400

CHUTE,DISCHARGE - SINGLE STAGE
(Superseded to 53804600)

$59.99

$

Usually ships in 4-12 days

0

11

Ariens 53804400

CAP, CHUTE - W/DECAL

$40.99

$

Usually ships in 4-12 days

0

12

Ariens 05163451

BRKT, ROTATION - MANUAL

$22.99

$

Usually ships in 4-12 days

0

13

Ariens 05501131

BSHG, SLV .265X.505X.995

$3.49

$

Usually ships in 4-12 days

0

14

Ariens 05952500

@BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.49

$

In Stock, Qty 8

0

15

Ariens 06100214

SCR-TAP .25-10X1.25 HWH YWZC
(Superseded to 06100237)

$3.99

$

Usually ships in 4-12 days

0

16

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06401040

WSHR,FRICTION-.332X1.525X.094

$3.99

$

Usually ships in 4-12 days

0

18

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

19

Ariens 06100233

SCR,BTN-FLG .31-18X0.875

$3.99

$

Usually ships in 4-12 days

0

20

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 07400104

SCR-TAP .25-20X.50 LGHWH TR YZ
(Superseded to 07400138)

$1.49

$

In Stock, Qty 7

0

22

Ariens 08300532

SPRG, TENSION .052X.520X1.74

$3.49

$

Usually ships in 4-12 days

0

23

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 15

0
