938026 (S 18) - Ariens 18" Snow Blower, Loncin 99cc (SN: 020000 & Above) Belt Drive Parts Diagram

18" Snow Blower, Loncin 99cc

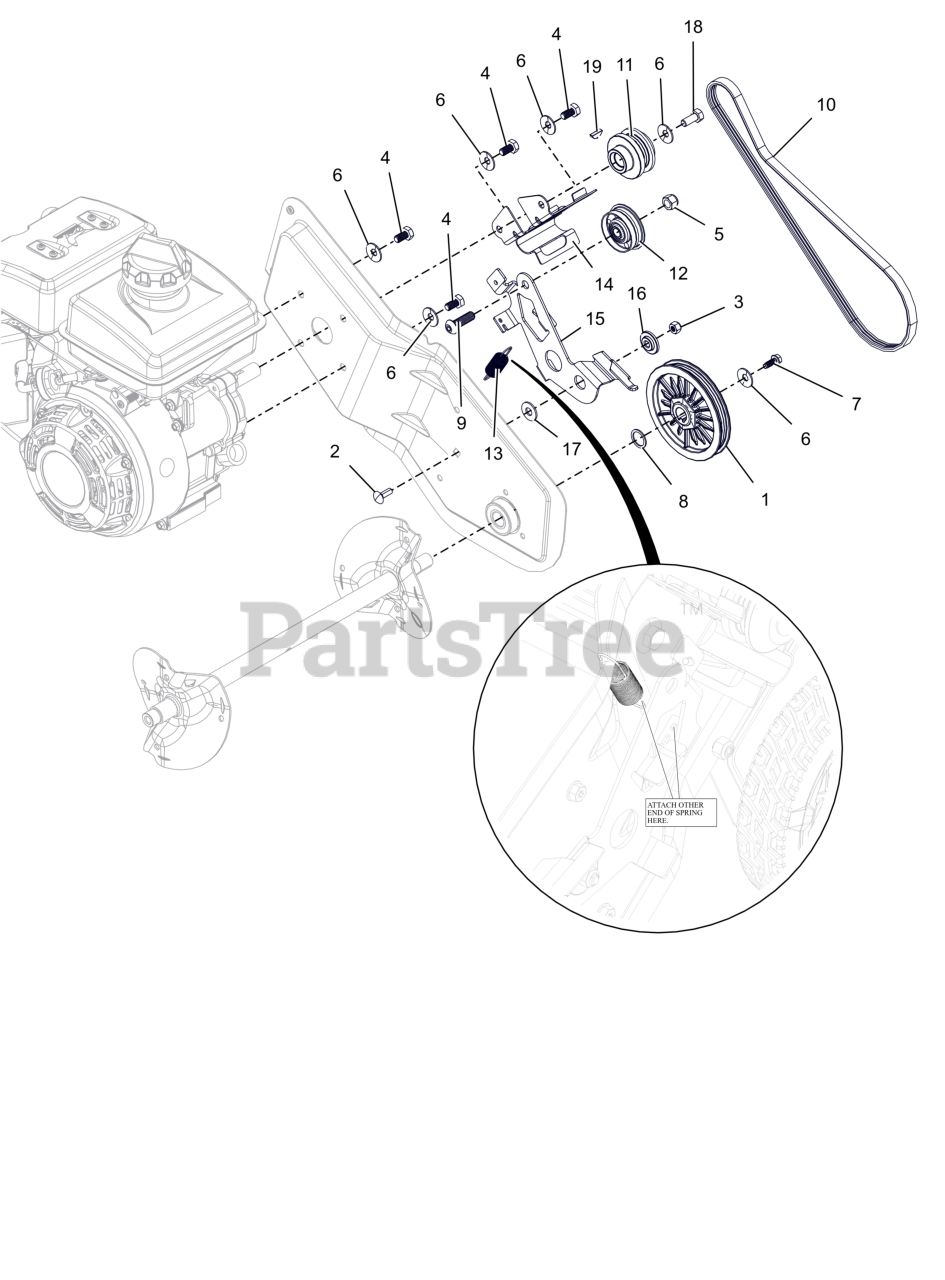

Belt Drive Parts Diagram

  • Title

1

Ariens 07350800

PULLEY, ASM ROTOR

$25.99

$

In Stock, only 1 left!

0

2

Ariens 06200501

BLT, RDHDSQSHK .25-20X0.750 (BLACK)

$3.49

$

Usually ships in 4-12 days

0

3

Ariens 06501008

NUT, NYLON .250 - 20 (BLACK)

$2.99

$

Usually ships in 4-12 days

0

4

Ariens 07001906

SCR, CAP - M8X1.25 H6 THREAD

$2.49

$

Usually ships in 4-12 days

0

5

Ariens 06500831

NUT,NYL .38-16 G5 ZCC

$2.49

$

In Stock, Qty 9

0

6

Ariens 07001908

WSHR, BEVEL SPRING LOCK

$2.99

$

Usually ships in 4-12 days

0

7

Ariens 07001840

1/4-20 X 5/8 TAPTITE

$2.49

$

In Stock, only 1 left!

0

8

Ariens 07001905

WSHR, THRUST

$3.49

$

Usually ships in 4-12 days

0

9

Ariens 07001907

3/8-16X1.25 BHCS

$2.49

$

Usually ships in 4-12 days

0

10

Ariens 07200908

V-BELT, RIBBED

$34.99

$

In Stock, Qty 18

0

11

Ariens 07350700

PULLEY, ENGINE

$18.99

$

Usually ships in 4-12 days

0

12

Ariens 07350900

PULLEY, IDLER

$14.99

$

Usually ships in 4-12 days

0

13

Ariens 08300718

SPRG, BRAKE

$2.99

$

Usually ships in 4-12 days

0

14

Ariens 09168600

GUIDE, BELT

$9.99

$

Usually ships in 4-12 days

0

15

Ariens 09168900

ARM, IDLER

$10.99

$

Usually ships in 4-12 days

0

16

Ariens 09169600

PULLEY, IDLER BUSHING

$2.49

$

Usually ships in 4-12 days

0

17

Ariens 06401220

WSHR, FLAT .375X.875X.065 (BLACK)

$2.99

$

Usually ships in 4-12 days

0

18

Ariens 05902014

BLT, HEX .31-24X.750 G5 ZCC

$1.49

$

In Stock, Qty 18

0

19

Ariens 06600229

KEY, WDRF .157 X .630

$

$

Currently unavailable
