938029 (SS 21) - Ariens Professional 21" Snow Blower, Ariens AX 208cc engine Auger Parts Diagram

Professional 21" Snow Blower, Ariens AX 208cc engine

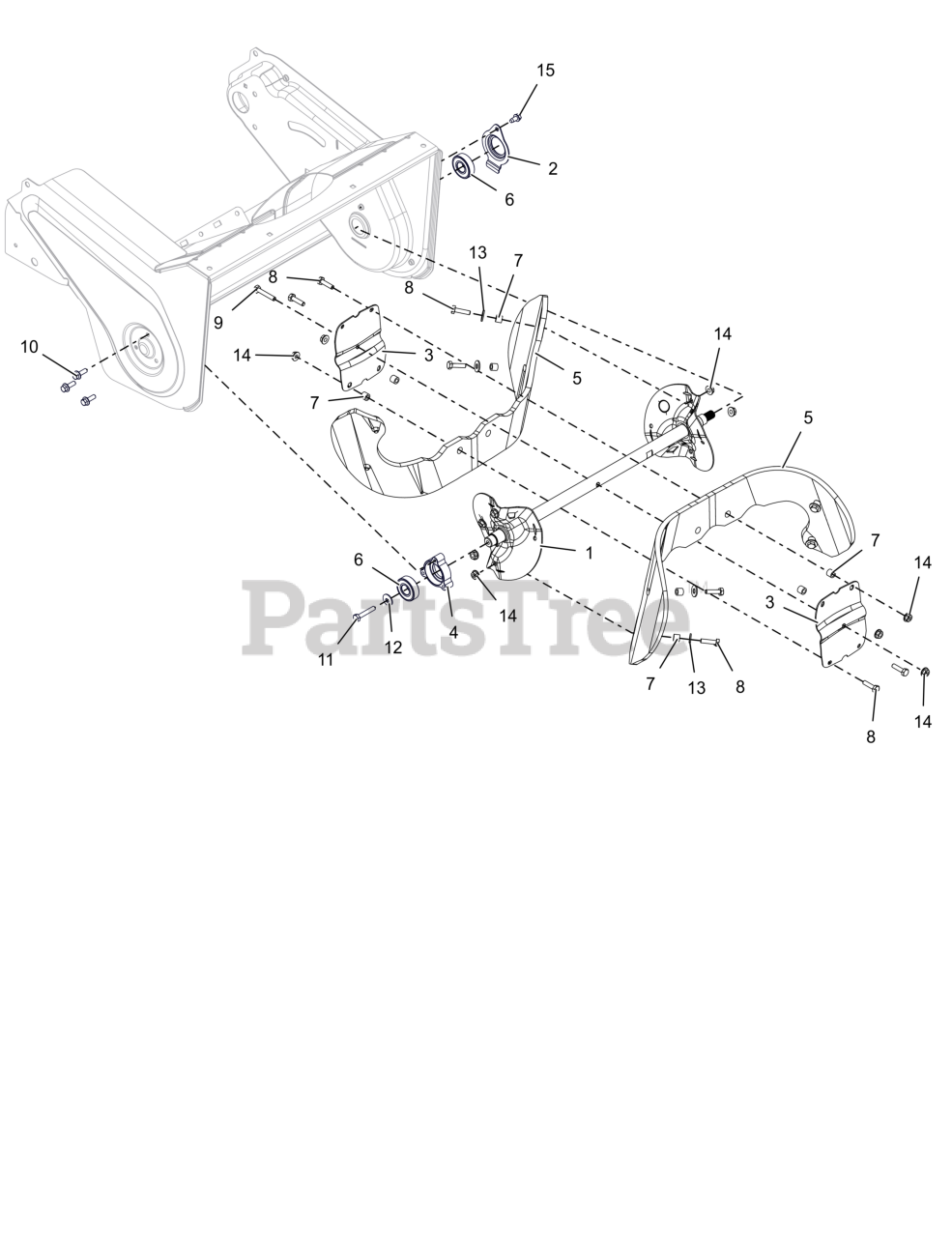

Auger Parts Diagram

  • Title

1

Ariens 05132451

AUGER, WELDMENT

$89.99

$

Usually ships in 4-12 days

0

2

Ariens 04524451

CAP, BRG

$10.99

$

In Stock, only 1 left!

0

3

Ariens 04763151

PLATE, CENTER AUGER

$19.99

$

In Stock, only 1 left!

0

4

Ariens 05122200

HOLDER, BEARING - PM

$19.99

$

Usually ships in 4-12 days

0

5

Ariens 05189600

FLIGHTING, AUGER
(Superseded to 09181900)

$58.99

$

In Stock, Qty 13

0

6

Ariens 05400711

BRG-BALL .669X1.575X.47(6203Y)

$22.99

$

In Stock, only 4 left!

0

7

Ariens 05501228

BUSHING,.26 ID X .44 OD X .375

$3.99

$

Usually ships in 4-12 days

0

8

Ariens 05901639

BLT,HEX .25-20X1.00 G5 ZCC

$1.99

$

In Stock, Qty 7

0

9

Ariens 05901739

BLT, HEX .25-20X1.50 G5 ZCC

$1.99

$

In Stock, only 2 left!

0

10

Ariens 05901830

BLT,HEX-FLG .25-20X.75 G5 ZCC

$3.99

$

Usually ships in 4-12 days

0

11

Ariens 05902020

BLT, HEX .25-20X1.50 G8 ZCC

$2.49

$

Usually ships in 4-12 days

0

12

Ariens 06401122

WSHR,BLVL-.250X.815X.061 ZFS

$7.49

$

Usually ships in 4-12 days

0

13

Ariens 06401124

WSHR, FLT .312X.734X.065 ZCC

$1.49

$

In Stock, Qty 17

0

14

Ariens 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$1.49

$

In Stock, Qty 13

0

15

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0
