938032 (SS 21 E) - Ariens Path-Pro 21" Single Stage Snow Blower, Ariens AX 208cc (SN: 000101 - 019999) Covers And Wheels - Electric Parts Diagram

Path-Pro 21" Single Stage Snow Blower, Ariens AX 208cc

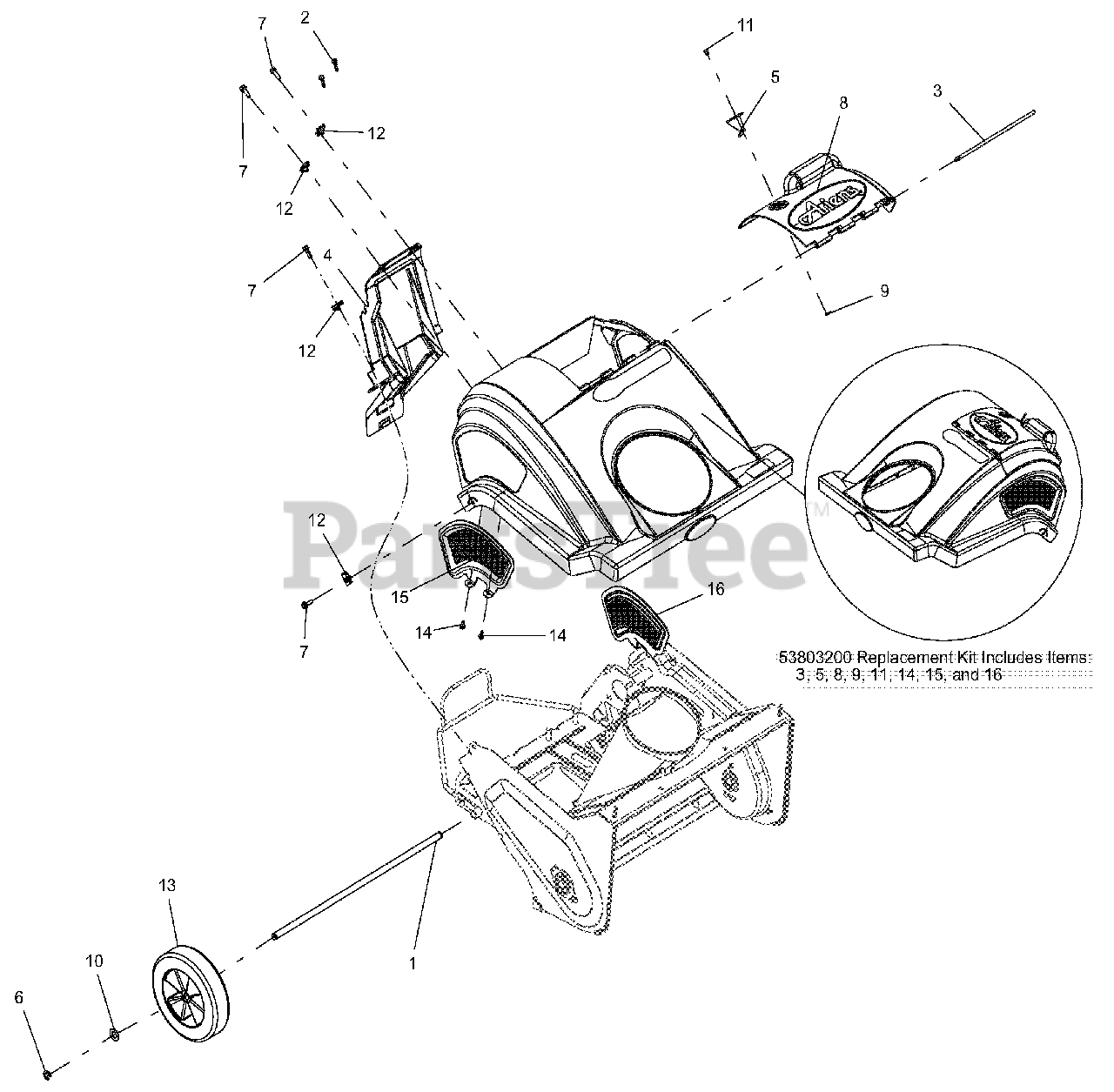

Covers And Wheels - Electric Parts Diagram

  • Title

1

Ariens 04523400

SHAFT, AXLE

$28.99

$

Usually ships in 4-12 days

0

2

Ariens 06100216

SCR-TAP #12X.75 BOSS INDHXHD
(Superseded to 06100232)

$1.49

$

Usually ships in 4-12 days

0

3

Ariens 04549900

ROD, COVER, SINGLE STAGE

$13.99

$

Usually ships in 4-12 days

0

4

Ariens 04551800

COVER, BACK ELECTRIC START
(Superseded to 53803700)

$50.99

$

Usually ships in 4-12 days

0

5

Ariens 04695351

TAB, LATCH

$18.99

$

Usually ships in 4-12 days

0

6

Ariens 05710200

RG-RTNG-EXT .500X.042 (E)

Note: (E)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$1.99

$

In Stock, Qty 19

0

8

Ariens 04540400

DOOR, COWEL COVER

$

$

Not available

9

Ariens 06400003

WSHR-FL-STL .196X.500X.06 YZ
(Superseded to 06401029)

$2.49

$

Usually ships in 4-12 days

0

10

Ariens 06425300

WSHR-FL-STL.531X1.00X.063 YWZC
(Superseded to 06401115)

$0.99

$

In Stock, Qty 12

0

11

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

Note: (#64) YWZC

$1.49

$

In Stock, only 3 left!

0

12

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

13

Ariens 07149900

WHL 7.50" .50 BORE, 1.50 HUB

$17.99

$

In Stock, Qty 20+

0

14

Ariens 07400107

SCR-TAP #10X.50 BOSS INDHXHD

$2.99

$

Usually ships in 4-12 days

0

15

Ariens 04523800

RIGHT VENT, COVER

$6.49

$

Usually ships in 4-12 days

0

16

Ariens 04523700

VENT, COVER LEFT

$6.49

$

Usually ships in 4-12 days

0
