938034 (SS 21 E) - Ariens Path-Pro 21" Single Stage Snow Blower, Ariens AX 136cc (SN: 000101 - 019999) Frame Parts Diagram

Path-Pro 21" Single Stage Snow Blower, Ariens AX 136cc

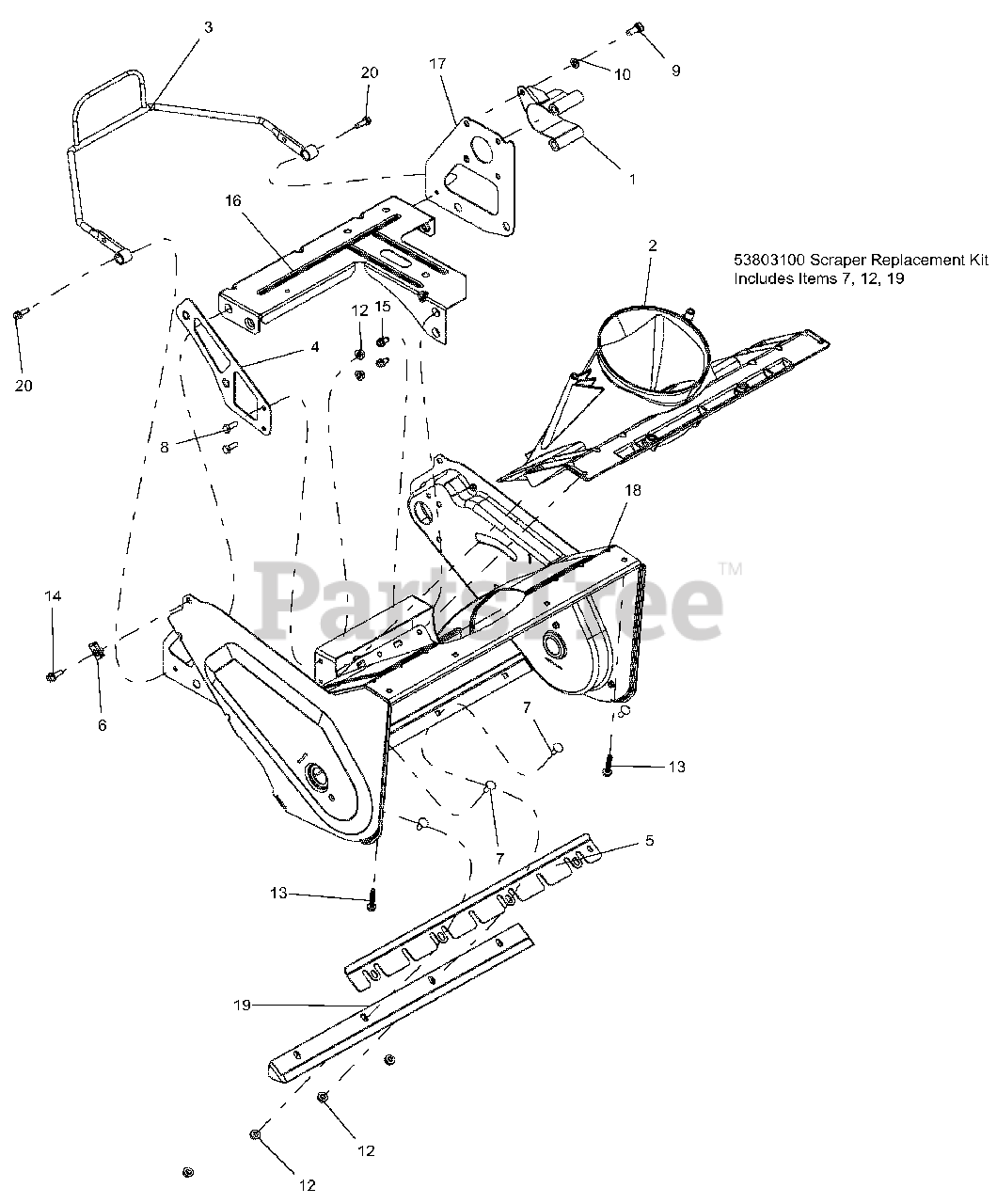

Frame Parts Diagram

  • Title

1

Ariens 04522851

FRAME, SPCR PTO
(Superseded to 09395951)

$52.99

$

Usually ships in 4-12 days

0

2

Ariens 04523500

NECK, DISCHARGE

$48.99

$

Usually ships in 4-12 days

0

3

Ariens 04552851

ENGINE, GUARD
(Superseded to 04552800)

$46.99

$

Usually ships in 4-12 days

0

4

Ariens 04666401

FRAME, SUPPORT BRACKET

$

$

Not available

5

Ariens 04672951

SCRAPER SUPPORT

$23.99

$

In Stock, only 1 left!

0

6

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 14

0

8

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 5

0

9

Ariens 05901525

BLT-HEX .31-24X.75 GR5YZ EP30

$2.99

$

Usually ships in 4-12 days

0

10

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 14

0

12

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06100214

SCR-TAP .25-10X1.25 HWH YWZC
(Superseded to 06100237)

$3.99

$

Usually ships in 4-12 days

0

14

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$1.99

$

In Stock, Qty 20+

0

15

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 04522551

FRAME, ENGINE
(Superseded to 53804700)

$61.99

$

Usually ships in 4-12 days

0

17

Ariens 04522901

FRAME, DRIVE BRACKET

$

$

Not available

18

Ariens 04522451

WLDMT, FRAME
(Superseded to 53804800)

$257.99

$

Usually ships in 4-12 days

0

19

Ariens 53803100

KIT, SCRAPER REPLACEMENT

$65.99

$

In Stock, only 1 left!

0

20

Ariens 07400111

SCR-TAP-PM .25-20X.75 TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 9

0
