939003 (ST 520 E) - Ariens 20" Snow Blower, 5hp Tecumseh (SN: 000101 & Above) Gearcase And Impeller Parts Diagram

20" Snow Blower, 5hp Tecumseh

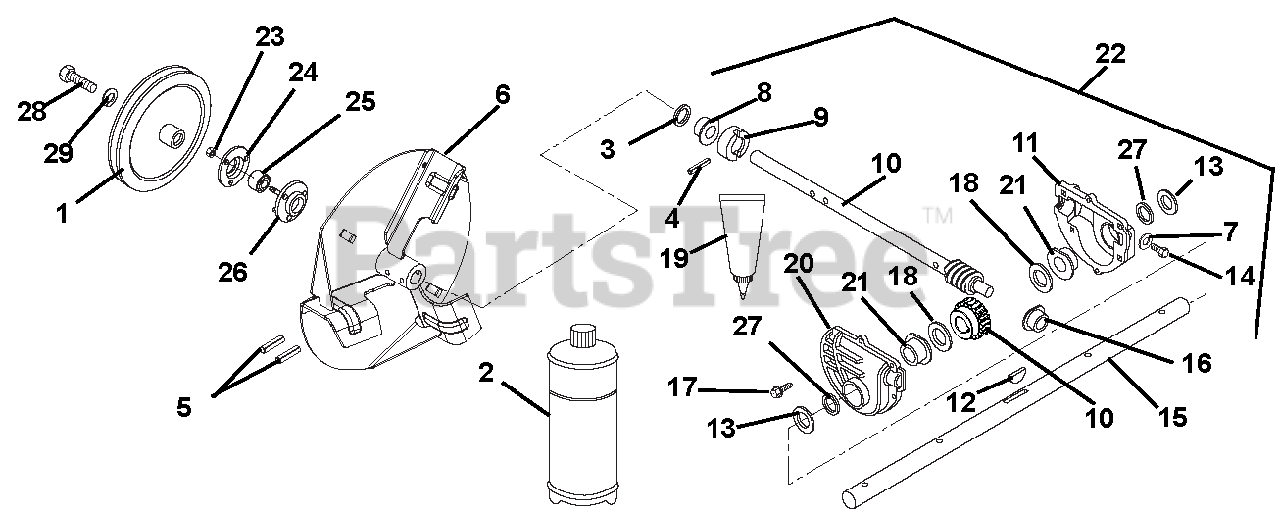

Gearcase And Impeller Parts Diagram

  • Title

1

Ariens 00187000

PULLEY, 4L W/HUB, .75 X 8.5
(Superseded to 52001800)

$80.99

$

In Stock, only 1 left!

0

2

Ariens 00008000

ARIENS 16 OZ.BOTTLE OF L2 LUBE
(Superseded to 00068800)

$29.99

$

In Stock, Qty 20+

0

3

Ariens 05600004

SEAL-OIL.748X1.378X.276 RBR OD

$9.49

$

In Stock, only 2 left!

0

4

Ariens 05804900

@PIN-GRV .188X1.25 TP E ALLOY

$7.99

$

In Stock, only 2 left!

0

5

Ariens 05803700

PIN-ROLL .250X1.75

$1.49

$

In Stock, Qty 20+

0

6

Ariens 00426651

WELDMENT, IMPELLER,12" 3 BLADE

$288.99

$

Usually ships in 4-12 days

0

7

Ariens 06442500

WSHR-FIBER .437X.656X.032

$1.49

$

In Stock, Qty 6

0

8

Ariens 05511200

BSHG-FLG .750X1.000X.750X1.250

$12.99

$

In Stock, Qty 5

0

9

Ariens 00272100

THRUST COLLAR, .75" ID

$7.49

$

In Stock, only 2 left!

0

10

Ariens 53212500

SHAFT AND WORM GEAR ASSEMBLY

$127.99

$

In Stock, only 2 left!

0

11

Ariens 00291100

GEARCASE CASTING, MACHINED LH
(Superseded to 52004900)

$64.99

$

Usually ships in 4-12 days

0

12

Ariens 06609300

KEY-WDRF .19X.63 HRD #61

$3.99

$

In Stock, only 2 left!

0

13

Ariens 06439000

@WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$2.49

$

In Stock, Qty 20+

0

14

Ariens 07417000

SCR-TAP .38-16X.75 ROLOK YZ WX
(Superseded to 07400201)

$5.49

$

In Stock, only 2 left!

0

15

Ariens 00260500

SHAFT, RAKE - 20" (.750 DIA)

$78.99

$

Usually ships in 4-12 days

0

16

Ariens 05520600

BSHG-FLG .502X1X.750

$10.99

$

In Stock, only 2 left!

0

17

Ariens 07412400

@SCR-TAP .25-20X1.00 HWH TR YZ
(Superseded to 07400133)

$3.99

$

In Stock, Qty 20+

0

18

Ariens 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$4.99

$

In Stock, Qty 20+

0

19

Ariens 00031700

LOCTITE 518 GASKET--6ML TUBE

$20.99

$

In Stock, only 2 left!

0

20

Ariens 00291200

GEARCASE CASTING, MACHINED RH
(Superseded to 52003300)

$117.99

$

In Stock, only 3 left!

0

21

Ariens 05531100

BSHG-FLG .753X1.127X.500X1.501

$9.99

$

In Stock, only 2 left!

0

22

Ariens 53212600

GEARCASE, 20" ALUM, SMALL CD

Note: (Contains 3-5, 8-13, 15-22, 28)

$302.99

$

In Stock, only 1 left!

0

23

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 01014200

BEARING FLANGE

$6.99

$

In Stock, Qty 8

0

25

Ariens 05406300

BRG-BALL .750X1.750X.50

$29.99

$

In Stock, Qty 11

0

26

Ariens 00428700

BEARING FLANGE

$21.99

$

In Stock, only 2 left!

0

27

Ariens 05618900

SEAL-OIL .750X1.375X.250

$13.99

$

In Stock, Qty 7

0

28

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$2.49

$

In Stock, Qty 20+

0

29

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$1.49

$

In Stock, Qty 20+

0
