939400 - Ariens Sno-Tek 22" Snow Blower, 208cc LCT (SN: 009785 & Above) Engine And Belt Drive Parts Diagram

Sno-Tek 22" Snow Blower, 208cc LCT

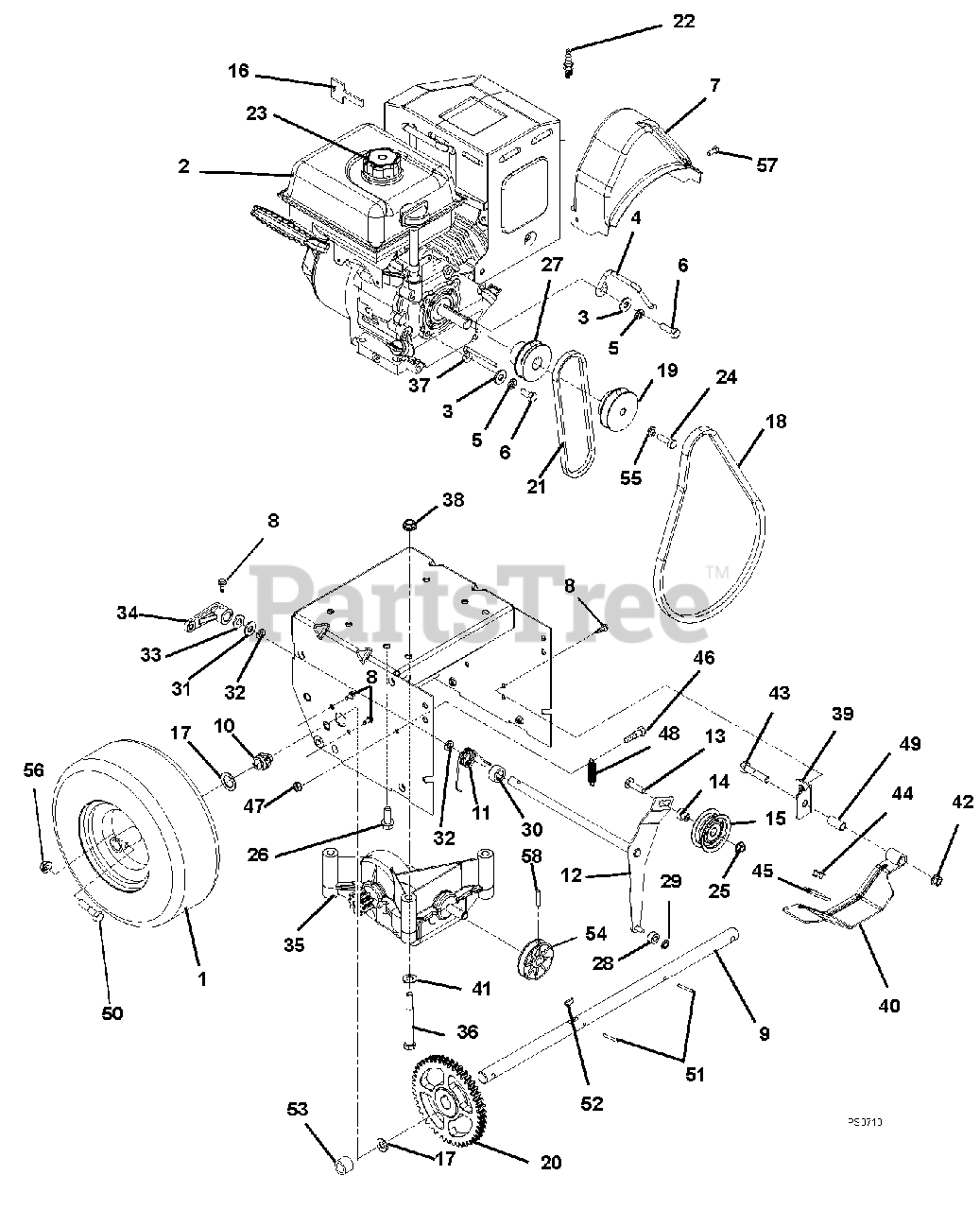

Engine And Belt Drive Parts Diagram

  • Title

1

Ariens 07100811

TIRE/WHEEL, 13X4.10-6 K398A
(Superseded to 07101238)

$79.99

$

In Stock, Qty 12

0

Ariens 07100814

TIRE, 13" K398A

$68.99

$

In Stock, Qty 7

0

Ariens 07105000

TUBE

$11.99

$

Usually ships in 4-12 days

0

2

Ariens 08200507

ENGINE,LCT STORMFORCE 208 RECL

Note: (939400)

$

$

Not available

Ariens 08200425

ENGINE,LCT STORMFORCE 208 RECL

Note: (939301)

$

$

Not available

3

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

4

Ariens 00498300

FINGER, BELT

$14.99

$

Usually ships in 4-12 days

0

5

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

6

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 00497200

COVER, BELT

$20.99

$

Usually ships in 4-12 days

0

8

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 03881300

AXLE, 939,XXX W/LG TIRES

$

$

Not available

10

Ariens 05500101

BSHG .75X1.125X.65

$9.99

$

In Stock, Qty 7

0

11

Ariens 08300015

SG-TORS .067X.88

$2.49

$

In Stock, Qty 8

0

12

Ariens 02000800

WELDMENT, ATTACHMENT IDLER ARM

$

$

Not available

13

Ariens 06200008

@BLT-RHDSHSQNK.31-18X1.25 G5YZ
(Superseded to 06200310)

$1.49

$

In Stock, only 1 left!

0

14

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.49

$

In Stock, Qty 6

0

15

Ariens 01213200

IDLER
(Superseded to 52007000)

$39.99

$

In Stock, Qty 15

0

16

Ariens 07500111

KEY, PUSH/PULL LCT (2/PACKAGE)
(Superseded to 20000027)

$3.99

$

In Stock, only 1 left!

0

17

Ariens 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

$0.99

$

In Stock, Qty 6

0

18

Ariens 07200108

V-BELT, 4L-RAW EDGE

$21.99

$

In Stock, Qty 20+

0

19

Ariens 03776900

SHEAVE, ENGINE

$22.99

$

Usually ships in 4-12 days

0

20

Ariens 03899400

GEAR, AXLE 45T

$28.99

$

Usually ships in 4-12 days

0

21

Ariens 07200109

V-BELT, 3L-STRETCH FIT

$17.99

$

In Stock, only 3 left!

0

22

Ariens 21547400

PLUG, SPARK
(Superseded to 21563037)

$3.49

$

In Stock, Qty 20+

0

23

Ariens 07500112

CAP, FUEL TANK BLACK

$11.99

$

Usually ships in 4-12 days

0

24

Ariens 05960300

BLT-HEX .38-24X1.0 YWZC GR5

$2.99

$

In Stock, only 1 left!

0

25

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 07400010

SCR-TAP .38-16X1.0 HWH YZ W/VT

$

$

Not available

27

Ariens 00499500

SHEAVE, DRIVE

$38.99

$

Usually ships in 4-12 days

0

28

Ariens 05500820

BSHG,SLV .270 X .750 X .250

$2.49

$

In Stock, only 2 left!

0

29

Ariens 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 17

0

30

Ariens 05500107

BSHG-SLV .510X.751X.475

$1.49

$

In Stock, only 2 left!

0

31

Ariens 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$2.49

$

In Stock, Qty 16

0

32

Ariens 05500028

BUSHING, POLYLINER-.50 SNAPIN

$2.49

$

In Stock, Qty 13

0

33

Ariens 06400005

WSHR-WAVE .50X.75X.015 .13FRHT

$2.99

$

In Stock, Qty 10

0

34

Ariens 01987100

ARM, CLUTCH - ATTACHMENT

$17.99

$

Usually ships in 4-12 days

0

35

Ariens 04164600

TRANSMISSION, GT H0 W/O PULLEY

$161.99

$

Usually ships in 4-12 days

0

36

Ariens 05960900

@BLT-HEX .38-16X3.50 GR5 YWZC
(Superseded to 05901818)

$3.99

$

Usually ships in 4-12 days

0

37

Ariens 02411000

BELT FINGER

$9.49

$

In Stock, only 1 left!

0

38

Ariens 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

39

Ariens 00495251

BRACKET, MOUNT - BRAKE

$11.99

$

Usually ships in 4-12 days

0

40

Ariens 00495300

ARM, BRAKE
(Superseded to 52000500)

$22.99

$

In Stock, only 3 left!

0

41

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

42

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

43

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

Usually ships in 4-12 days

0

44

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$0.99

$

In Stock, Qty 10

0

45

Ariens 00180500

PAD, BRAKE

$10.99

$

In Stock, Qty 5

0

46

Ariens 05900030

BLT-SHLDR .31X.50 .25-20X.438

$5.99

$

Usually ships in 4-12 days

0

47

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 17

0

48

Ariens 08300029

SG-TENS .06X.46X2.00

$5.99

$

Usually ships in 4-12 days

0

49

Ariens 05500106

BSHG-SLV .385X.500X1.045

$1.99

$

In Stock, Qty 13

0

50

Ariens 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.49

$

Usually ships in 4-12 days

0

51

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, only 4 left!

0

52

Ariens 06601200

KEY-WDRF .25X.750X.313 SAE91

$2.99

$

In Stock, Qty 5

0

53

Ariens 05501005

BSHG-SLV .766 X 1.065 X 1.289

$9.49

$

Usually ships in 4-12 days

0

54

Ariens 00499701

PULLEY, COMPOSITE 3L INPUT

$5.99

$

Usually ships in 4-12 days

0

55

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0

56

Ariens 06528700

@NUT-LK-CTR-FLG .31-18 YZ GR F
(Superseded to 06500840)

$0.99

$

In Stock, Qty 8

0

57

Ariens 07400104

SCR-TAP .25-20X.50 LGHWH TR YZ
(Superseded to 07400138)

$1.49

$

In Stock, Qty 7

0

58

Ariens 05800204

PIN-ROLL, 5MMX26MM

$1.99

$

In Stock, only 2 left!

0
