9397-0 - Generac 5,000 Watt Portable Generator C-5000 AC Generator - No. 72900 Parts Diagram

5,000 Watt Portable Generator

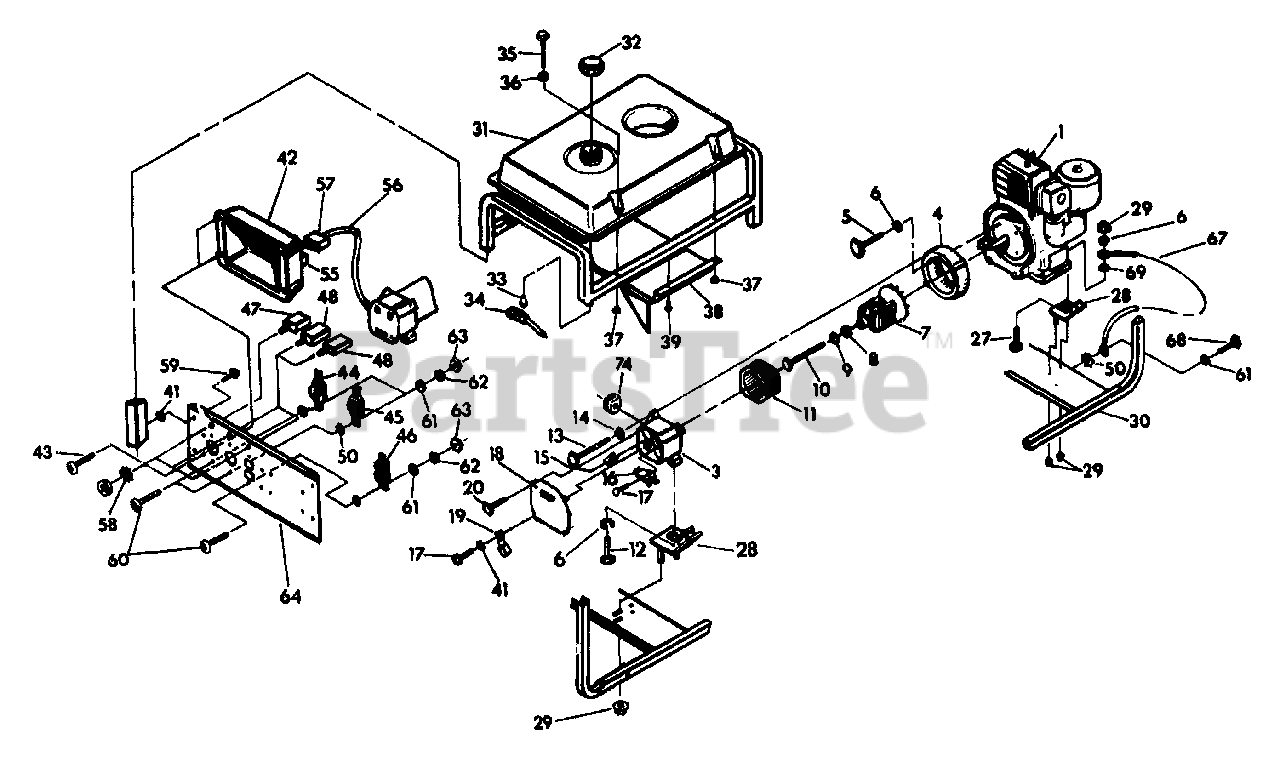

C-5000 AC Generator - No. 72900 Parts Diagram

  • Title

1

Briggs & Stratton 82335

10 H.P. Tecumseh Engine with Low Oil Shutdown

$

$

Currently unavailable

3

Briggs & Stratton 66825

Rear Bearing Carrier

$

$

Currently unavailable

4

Briggs & Stratton 66365D

Housing Adaptor
(Superseded to 66365DGS)

$70.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 22336

5/16"-24 x 3/4" Hex Head Screw

$

$

Not available

6

Briggs & Stratton 22129

M8 Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

7

Briggs & Stratton 74716

Rotor Assembly

$

$

Not available

8

Briggs & Stratton 65791

Bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 67451

Special Washer

$

$

Currently unavailable

10

Briggs & Stratton 75431

5/16"-24 x 8-1/2" Bolt
(Superseded to 75431GS)

$4.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 79636

Stator Assembly

$

$

Currently unavailable

12

Briggs & Stratton 70644

M8 x 20mm Pan Head Screw
(Superseded to 70644GS)

$4.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 66449D

M6-1.0 x 130mm Bolt

$

$

Currently unavailable

14

Briggs & Stratton 22097

M6 Lock Washer
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 66850

Bridge Rectifier
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 66386

Brush Holder Assembly
(Superseded to 66386GS)

$23.99

$

In Stock, only 4 left!

0

17

Briggs & Stratton 66849

M5-0.8 x 15mm Screw
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton 67025

Bearing Carrier Cover

$

$

Currently unavailable

19

Briggs & Stratton 25433

Grounding Lug

$

$

Not available

20

Briggs & Stratton 74908

M5-0.8 x 10mm Hex Screw
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 76222

M8 x 40mm Pan Head Screw
(Superseded to 76222GS)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 70642

Vibration Mount
(Superseded to 70642GS)

$31.99

$

In Stock, only 3 left!

0

29

Briggs & Stratton 52858

M8-1.25 Flange Lock Nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 1 left!

0

30

Briggs & Stratton 77840

Cradle Assembly

$

$

Not available

31

Briggs & Stratton 77374

Fuel Tank

$

$

Currently unavailable

32

Briggs & Stratton 84582

Fuel Tank Cap

$

$

Currently unavailable

33

Briggs & Stratton 78299

Plastic Tank Bushing
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

34

Briggs & Stratton 78298

Plastic Tank Valve
(Superseded to 7078298YP)

$192.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 78831

M6-1.0 x 55mm Hex Screw

$

$

Currently unavailable

36

Briggs & Stratton 78830

Special Black Washer
(Superseded to 78830GS)

$1.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 77395

M6 Hex Lock Nut
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 78951B

Heat Shield

$

$

Currently unavailable

39

Briggs & Stratton 56892

No. 10-24 x 3/8" Crimptite Screw
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 22769

No. 10 Shakeproof Washer
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 81919

Plastic Box
(Superseded to 81919GS)

$136.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 82308

Self Tap STC 3 x 18-TPZ
(Superseded to 82308GS)

$2.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 68868

120 volts, 30 amp Twistlock Outlet
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 68867

120/240 volts, 20 amp Twistlock Outlet
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 68759

120 volts, 20 amp Duplex Outlet
(Superseded to 68759GS)

$24.99

$

In Stock, only 2 left!

0

47

75207A

30 amp Circuit Breaker

$

$

Not available

48

Briggs & Stratton 75207

20 amp Circuit Breaker
(Superseded to 209872GS)

$9.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 23365

No. 6 Shakeproof Washer
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

55

Briggs & Stratton 22694

Receptacle Housing
(Superseded to 22694GS)

$5.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 82860

Black Sleeving

$

$

Currently unavailable

57

Briggs & Stratton 22695

Tab Housing
(Superseded to 22695GS)

$6.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 82881

Internal Lock Washer
(Superseded to 82881GS)

$1.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 75494

Self-drilling Screw

$

$

Not available

60

Briggs & Stratton 75475

M4-0.7 x 10mm Pan Head Screw

$

$

Not available

61

Briggs & Stratton 38150

No. 8 Flat Washer
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 22264

No. 8 Lock Washer

$

$

Not available

63

Briggs & Stratton 51715

M4-0.7 Hex Nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 81898

Control Panel
(Superseded to 81898GS)

$217.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 10953621

Ground Wire

$

$

Currently unavailable

68

Briggs & Stratton 24911

Taptite Screw
(Superseded to 24911GS)

$3.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 27482

5/16" Shakeproof Washer
(Superseded to 27482GS)

$3.49

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 67022

Rubber Grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 25244

5/16-18 Hex Nut
(Superseded to 25244GS)

$3.49

$

Usually ships in 2-12 days

0
