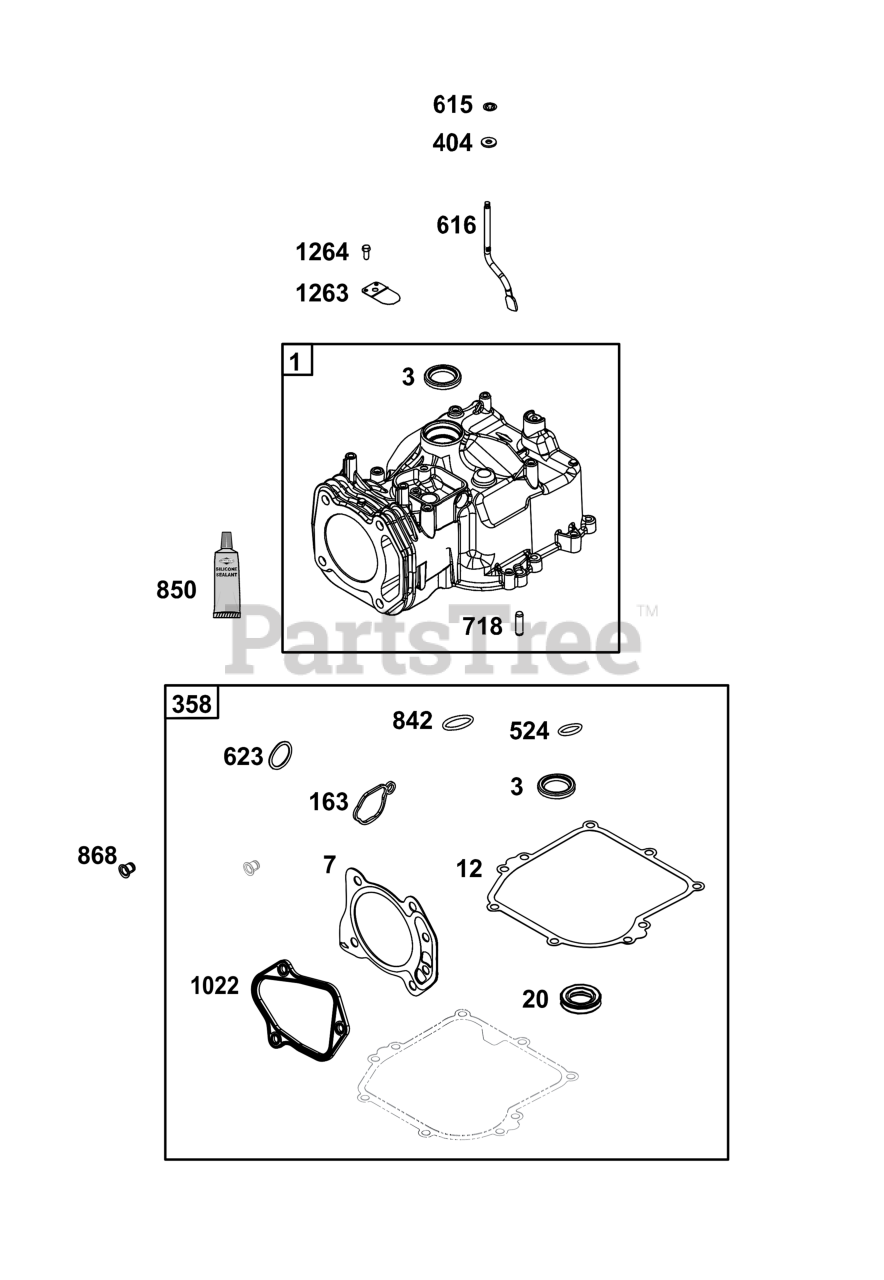

93J02-0172-F1 - Briggs & Stratton Vertical Engine Cylinder Group Parts Diagram

Vertical Engine

Cylinder Group Parts Diagram

  • Title

1

Briggs & Stratton 592359

CYLINDER ASSEMBLY

$

$

Not available

3

Briggs & Stratton 299819S

SEAL, Oil

Note: (Magneto Side)

$5.99

$

In Stock, Qty 19

0

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

12

GASKET, Crankcase

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

20

SEAL, Oil

Note: (PTO Side) (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

163

GASKET, Air Cleaner

Note: (Part information located in Carburetor Group.)

$

$

Not available

358

GASKET SET, Engine

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

404

Briggs & Stratton 690272

WASHER

Note: (Governor Crank)

$4.49

$

In Stock, only 3 left!

0

524

SEAL, O-Ring

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

615

Briggs & Stratton 690340

RETAINER, Governor Shaft

$4.99

$

In Stock, Qty 10

0

616

Briggs & Stratton 590516

CRANK, Governor

$13.99

$

Usually ships in 2-12 days

0

623

SEAL, O-Ring

Note: (Part information located in Carburetor Group.)

$

$

Not available

718

Briggs & Stratton 690959

PIN, Locating

$7.49

$

In Stock, only 1 left!

0

842

SEAL, O-Ring

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

850

SEALANT, Liquid

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1022

GASKET, Rocker Cover

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1263

Briggs & Stratton 697124

REED, Breather

$8.49

$

In Stock, only 2 left!

0

1264

Briggs & Stratton 793453

SCREW

Note: (Breather Reed)

$4.49

$

Usually ships in 2-12 days

0
