94-9712 - Toro Brake Linkage Kit BRAKE UPDATE Parts Diagram

Brake Linkage Kit

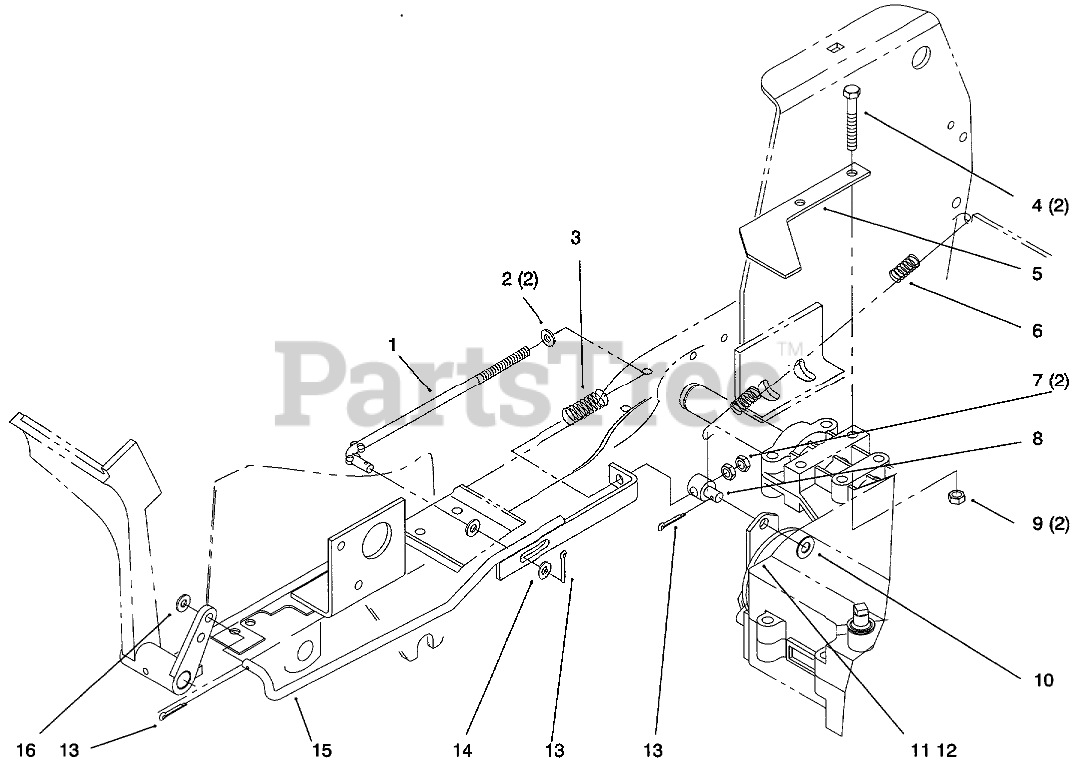

BRAKE UPDATE Parts Diagram

  • Title

1

Toro 94-1729

ROD - SPRING

$37.99

$

Usually ships in 3-6 days

0

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 19

0

3

Toro 94-1734

SPRING - COMPRESSION

$

$

Not available

4

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

5

Toro 94-1723-03

STOP - BRAKE

$

$

Not available

6

Toro 94-1733

SPRING - EXTENSION

$

$

Not available

7

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

8

Toro 94-2688

TRUNION

$

$

Not available

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 799021

Pad-Brake 2/Pkg

$

$

Currently unavailable

12

Toro 790043

Disk

$

$

Currently unavailable

13

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

14

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 19

0

15

Toro 94-1732-03

Brake Arm

$

$

Currently unavailable

16

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0
