941003 (Pro-Chip 310) - Gravely Pro-Chip Chipper, 23hp Kohler (SN: 000101 & Above) DISCHARGE Parts Diagram

Pro-Chip Chipper, 23hp Kohler

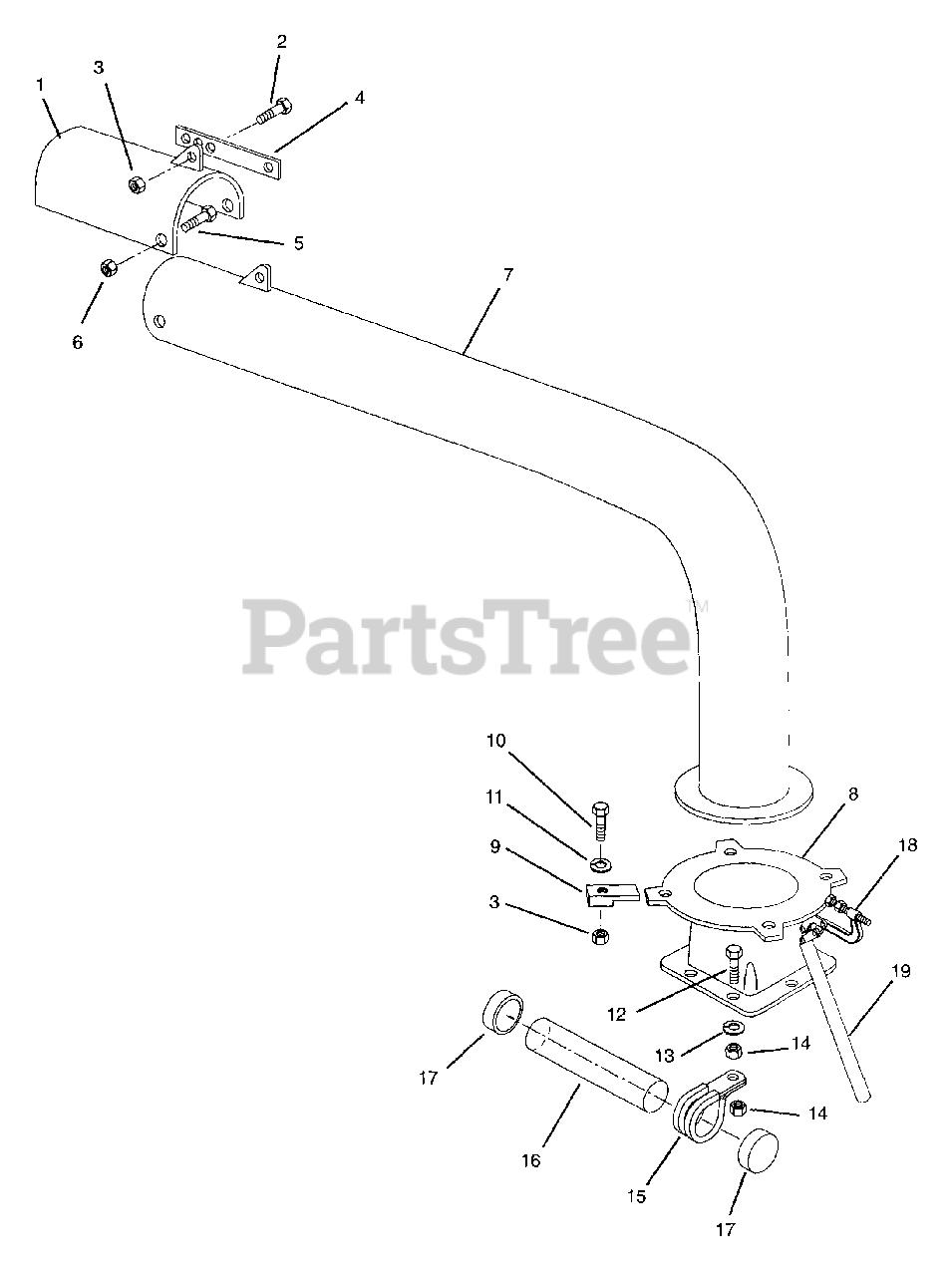

DISCHARGE Parts Diagram

  • Title

1

Gravely 04107353

DEFLECTOR
(Superseded to 04107300)

$

$

Not available

2

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 04107253

DEFLECTOR ARM
(Superseded to 04107200)

$

$

Not available

5

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 04107153

DISCHARGE CHUTE
(Superseded to 04107100)

$

$

Not available

8

Gravely 04106953

DISCHARGE NECK
(Superseded to 09349900)

$

$

Not available

9

Gravely 09333353

CLAMP
(Superseded to 09333300)

$

$

Not available

10

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 11

0

11

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 05947700

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, only 2 left!

0

13

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06924400

CLAMP-2.00 DIA W/.265 DIA HOLE

$

$

Not available

16

Gravely 09305800

PLASTIC TUBE INSTRUCTIONS

$

$

Not available

17

Gravely 09305900

END CAP INSTRUCTION TUBE

$

$

Not available

18

Gravely 04106905

CLAMP

$

$

Not available

19

Gravely 04106904

HANDLE-PIPE

$

$

Not available
