941003 (Pro-Chip 310) - Gravely Pro-Chip Chipper, 23hp Kohler (SN: 000101 & Above) ENGINE Parts Diagram

Pro-Chip Chipper, 23hp Kohler

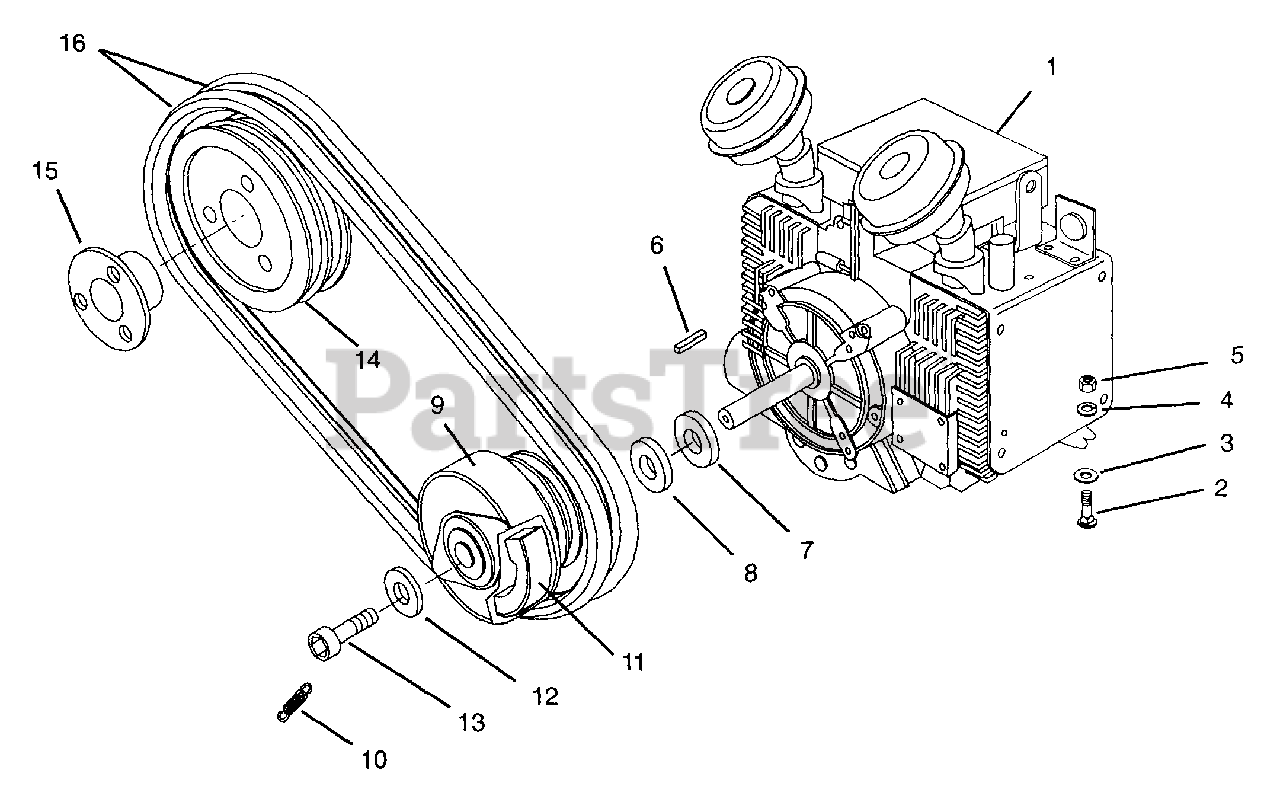

ENGINE Parts Diagram

  • Title

1

Gravely 08231100

ENGINE TEC. 5HP ELEC. VECTOR

Note: (Models 941003, 993003, 012)

$

$

Not available

2

Gravely 06209700

BLT-RDHDSQNK .50-13X1.50 GR5PL
(Superseded to 06200421)

$5.49

$

Usually ships in 4-12 days

0

3

Gravely 06401700

WSHR-FL-STL .755X1.375X.093
(Superseded to 06441500)

$3.99

$

In Stock, Qty 20+

0

4

Gravely 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

In Stock, only 2 left!

0

5

Gravely 06502100

NUT .50-13 PL
(Superseded to 06537300)

$4.99

$

Usually ships in 4-12 days

0

6

Gravely 06605400

KEY-STR .38X2.75X.38

$

$

Not available

7

Gravely 04107400

SPACER 1.500X2.000X.605

$

$

Not available

8

Gravely 04135900

NARROW RIM BUSHING - 14 GA.

$

$

Not available

9

Gravely 09307200

CLUTCH, 1.438 BORE

Note: (Models 993003, 012)

$

$

Not available

10

Gravely 09312100

SPRING-CLUTCH (93072)

$

$

Not available

11

Gravely 09312000

SHOE-CLUTCH (93072)

$

$

Not available

12

Gravely 06435200

WSHR-FLT .640X1.75X.250 YWZC
(Superseded to 06400829)

Note: (Models 993003, 012, 022)

$4.99

$

In Stock, Qty 20+

0

13

Gravely 07009100

BLT-SKH SPL .62-18X1.75

Note: ((Models 993003, 012, 022)

$

$

Not available

14

Gravely 07313700

SHEAVE DAYCO 2BQ80

$

$

Not available

15

Gravely 09304500

BUSHING SK X 1-1/2

$43.99

$

Usually ships in 4-12 days

0

16

Gravely 07215300

V-BELT, HB-WRAPPED (SET)

$74.99

$

Usually ships in 4-12 days

0
