941003 (Pro-Chip 310) - Gravely Pro-Chip Chipper, 23hp Kohler (SN: 000101 & Above) ROTATING BASE Parts Diagram

Pro-Chip Chipper, 23hp Kohler

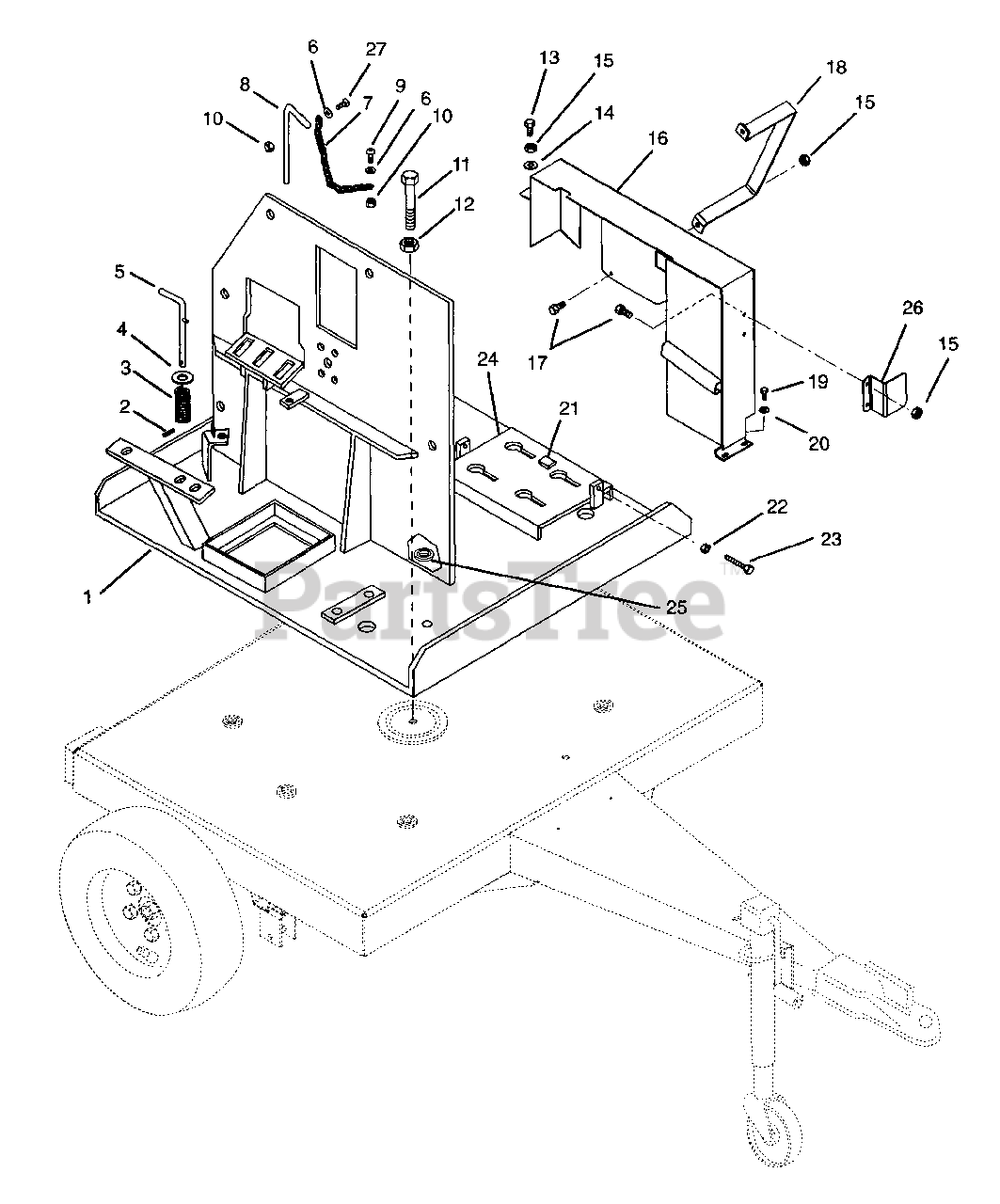

ROTATING BASE Parts Diagram

  • Title

1

Gravely 09313100

BASE WELDMENT

$

$

Not available

2

Gravely 05803000

PIN-ROLL .188X1.50

$1.49

$

In Stock, only 4 left!

0

3

Gravely 08324100

SPRING .080X.91X3.38

$

$

Not available

4

Gravely 06442800

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

5

Gravely 04106200

PIN INDEX

$

$

Not available

6

Gravely 06442700

WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$1.49

$

Usually ships in 4-12 days

0

7

Gravely 09335400

CHAIN-14 STRAIGHT LINK #4 YWZC

$5.99

$

Usually ships in 4-12 days

0

8

Gravely 09335300

PIN-ARBOR SHAFT LOCK

$5.99

$

Usually ships in 4-12 days

0

9

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 11

0

10

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 05966900

BLT-HEX .75-10X2.50 GR5 YWZC

$

$

Not available

12

Gravely 06535400

NUT-LK-CTR .75-10 YWZC

$6.49

$

Usually ships in 4-12 days

0

13

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 09342300

GUARD-BELT WELD ASSY

$

$

Not available

17

Gravely 05947200

BLT-HEX .31-18X.50 GR5 YWZC
(Superseded to 05901904)

$1.99

$

In Stock, only 2 left!

0

18

Gravely 09331200

GUARD-MUFFLER

Note: (Not on model 022)

$5.99

$

Usually ships in 4-12 days

0

19

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

20

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06605400

KEY-STR .38X2.75X.38

$

$

Not available

22

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 05967800

BLT-HEX .38-16X3.50 FTD YWZC

$

$

Not available

24

Gravely 04109351

ADJUSTOR

Note: (Models 941003, 993003, 012)

$

$

Not available

Gravely 09306000

ENGINE ADJUSTOR 25HP PRO CHIP

Note: (Models 993007, 993013)

$

$

Not available

25

Gravely 07506500

GROMMET 1.0ID X 1.38 OD

$3.99

$

Usually ships in 4-12 days

0

26

Gravely 09331100

GUARD-MANIFOLD

Note: (Not on model 022)

$5.99

$

Usually ships in 4-12 days

0

27

Gravely 06118500

SCR-MCH 10-24X1.00 HWH YWZC
(Superseded to 05901838)

$2.49

$

Usually ships in 4-12 days

0
