941005 - Gravely PTO Chipper, 540 Rpm, 3 Point Hitch (SN: 000101 & Above) DRIVE SHAFT Parts Diagram

PTO Chipper, 540 Rpm, 3 Point Hitch

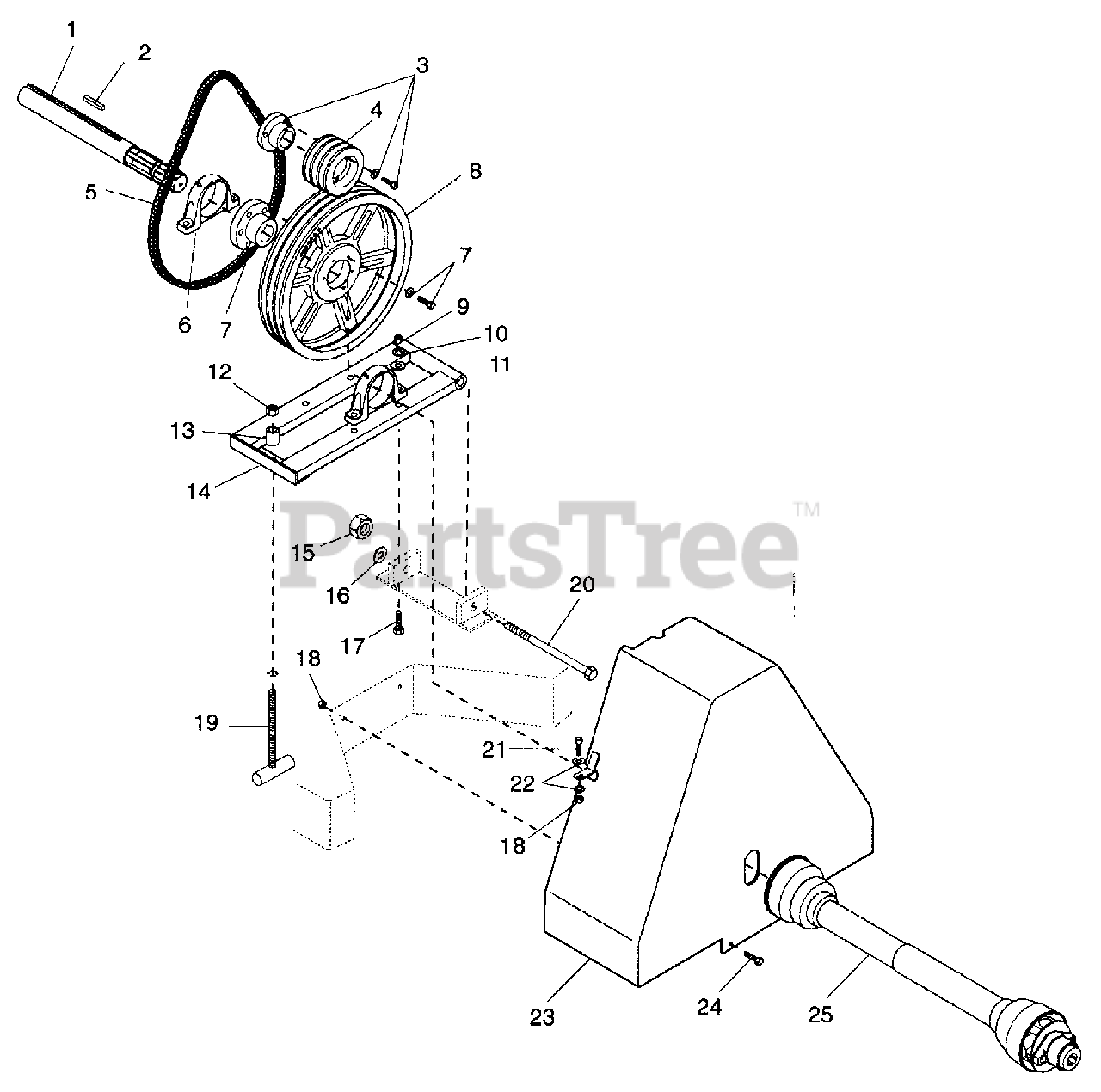

DRIVE SHAFT Parts Diagram

  • Title

1

Gravely 041189

PTO Jack Shaft
(Superseded to 04118900)

$

$

Not available

2

Gravely 066056

Key-Straight .38 x 2.0 x .38
(Superseded to 06605600)

$

$

Not available

3

Gravely 041188

Bushing

$

$

Not available

4

Gravely 073144

Pulley-Browning 384.2 Slotted Head
(Superseded to 07314400)

$

$

Not available

5

Gravely 072193

V-Belt B54
(Superseded to 07233700)

$

$

Not available

6

Gravely 054179

Bearing-Pillow-Block 1.500 x 2 Bolt x 2.344
(Superseded to 05417900)

$

$

Not available

7

Gravely 093045

Bushing SK x 1 1/2
(Superseded to 09304500)

$43.99

$

Usually ships in 4-12 days

0

8

Gravely 073142

Pulley-Browning 3815.45 SK
(Superseded to 07314200)

$

$

Not available

9

Gravely 065021

Nut .50-13
(Superseded to 06500814)

$4.99

$

Usually ships in 4-12 days

0

10

Gravely 063006

Washer-Lock .500 x .151
(Superseded to 06300117)

$2.99

$

Usually ships in 4-12 days

0

11

Gravely 064201

Washer-Flat-Steel .531 x 1.250 x .100
(Superseded to 06401015)

$1.49

$

In Stock, only 4 left!

0

12

Gravely 065158

Nut-Locking-Nylon .625-11 Grade 2
(Superseded to 06540700)

$4.99

$

In Stock, Qty 20+

0

13

Gravely 041187

Adjuster Spacer
(Superseded to 21257100)

$

$

Not available

14

Gravely 041185

Swing Arm Weldment

$

$

Not available

15

Gravely 065139

Nut-Locking Flex 1.0-8
(Superseded to 06513900)

$

$

Not available

16

Gravely 064046

Washer-Flat-Steel 1.010 x 1.505 x .062
(Superseded to 06401132)

$1.99

$

In Stock, Qty 18

0

17

Gravely 059213

Bolt-Hex .50-13 x 2.75 Grade 5
(Superseded to 05901720)

$5.49

$

Usually ships in 4-12 days

0

18

Gravely 065062

Nut-Locking-Nylon .312-18 w/Insert Grade 2
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 041186

Threaded T Handle

$

$

Not available

20

Gravely 059270

Bolt-Hex 1-8 x 11 Grade 8
(Superseded to 05927000)

$

$

Not available

21

Gravely 059181

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

22

Gravely 064002

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

23

041190

Belt Guard Weldment

$

$

Not available

24

Gravely 059135

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 741003

Pillow - PTO Kit For 941005

$

$

Not available
