941011 (Pro-Chip 395) - Gravely Pro-Chip Chipper, 40.5hp Yanmar Diesel (SN: 000101 & Above) FLYWHEEL AND DISCHARGE Parts Diagram

Pro-Chip Chipper, 40.5hp Yanmar Diesel

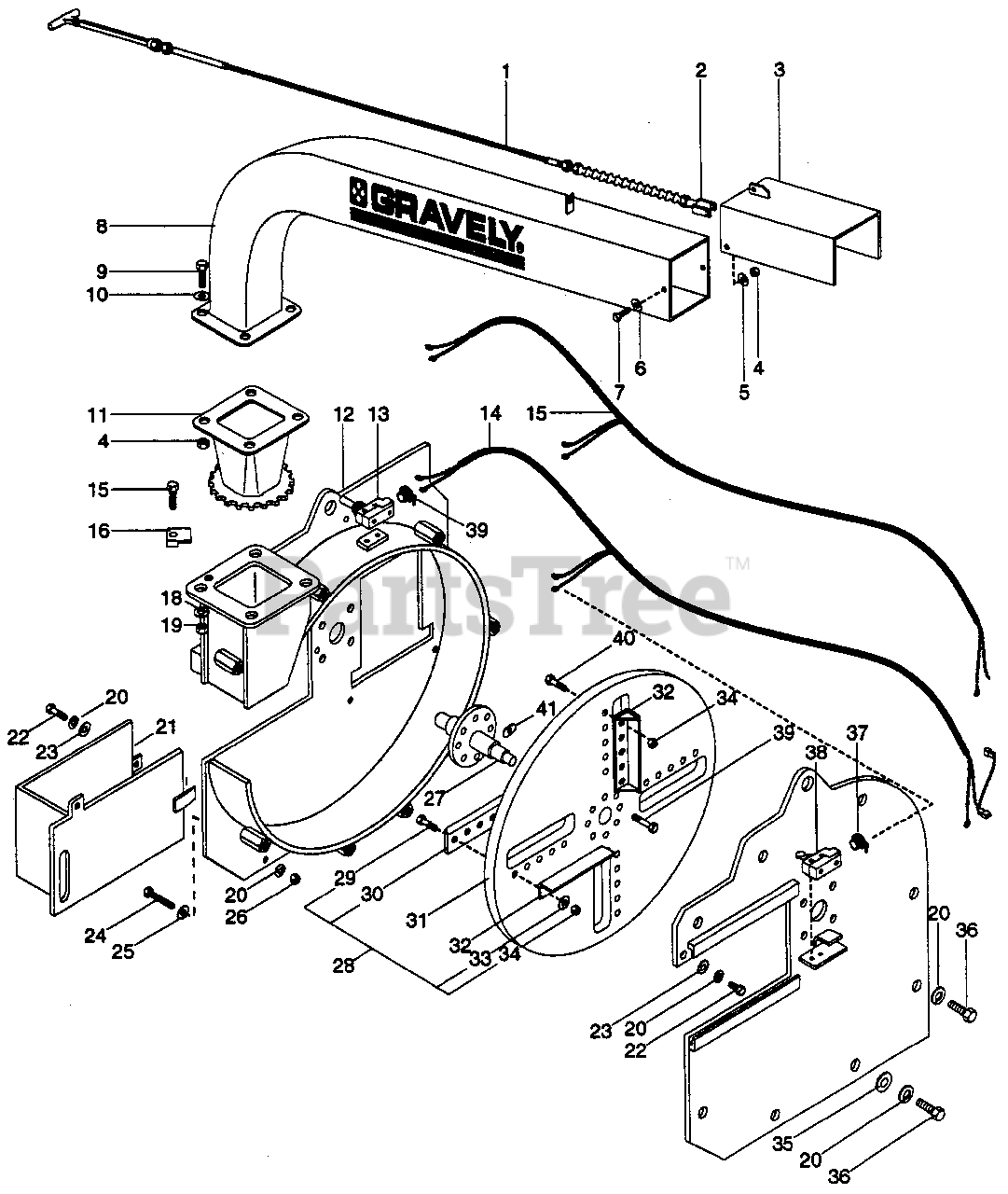

FLYWHEEL AND DISCHARGE Parts Diagram

  • Title

1

Gravely 06917800

CONTROL CABLE
(Superseded to 06943400)

$171.99

$

Usually ships in 4-12 days

0

2

Gravely 04139200

CLEVIS ASSEMBLY

$

$

Not available

3

Gravely 04123053

BONNET WELDMENT

$

$

Not available

3

Gravely 04123057

BONNET WELDMENT

Note: (Used Only On Model(s): 941011).

$

$

Not available

4

Gravely 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06425000

WSHR-FL-NY .38X1.0X.083

$

$

Not available

6

Gravely 06421500

WSHR-FL-STL .380X1.50X.125 PL
(Superseded to 06443400)

$3.99

$

In Stock, Qty 20+

0

7

Gravely 05914500

BLT-HEX .38-16X1.00 PL GR5
(Superseded to 05948700)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 04121453

DISCHARGE TUBE WELDMENT
(Superseded to 59304000)

$

$

Not available

8

Gravely 04121457

DISCHARGE TUBE WELDMENT

Note: (Used Only On Model(s): 941011).

$

$

Not available

9

Gravely 05913300

BLT-HEX .38-16X1.25 PL GR5
(Superseded to 05958000)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 04124453

VERT DISCHARGE RISER WELDMENT
(Superseded to 04124400)

$

$

Not available

11

Gravely 04124457

VERT DISCHARGE RISER WELDMENT

Note: (Used Only On Model(s): 941011).

$

$

Not available

12

Gravely 04120800

REAR CHIPPER HOUSING WELDMENT

$

$

Not available

12

Gravely 04120800

REAR CHIPPER HOUSING WELDMENT

Note: (Used Only On Model(s): 941011).

$

$

Not available

13

Gravely 04130000

SWITCH

$

$

Not available

14

Gravely 04140200

SAFETY WIRE HARNESS

Note: (Used Only On Model(s): 993002,941011).

$

$

Not available

15

Gravely 09306800

SAFETY WIRE HARNESS

Note: (Used Only On Model(s): 993009).

$

$

Not available

16

Gravely 05914700

BLT-HEX .38-16X2.00 PL GR5
(Superseded to 05963300)

$3.49

$

In Stock, Qty 20+

0

17

Gravely 04123753

DISCHARGE RETAINER WELDMENT
(Superseded to 04123700)

$

$

Not available

17

Gravely 04123757

DISCHARGE RETAINER WELDMENT

Note: (Used Only On Model(s): 941011).

$

$

Not available

18

Gravely 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

In Stock, only 2 left!

0

21

Gravely 04120953

ACCESS COVER WELDMENT

$79.99

$

Usually ships in 4-12 days

0

21

Gravely 04120957

ACCESS COVER WELDMENT

Note: (Used Only On Model(s): 941011).

$

$

Not available

22

Gravely 05930000

BLT-HEX .50-13X1 PL GR5
(Superseded to 05947100)

$2.99

$

In Stock, only 2 left!

0

23

Gravely 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 05923500

BLT-HEX .50-13X2.00 PL GR5
(Superseded to 05901929)

$3.49

$

In Stock, only 1 left!

0

25

Gravely 06412000

WSHR-FL-STL.563X1.37X.109PL
(Superseded to 06442000)

$2.99

$

In Stock, Qty 20+

0

26

Gravely 06502100

NUT .50-13 PL
(Superseded to 06537300)

$4.99

$

Usually ships in 4-12 days

0

27

Gravely 04121700

SHAFT WELDMENT

$

$

Not available

28

Gravely 79300600

CHIPPER KNIFE SET 395

$

$

Not available

29

Gravely 05930800

BLT-FL-SKH.50-13X3.00 GR8 BP&O

$

$

Not available

30

Gravely 04121800

CHIPPER KNIFE
(Superseded to 59304500)

$

$

Not available

31

Gravely 04122000

FLYWHEEL

$

$

Not available

32

Gravely 04121900

IMPELLER ANGLE WELDMENT

$

$

Not available

33

Gravely 06403200

WSHR-FL-STL .568X1.750X.219

$

$

Not available

34

Gravely 06512700

NUT-LK-CROWN .50-13 GR C PL
(Superseded to 06528200)

$3.99

$

In Stock, Qty 5

0

35

Gravely 06420100

WSHR-FL-STL .531X1.250X.100 PL
(Superseded to 06441900)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 05920000

BLT-HEX .50-13X1.50 PL GR5
(Superseded to 05962000)

$4.99

$

In Stock, Qty 12

0

37

Gravely 04132700

ROMEX CONNECTOR 6623 3/8

$

$

Not available

38

Gravely 04130100

SWITCH

$

$

Not available

39

Gravely 05930700

BLT-HEX .62-11X2.25 YWZC GR8

$3.99

$

Usually ships in 4-12 days

0

40

Gravely 05914600

BLT-HEX .50-13X1.25 PL GR5
(Superseded to 05958900)

$3.49

$

In Stock, Qty 6

0

41

Gravely 04125200

LOCK TAB

$

$

Not available
