941011 (Pro-Chip 395) - Gravely Pro-Chip Chipper, 40.5hp Yanmar Diesel (SN: 000101 & Above) HOPPER Parts Diagram

Pro-Chip Chipper, 40.5hp Yanmar Diesel

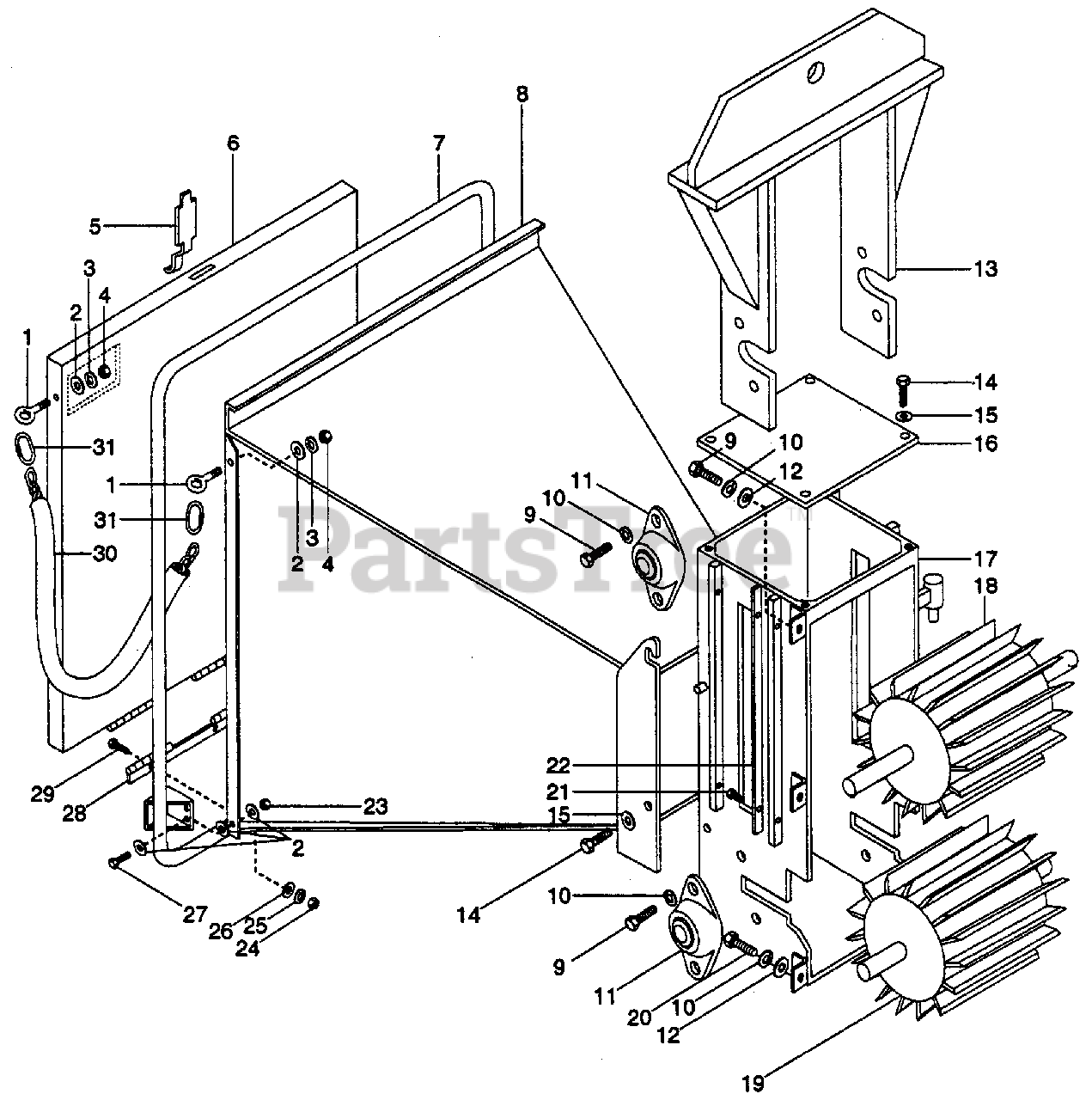

HOPPER Parts Diagram

  • Title

1

Gravely 04132600

TURNED EYE BOLT

$

$

Not available

2

Gravely 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 04122900

LATCH

$

$

Not available

6

Gravely 04125353

APRON WELDMENT
(Superseded to 04125350)

$

$

Not available

6

Gravely 04125357

APRON WELDMENT

Note: (Used Only On Model(s): 941011).

$

$

Not available

7

Gravely 04124353

SAFTY LOOP WELDMENT

$

$

Not available

7

Gravely 04124357

SAFTY LOOP WELDMENT

Note: (Used Only On Model(s): 941011).

$

$

Not available

8

Gravely 04122853

HOPPER WELDMENT
(Superseded to 04122800)

$

$

Not available

8

Gravely 04122857

HOPPER WELDMENT

Note: (Used Only On Model(s): 941011).

$

$

Not available

9

Gravely 05914600

BLT-HEX .50-13X1.25 PL GR5
(Superseded to 05958900)

$3.49

$

In Stock, Qty 6

0

10

Gravely 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

In Stock, only 2 left!

0

11

Gravely 05418700

BRG (2)BOLT-FLG

$

$

Not available

12

Gravely 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 04121300

SADDLE WELDMENT

$

$

Not available

14

Gravely 05915400

BLT-HEX .38-16X.75 PL GR5
(Superseded to 05959400)

$1.99

$

In Stock, Qty 14

0

15

Gravely 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 04123153

COVER

$

$

Not available

16

Gravely 04123157

COVER

Note: (Used Only On Model(s): 941011).

$

$

Not available

17

Gravely 04122700

FEED ROLLER BOX WELDMENT

$

$

Not available

18

Gravely 04123900

UPPER FEED ROLLER WELDMENT

$

$

Not available

19

Gravely 04124000

LOWER FEED ROLLER WELDMENT

$1495.99

$

Usually ships in 4-12 days

0

20

Gravely 05930200

BLT-HEX .50-13X1.00 PLAIN GR8

$

$

Not available

21

Gravely 05929400

SCR-SKH .25-20X.50 FLTCNTRSK
(Superseded to 06117300)

$

$

Not available

22

Gravely 04123300

STRIP-WEAR

$

$

Not available

Gravely 04124100

REAR RUB STRIP

$

$

Not available

23

Gravely 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 10

0

25

Gravely 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$0.99

$

In Stock, Qty 7

0

26

Gravely 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 05916100

BLT-HEX .38-16X1.75 PL GR5
(Superseded to 05958500)

$1.99

$

In Stock, Qty 20+

0

28

Gravely 04125303

APRON HINGE - CUT
(Superseded to 04125400)

$

$

Not available

29

Gravely 05908200

BLT-HEX .25-20X.75 PL GR5
(Superseded to 05946800)

$1.49

$

In Stock, only 3 left!

0
