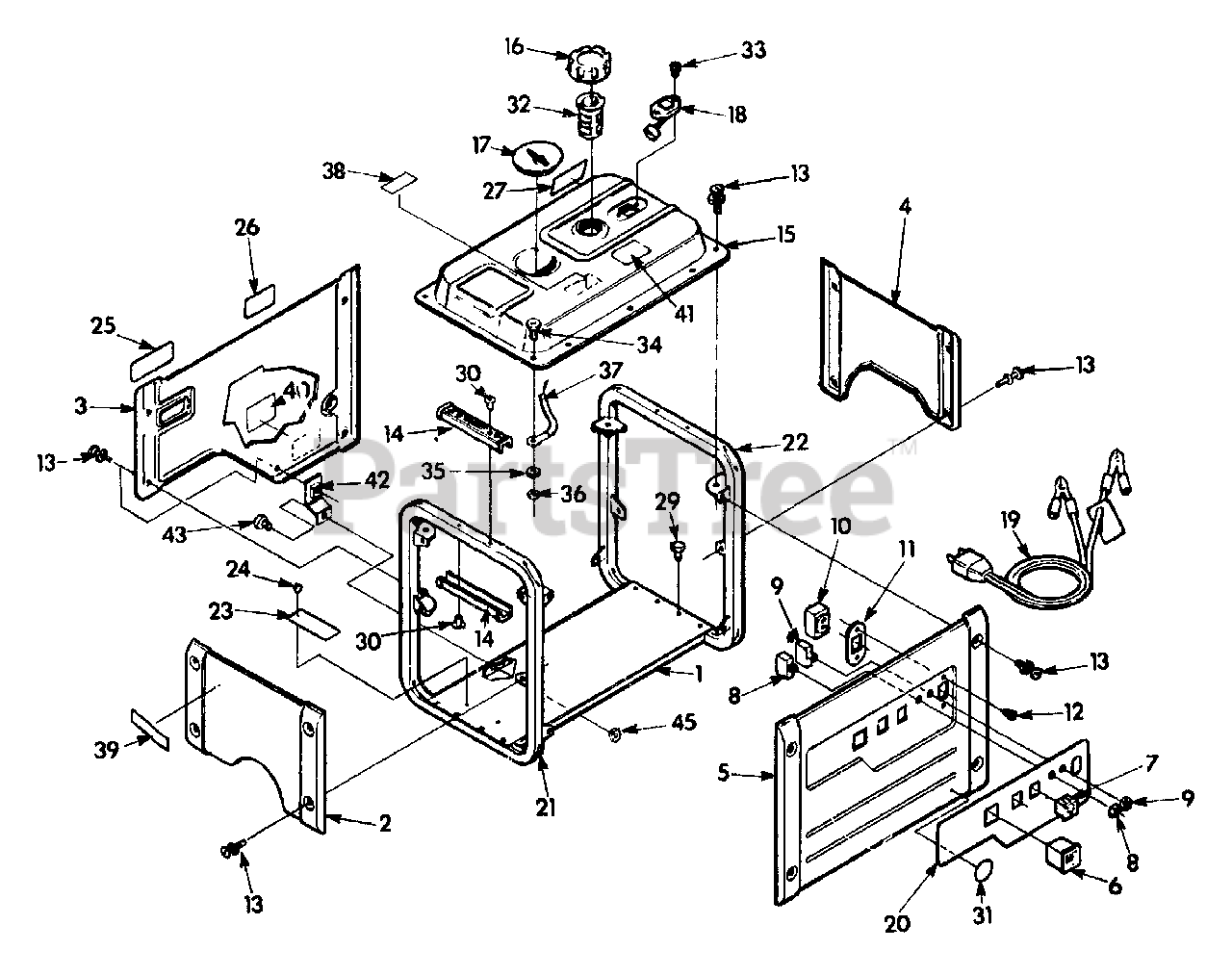

9439-0 - Generac Dayton 1,400 Watt Portable Generator Cradle Parts Diagram

Dayton 1,400 Watt Portable Generator

Cradle Parts Diagram

  • Title

1

Briggs & Stratton 66394

Engine cradle base

$

$

Currently unavailable

2

Briggs & Stratton 66456

Engine end panel

$

$

Currently unavailable

3

Briggs & Stratton 66457

Muffler panel

$4.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 66453

Generator end panel

$

$

Currently unavailable

5

Briggs & Stratton 66455

Receptacle and control panel

$

$

Currently unavailable

6

Briggs & Stratton 66817

Engine run/stop switch
(Superseded to 66817GS)

$39.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 66818

120 volts AC, 15-amp Receptacle
(Superseded to 66818GS)

$25.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 66861

12 AC amp Circuit breaker

$

$

Currently unavailable

9

Briggs & Stratton 66820

10 amp DC Circuit breaker

$

$

Not available

10

Briggs & Stratton 66821

12 volts, DC Receptacle
(Superseded to 66821GS)

$21.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 66822

12 volts, DC Receptacle retainer
(Superseded to 66822GS)

Note: (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.)

$11.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 66828

M3-0.5 x 8mm Machine screw

$20.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 66827

M5-0.8 x 12mm Machine screw (with lock washer)

$

$

Not available

14

Briggs & Stratton 66450

Handle cover

$

$

Not available

15

Briggs & Stratton 69661

2.34 U.S. gallon Fuel tank

$

$

Not available

16

Briggs & Stratton 69658

Fuel tank cap

$

$

Currently unavailable

17

Briggs & Stratton 64680B

Spark plug access cover
(Superseded to 64680BGS)

$7.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 66391B

Fuel level indicator

$

$

Not available

19

Briggs & Stratton 65787

Battery charge cable

$3.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 83833

Receptacle and control panel decal

$

$

Currently unavailable

21

Briggs & Stratton 66392

Engine end cradle

$

$

Currently unavailable

22

Briggs & Stratton 66393

Generator end cradle

$

$

Currently unavailable

23

UNKNOWN

$

$

Not available

24

UNKNOWN

$

$

Not available

25

Briggs & Stratton 66823

Choke decal

$

$

Currently unavailable

26

Briggs & Stratton 77816

"Caution: Hot" decal
(Superseded to 77816GS)

$4.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 67441B

Starting data decal

$

$

Currently unavailable

29

Briggs & Stratton 58842

Crimptite screw
(Superseded to 7058842YP)

$387.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 66831

4mm Black rivet

$

$

Not available

31

Briggs & Stratton 66864

U.S.D.A. decal

$

$

Not available

32

Briggs & Stratton 70630

Fuel filter

$

$

Currently unavailable

33

Briggs & Stratton 52749

M5-0.8 x 12mm Machine screw

$

$

Currently unavailable

34

Briggs & Stratton 52619

M5-0.8 x 20mm Machine screw
(Superseded to 52619GS)

$1.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 67444

M5 Serrated washer

$

$

Currently unavailable

36

Briggs & Stratton 51716

M5-0.8 Hex nut
(Superseded to 51716GS)

$2.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 6639521

Ground wire (green)

$

$

Currently unavailable

38

~N/A

Unleaded fuel decal

Note: Contact Generac for quantity required

$

$

Not available

39

~N/A

Air cleaner decal

Note: Contact Generac for quantity required

$

$

Not available

40

~N/A

Lubrication decal

Note: Contact Generac for quantity required

$

$

Not available

41

Briggs & Stratton 69764

Fuel caution decal

$

$

Currently unavailable

42

Briggs & Stratton 69632

Cover support bracket

$

$

Currently unavailable

43

Briggs & Stratton 66890

M6-1.0 x 12mm Machine screw (with washer)
(Superseded to 66890GS)

$3.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 49813

M6 Hex nut
(Superseded to 49813GS)

$2.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 83615

Owner's manual

$

$

Currently unavailable
