9439-0 - Generac Dayton 1,400 Watt Portable Generator Generator Parts Diagram

Dayton 1,400 Watt Portable Generator

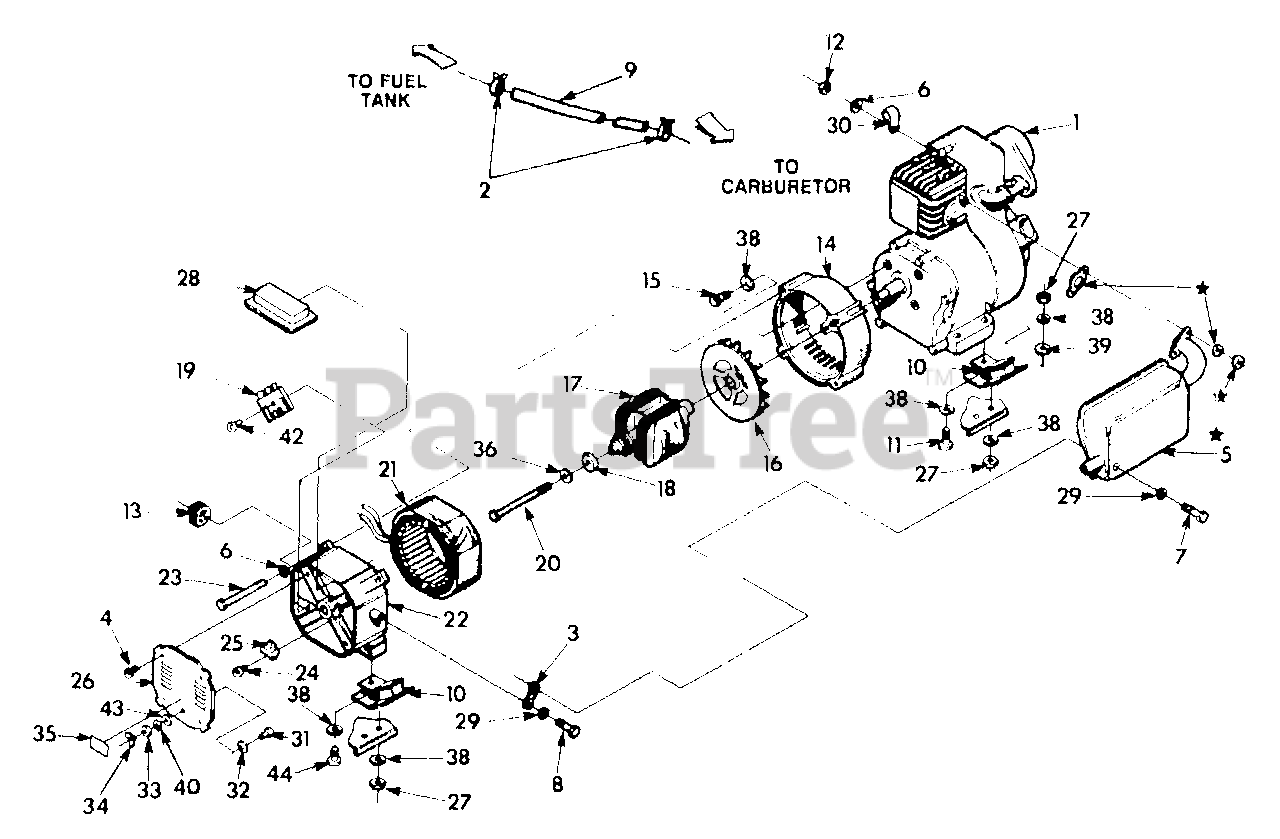

Generator Parts Diagram

  • Title

1

Briggs & Stratton 65187

Kawasaki engine (FA-130)

$

$

Currently unavailable

2

Briggs & Stratton 66836

Fuel line clamp

$

$

Currently unavailable

3

Briggs & Stratton 66462

Muffler support bracket

$

$

Not available

4

Briggs & Stratton 66849B

M5-0.8 x 8mm Screw
(Superseded to 66849BGS)

$3.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 64677

Spark arrest muffler

$

$

Not available

6

Briggs & Stratton 22097

M6 Lock washer
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 52243

M10-1.5 x 60mm Capscrew

$

$

Not available

8

Briggs & Stratton 51755

M10 x 1.5 x 16mm Capscrew

$

$

Currently unavailable

9

Briggs & Stratton 70680B

620mm long Fuel hose

$

$

Currently unavailable

10

Briggs & Stratton 70642

Vibration mount
(Superseded to 70642GS)

$31.99

$

In Stock, only 3 left!

0

11

Briggs & Stratton 70629

M8-1.25 x 40mm Screw

$

$

Currently unavailable

12

Briggs & Stratton 49813

M6-1.0 Hex nut
(Superseded to 49813GS)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 67022

Lead outlet grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 66365

Engine adaptor housing
(Superseded to 66365GS)

$69.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 39253

M8-1.25 x 20mm Capscrew
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 66389

Cooling fan

$

$

Not available

17

Briggs & Stratton 65786

Rotor assembly
(Superseded to 65786GS)

$

$

Not available

18

Briggs & Stratton 65791

Ball bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 65795

Battery charge rectifier
(Superseded to 65795GS)

$

$

Not available

20

Briggs & Stratton 66448A

M8-1.25 x 180mm Rotor bolt

$

$

Currently unavailable

21

Briggs & Stratton 65784

Stator assembly

$

$

Currently unavailable

22

Briggs & Stratton 66825

Rear bearing carrier

$

$

Currently unavailable

23

Briggs & Stratton 66449A

M6-1.0 x 70mm Stator bolt

$

$

Not available

24

Briggs & Stratton 66849

M5-0.8 x 16mm Screw
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 66386

Brush assembly
(Superseded to 66386GS)

$23.99

$

In Stock, only 4 left!

0

26

Briggs & Stratton 67025

Bearing carrier cover

$

$

Currently unavailable

27

Briggs & Stratton 45771

M8-1.25 Hex nut

$

$

Not available

28

Briggs & Stratton 66850

Bridge rectifier board
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 46526

M10 Lock washer

$

$

Not available

30

Briggs & Stratton 66894

Fuel line support clamp
(Superseded to 695002)

$8.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 52619

M5-0.8 x 20mm Screw
(Superseded to 52619GS)

$1.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 67444

M5 Serrated washer

$

$

Currently unavailable

33

Briggs & Stratton 51716

M5-0.8 Hex nut
(Superseded to 51716GS)

$2.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 67435

M5-0.8 Wing nut

$

$

Currently unavailable

35

Briggs & Stratton 67210

Ground decal
(Superseded to 67210GS)

$8.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 67451

Special flat washer

$

$

Currently unavailable

38

Briggs & Stratton 22129

M8 Lock washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

39

Briggs & Stratton 49810

M8 Flat washer
(Superseded to 7049810YP)

$128.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 49226

M5 Lock washer
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 66849A

M5-0.8 x 20mm Screw
(Superseded to 66849AGS)

$4.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 23897

M5 Flat washer
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 70644

M8-1.25 x 20mm Screw
(Superseded to 70644GS)

$4.49

$

Usually ships in 2-12 days

0
