944368932 (368932) - Husqvarna Walk-Behind Mower (2010-02) DRIVE Parts Diagram

Walk-Behind Mower

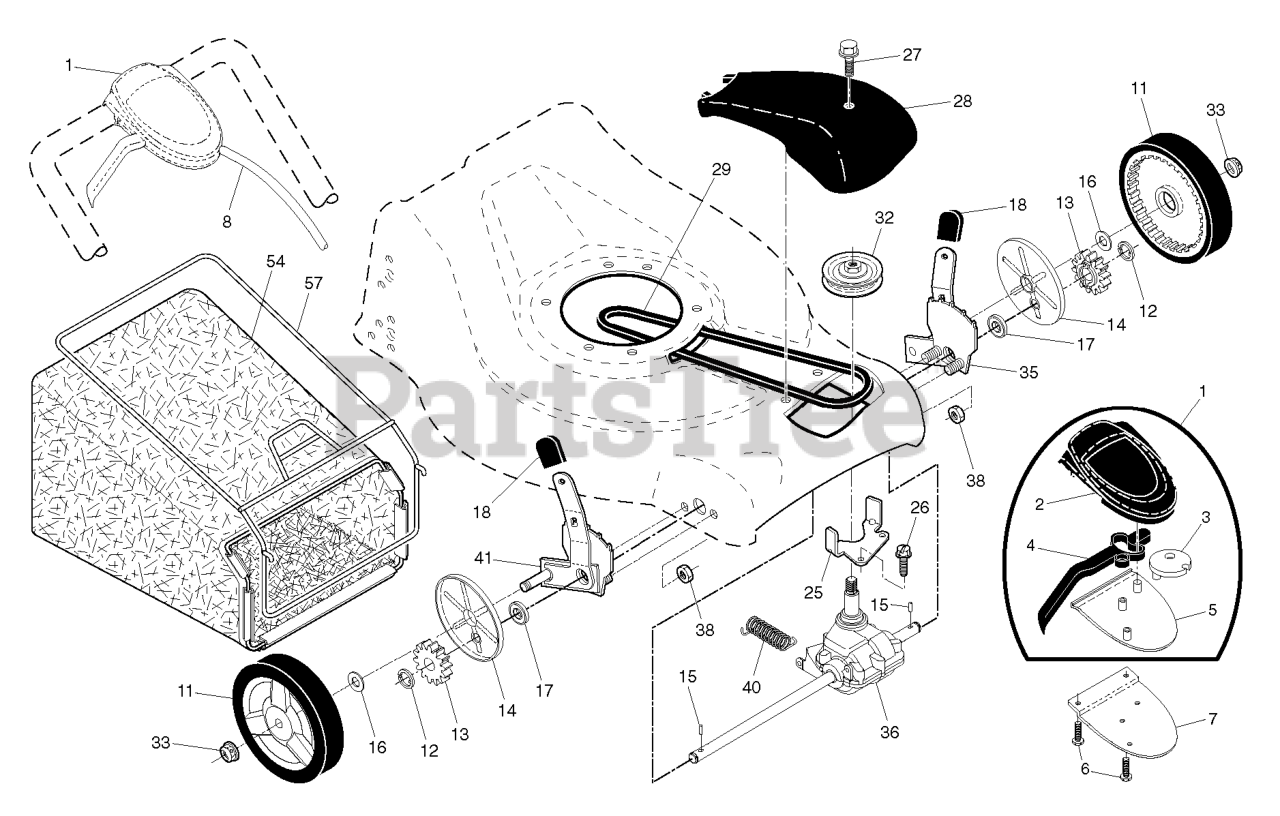

DRIVE Parts Diagram

  • Title

18

Husqvarna 532701037

SELECTOR KNOB

$5.99

$

In Stock, Qty 20+

0

7

Husqvarna 532400723

BRACKET.DRIVE.CONTROL.MOUNT.BL

$

$

Not available

28

Husqvarna 532436247

NEEDS DESCRIPTION

$

$

Currently unavailable

35

Husqvarna 532424201

RP KIT, WHEEL ADJUSTER, LH
(Superseded to 532438485)

Note: Includes Knob and Bearing

$39.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532194018

RP PULLEY.DRIVE.EZ
(Superseded to 532443262)

$13.99

$

In Stock, only 2 left!

0

13

Husqvarna 532403849

PINION.14.TEETH.FGD

$6.99

$

In Stock, Qty 13

0

38

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

16

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, only 4 left!

0

57

Husqvarna 532411950

FRAME.GBAG.21.FWGD

$

$

Not available

29

Husqvarna 532194149

BELT.DRIVE.FG

$24.99

$

In Stock, only 2 left!

0

4

Husqvarna 532425583

LEVER.SHORT.BLACK.EZ.WALK

$

$

Not available

6

Husqvarna 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$3.49

$

In Stock, only 3 left!

0

5

Husqvarna 532411664

COVER BOTTOM AUTO WLK CONTROL
(Superseded to 532406261)

$24.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 532404845

PAWL, DRIVE

$5.99

$

In Stock, Qty 18

0

11

Husqvarna 532411081

WHEEL.8X1.75.H3SPK.RAD3.GY.BU3
(Superseded to 532401274)

$34.99

$

In Stock, Qty 20+

0

8

Husqvarna 532406259

CABLE ASSEMBLY, DRIVE

$51.99

$

In Stock, Qty 7

0

54

Husqvarna 532401190

GBAG.34710247.SILVER.H
(Superseded to 580953406)

$47.99

$

In Stock, only 2 left!

0

25

Husqvarna 532411663

BELT KEEPER
(Superseded to 532431711)

$

$

Not available

36

Husqvarna 532404833

TRANSMISSION.21.FGD.HT.VST

$

$

Not available

12

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

In Stock, Qty 12

0

17

Husqvarna 532191039

BEARING
(Superseded to 587070202)

$17.99

$

In Stock, Qty 16

0

2

Husqvarna 532411673

COVER TOP AUTO WALK CONTROL
(Superseded to 532406260)

$

$

Not available

1

Husqvarna 532425580

CONTROL.DR.AW.FWGD.GRY/BLACK

Note: Includes Cable

$93.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$6.99

$

In Stock, Qty 20+

0

40

Husqvarna 532406558

SPRING

$9.49

$

In Stock, only 3 left!

0

41

Husqvarna 532424200

KIT, WHEEL ADJUSTER, RH
(Superseded to 532438486)

Note: Includes Knob and Bearing

$

$

Not available

26

Husqvarna 532163409

SCREW

$3.49

$

In Stock, only 3 left!

0

3

Husqvarna 532406262

PULLEY.CAM.DRIVE.CONTROL.EZ

$

$

Not available

27

Husqvarna 532175262

SCREW, HEX HD TAPPING #10-24 1

$3.49

$

In Stock, Qty 8

0
