946104 (ST 622) - Gravely Wheeled Trimmer, 6hp Tecumseh (SN: 000101 & Above) Spindle, Belt & Guards Parts Diagram

Wheeled Trimmer, 6hp Tecumseh

Spindle, Belt & Guards Parts Diagram

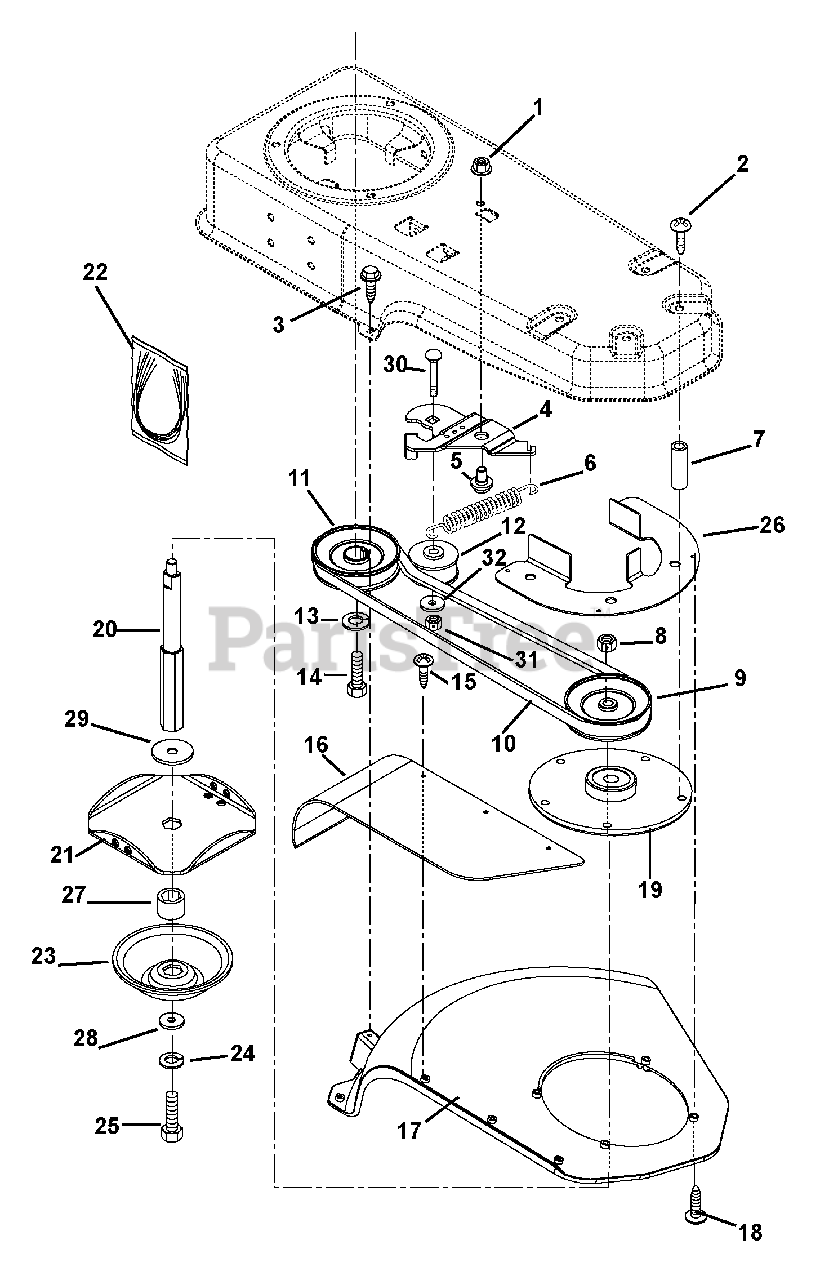

  • Title

1

Gravely 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.99

$

In Stock, Qty 20+

0

2

Gravely 07416100

SCR-TAP.375-16X2.75 HWH TR YZ

$

$

Not available

3

Gravely 07413000

SCR-TAP 10-24X.75 HWH TR YWZC
(Superseded to 07400118)

$5.49

$

In Stock, Qty 5

0

4

Gravely 04640800

BRACKET - IDLER

$12.99

$

In Stock, only 2 left!

0

5

Gravely 07056700

BOLT-SHLDR .375-16X.150

$5.49

$

In Stock, only 2 left!

0

6

Gravely 039139

SG-TENS .035X.45X2.75 WLD 3.5
(Superseded to 08314900)

$19.99

$

In Stock, only 2 left!

0

7

Gravely 05532300

BSHG-SPCR .406X.625X1.90

$4.99

$

In Stock, Qty 13

0

8

Gravely 06542200

NUT-LK-FLG .375-24 GR5 YWZC

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 07326300

PLY-V 3.50 OD X .87 WIDE (CUT)

Note: (Cut)

$36.99

$

Usually ships in 4-12 days

0

10

Gravely 07236900

V-BELT, HA-RAW EDGE

$39.99

$

In Stock, only 1 left!

0

11

Gravely 07326400

SHEAVE-ENGINE 3.50 ODX.87 WIDE
(Superseded to 54600800)

$120.99

$

Usually ships in 4-12 days

0

12

Gravely 07326500

IDLER - FLAT 1.875OD X .75WIDE

$27.99

$

In Stock, only 1 left!

0

13

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 05960300

BLT-HEX .38-24X1.0 YWZC GR5

$3.49

$

Usually ships in 4-12 days

0

15

Gravely 07411000

SCR-TAP #10-16 X .625 HWH

$4.99

$

Usually ships in 4-12 days

0

16

Gravely 04641500

GUARD - DEBRIS

$18.99

$

Usually ships in 4-12 days

0

17

Gravely 04640100

SHIELD - TRIMMER

$27.99

$

In Stock, only 2 left!

0

18

Gravely 07413000

SCR-TAP 10-24X.75 HWH TR YWZC
(Superseded to 07400118)

$5.49

$

In Stock, Qty 5

0

19

Gravely 04640600

HOUSING - JACKSHAFT
(Superseded to 04640601)

$208.99

$

Usually ships in 4-12 days

0

20

Gravely 04641300

SHAFT - CUTTER - HEX

$93.99

$

In Stock, only 2 left!

0

21

Gravely 04641000

DISC - CUTTER - HEX

$27.99

$

In Stock, only 2 left!

0

22

Gravely 04641800

LINE - CUTTER 18" LG PKG OF 6
(Superseded to 70761200)

Note: (Pack of 6)

$23.99

$

In Stock, Qty 6

0

23

Gravely 04641100

GUIDE - HEIGHT - HEX
(Superseded to 04627000)

$54.99

$

In Stock, Qty 6

0

Gravely 04645000

GUIDE - HEIGHT - LONG LIFE
(Superseded to 04630600)

$54.99

$

In Stock, Qty 8

0

24

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$2.49

$

In Stock, Qty 20+

0

26

Gravely 04640953

FINGER,BELT, GRAVELY RED

$

$

Not available

27

Gravely 05532500

SPACER - HEX

$4.99

$

In Stock, Qty 20+

0

28

Gravely 06446300

WSHR-FL-STL .344X1.125X.135
(Superseded to 06401104)

$5.49

$

In Stock, Qty 14

0

29

Gravely 04640700

SHIELD - DUST

$

$

Not available

30

Gravely 06225600

BLT-RHDSSQNK .38-16X1.50 G5YZ
(Superseded to 06200328)

$4.99

$

In Stock, only 1 left!

0

31

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+
