946152 (ST 22) - Ariens 22" Walk-Behind String Trimmer, Kohler Courage XT-7 (SN: 000101 - 002698) Spindle, Belt and Guards Parts Diagram

22" Walk-Behind String Trimmer, Kohler Courage XT-7

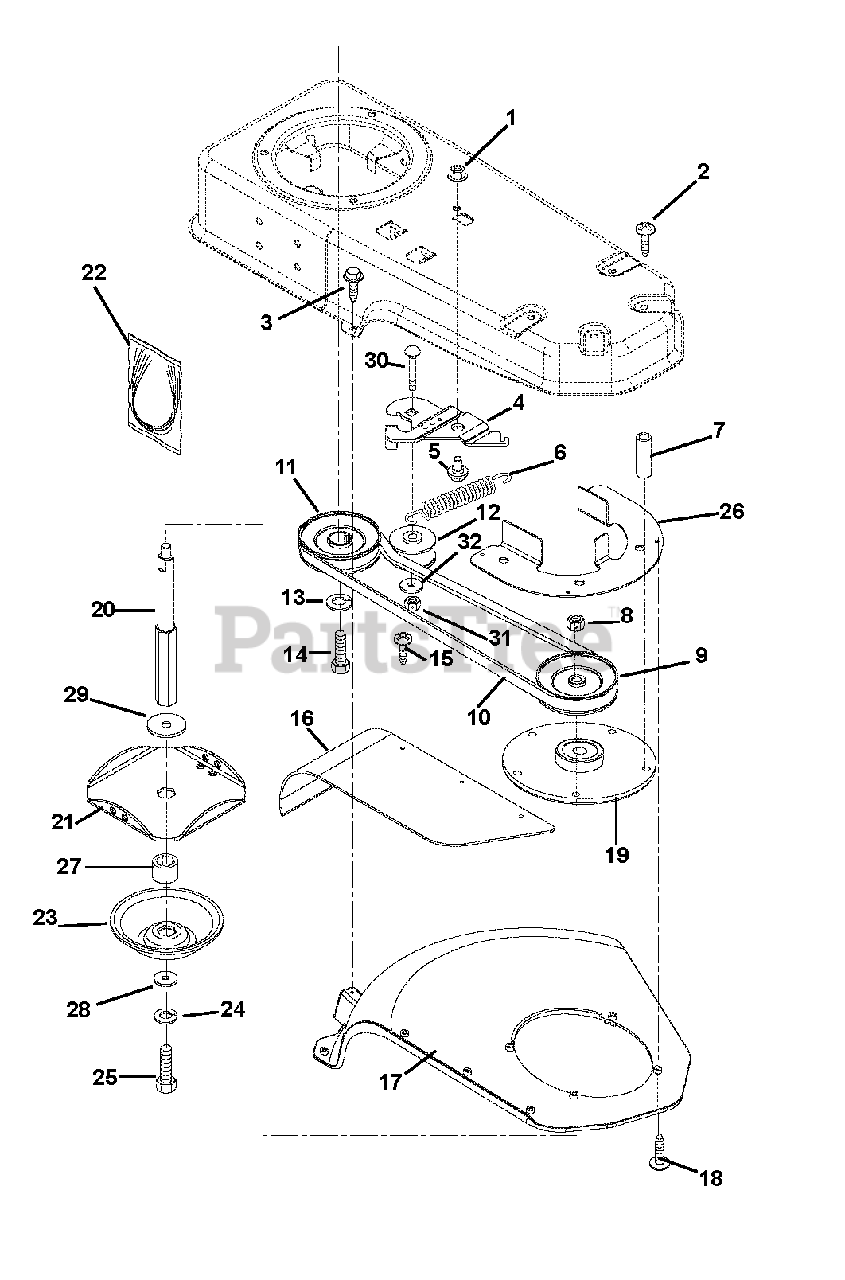

Spindle, Belt and Guards Parts Diagram

  • Title

1

Ariens 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

2

Ariens 07416100

@SCR-TAP.375-16X2.75 HWH TR YZ

$3.49

$

Usually ships in 4-12 days

0

3

Ariens 07413000

SCR-TAP 10-24X.75 HWH TR YWZC
(Superseded to 07400118)

$3.99

$

In Stock, Qty 8

0

4

Ariens 04640800

BRACKET - IDLER

$11.99

$

Usually ships in 4-12 days

0

5

Ariens 07056700

BOLT-SHLDR .375-16X.150

$3.99

$

In Stock, only 2 left!

0

6

Ariens 08314900

SG-TENS .035X.45X2.75 WLD 3.5

$13.99

$

In Stock, only 1 left!

0

7

Ariens 05532300

BSHG-SPCR .406X.625X1.90

$3.99

$

In Stock, Qty 15

0

8

Ariens 06542200

NUT-LK-FLG .375-24 GR5 YWZC

$2.49

$

In Stock, only 3 left!

0

9

Ariens 07326300

PLY-V 3.50 OD X .87 WIDE (CUT)

Note: (Cut)

$34.99

$

Usually ships in 4-12 days

0

10

Ariens 07236900

V-BELT, HA-RAW EDGE

$36.99

$

Usually ships in 4-12 days

0

11

Ariens 07326400

SHEAVE-ENGINE 3.50 ODX.87 WIDE
(Superseded to 54600800)

$107.99

$

Usually ships in 4-12 days

0

12

Ariens 07326500

IDLER - FLAT 1.875OD X .75WIDE

$25.99

$

In Stock, Qty 5

0

13

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0

14

Ariens 05960300

BLT-HEX .38-24X1.0 YWZC GR5

$2.99

$

In Stock, only 1 left!

0

15

Ariens 07411000

SCR-TAP #10-16 X .625 HWH

$3.49

$

Usually ships in 4-12 days

0

16

Ariens 04641500

GUARD - DEBRIS

$15.99

$

In Stock, Qty 5

0

17

Ariens 04640100

SHIELD - TRIMMER

$21.99

$

In Stock, Qty 6

0

18

Ariens 07413000

SCR-TAP 10-24X.75 HWH TR YWZC
(Superseded to 07400118)

$3.99

$

In Stock, Qty 8

0

19

Ariens 04640601

HOUSING, JACKSHAFT -CHAMFERED

$180.99

$

In Stock, only 1 left!

0

20

Ariens 04641300

SHAFT - CUTTER - HEX

$87.99

$

In Stock, only 2 left!

0

21

Ariens 04641000

DISC - CUTTER - HEX

$25.99

$

In Stock, only 1 left!

0

22

Ariens 04641800

LINE - CUTTER 18" LG PKG OF 6
(Superseded to 70761200)

Note: (Pack of 6)

$21.99

$

In Stock, only 1 left!

0

23

Ariens 04641100

GUIDE - HEIGHT - HEX
(Superseded to 04627000)

$47.99

$

In Stock, only 2 left!

0

Ariens 04645000

GUIDE - HEIGHT - LONG LIFE
(Superseded to 04630600)

$51.99

$

In Stock, only 4 left!

0

24

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

26

Ariens 04640951

FINGER - BELT

$20.99

$

Usually ships in 4-12 days

0

27

Ariens 05532500

SPACER - HEX

$3.99

$

In Stock, Qty 8

0

28

Ariens 06446300

WSHR-FL-STL .344X1.125X.135
(Superseded to 06401104)

$3.99

$

In Stock, Qty 6

0

29

Ariens 04640700

SHIELD - DUST

$24.99

$

Usually ships in 4-12 days

0

30

Ariens 06225600

@BLT-RHDSSQNK .38-16X1.50 G5YZ
(Superseded to 06200328)

$3.99

$

Usually ships in 4-12 days

0

31

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0
