946154 - Ariens 22" Walk-Behind String Trimmer, 149cc Kohler XT6 (SN: 005000 & Above) Handlebars Parts Diagram

22" Walk-Behind String Trimmer, 149cc Kohler XT6

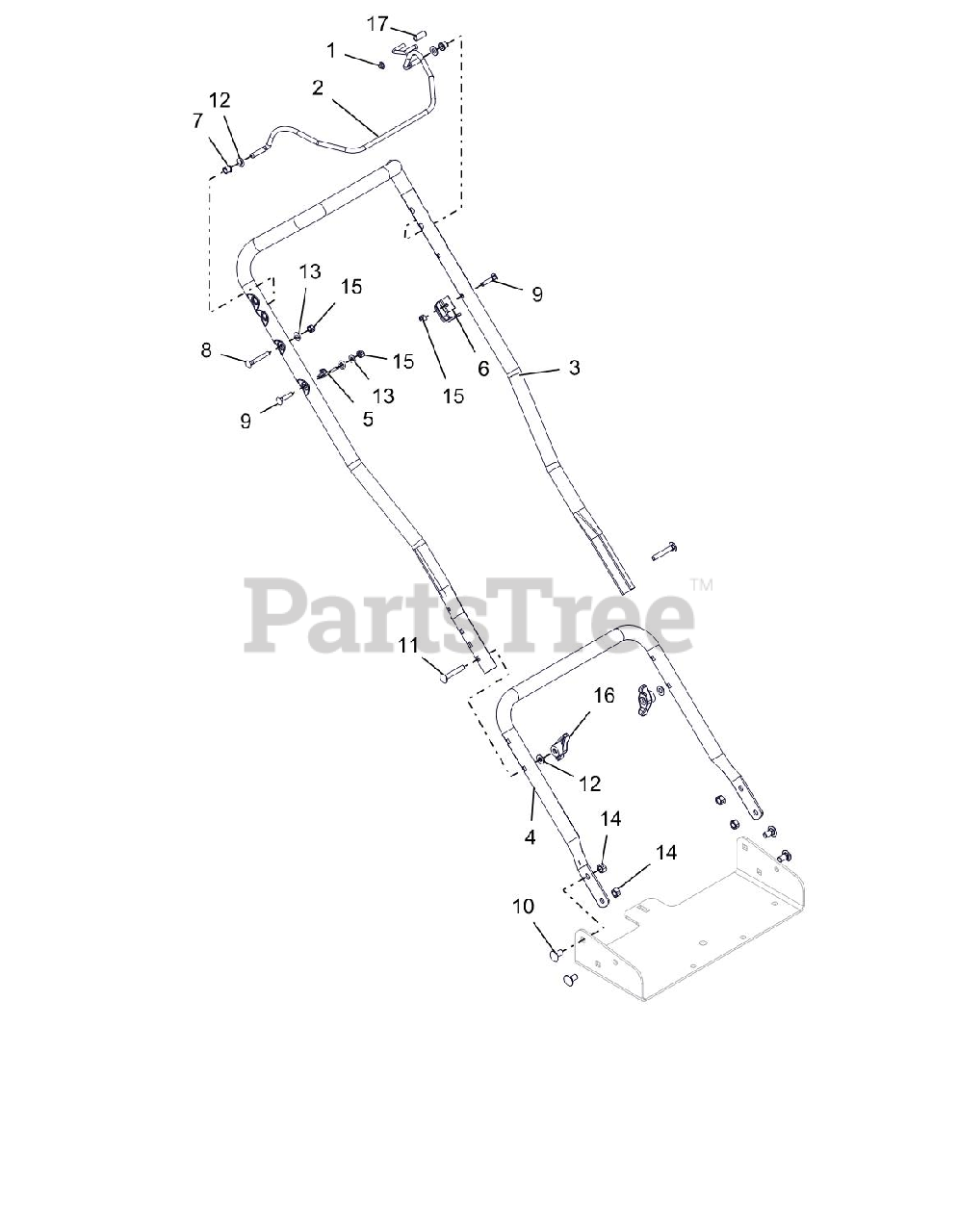

Handlebars Parts Diagram

  • Title

1

Ariens 02215300

PUSH NUT, .25

$1.99

$

In Stock, Qty 16

0

2

Ariens 03809051

BAIL SS LF

$77.99

$

Usually ships in 4-12 days

0

3

Ariens 04640451

HANDLEBAR - UPPER

$127.99

$

Usually ships in 4-12 days

0

4

Ariens 04640551

HANDLEBAR - LOWER

$60.99

$

Usually ships in 4-12 days

0

5

Ariens 04642100

GUIDE - PULLCORD

$51.99

$

Usually ships in 4-12 days

0

6

Ariens 04642351

ANCHOR - CABLE

$6.49

$

Usually ships in 4-12 days

0

7

Ariens 05514500

BSHG-FLG .325X.444X.440X.560

$3.99

$

In Stock, Qty 20+

0

8

Ariens 06209300

BLT-RDHDXLSQNK .25-20X2.0 G5YZ

$2.99

$

Usually ships in 4-12 days

0

9

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.49

$

In Stock, only 2 left!

0

10

Ariens 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.49

$

Usually ships in 4-12 days

0

11

Ariens 06225800

BLT-RDHDSQNKFT .31-18X2.0 G5YZ

$3.99

$

Usually ships in 4-12 days

0

12

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0

13

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

14

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 07500105

KNOB,WING .31-18 UNC NYL/TALC

$3.99

$

In Stock, Qty 13

0

17

Ariens 07517000

CAP, VINYL, .25 ID

$3.49

$

In Stock, Qty 11

0
