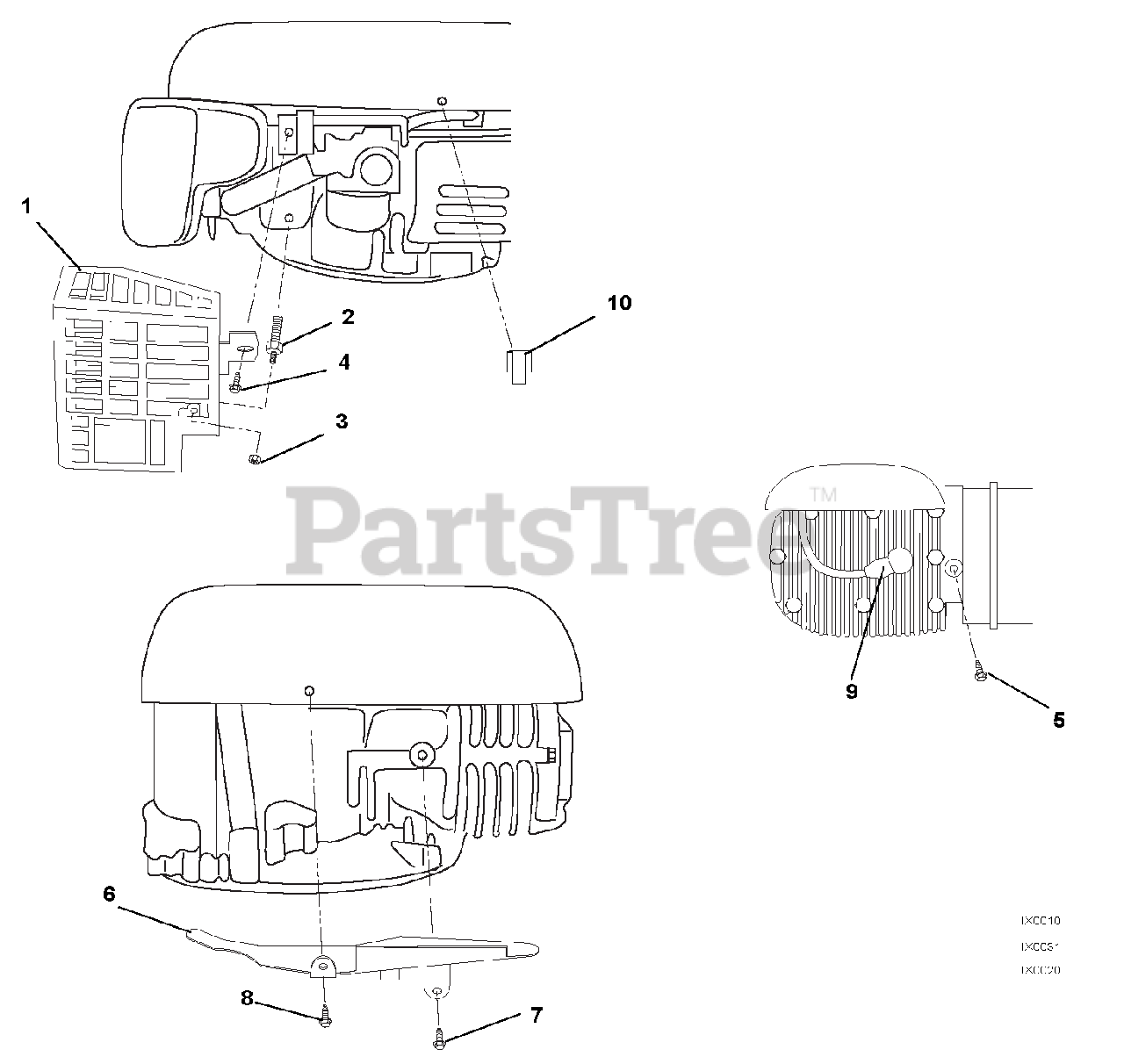

946301 (ST 622) - Ariens 22" Walk-Behind String Trimmer, 6hp (SN: 003000 & Above) CE Engine Guards Parts Diagram

22" Walk-Behind String Trimmer, 6hp

CE Engine Guards Parts Diagram

  • Title

1

Ariens 04643200

GUARD-MUFFLER-STRING TRIM CE

$

$

Not available

2

Ariens 07060100

SCR-SPECIAL .25-20X1/10-24X.31

$

$

Not available

3

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, only 3 left!

0

4

Ariens 07415800

@SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

$2.49

$

In Stock, Qty 7

0

5

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 04643600

GUARD-FLYWHEEL-LARGE STRTRM CE

$

$

Not available

7

Ariens 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$0.99

$

In Stock, Qty 6

0

8

Ariens 07411700

SCR-TAP 8-15X.38 CR RH A YWZC

$

$

Not available

9

Ariens 04649000

SHIELD, SPARK PLUG

$

$

Not available

10

Ariens 04649100

CLIP, FINGER GUARD

$

$

Not available
