947031 - Gravely Blower, 8hp Briggs & Stratton (SN: 000101 & Above) Blower Housing Parts Diagram

Blower, 8hp Briggs & Stratton

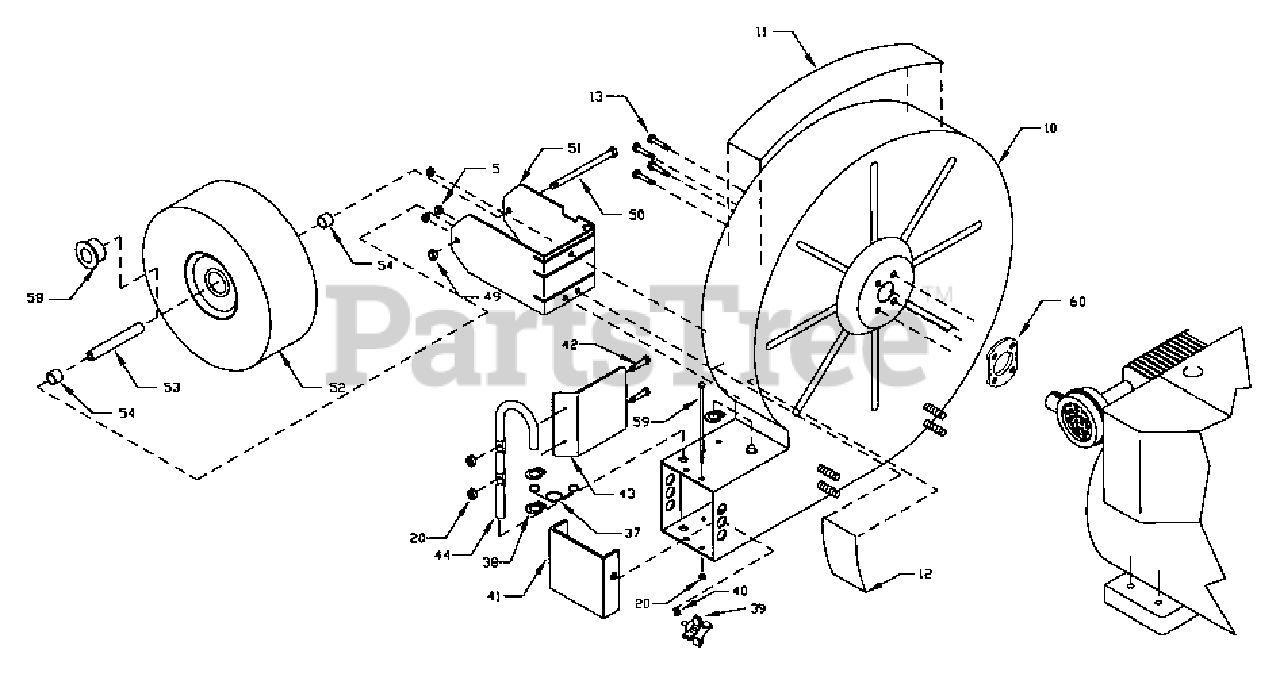

Blower Housing Parts Diagram

  • Title

10

Gravely 04703400

8,9 HP HOUSING

$

$

Not available

11

Gravely 04703600

GRAVELY HOUSING LABEL - 8 HP

$

$

Not available

12

Gravely 04703800

WARNING LABEL

$

$

Not available

13

Gravely 04705900

5/16-24X3/4 WHIZ HD FLG BOLT

$

$

Not available

20

Gravely 04706100

10-32 2-WAY LOCK NUT

$

$

Not available

37

Gravely 04703900

DEFLECTOR SPRING

$

$

Not available

38

Gravely 04704000

RETAINING RING

$

$

Not available

39

Gravely 04704100

KNOB

$

$

Not available

40

Gravely 06307200

WSHR-LK-EXT.326X.599X.031YWZC
(Superseded to 06300125)

$0.99

$

In Stock, Qty 9

0

41

Gravely 04704300

8 & 9 HP SIDE DEFLECTOR

$

$

Not available

42

Gravely 04706200

10-32 X 5/8 SERRATED FLG SCREW

$

$

Not available

43

Gravely 04704500

8 & 9 HP INTERNAL DEFLECTOR

$

$

Not available

44

Gravely 04704700

DEFLECTOR HANDLE

$

$

Not available

49

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

50

Gravely 04704800

3/8-16 X 5 1/4 BOLT

$

$

Not available

51

Gravely 04704900

WHEEL BRACKET

$

$

Not available

52

Gravely 04705100

PNEUMATIC WHEEL SYMMETRICAL

$

$

Not available

53

Gravely 04705200

PNEUMATIC WHEEL SLEEVE

$

$

Not available

54

Gravely 04705300

FRONT WHEEL BRACKET SPACER

$

$

Not available

58

Gravely 04705400

WHEEL YOKE ASSEBLY

$

$

Not available

59

Gravely 04705500

10-32 X 5 1/2 HEX M/S

$

$

Not available

60

Spacer, Engine Housing

Note: Not Used

$

$

Not available
