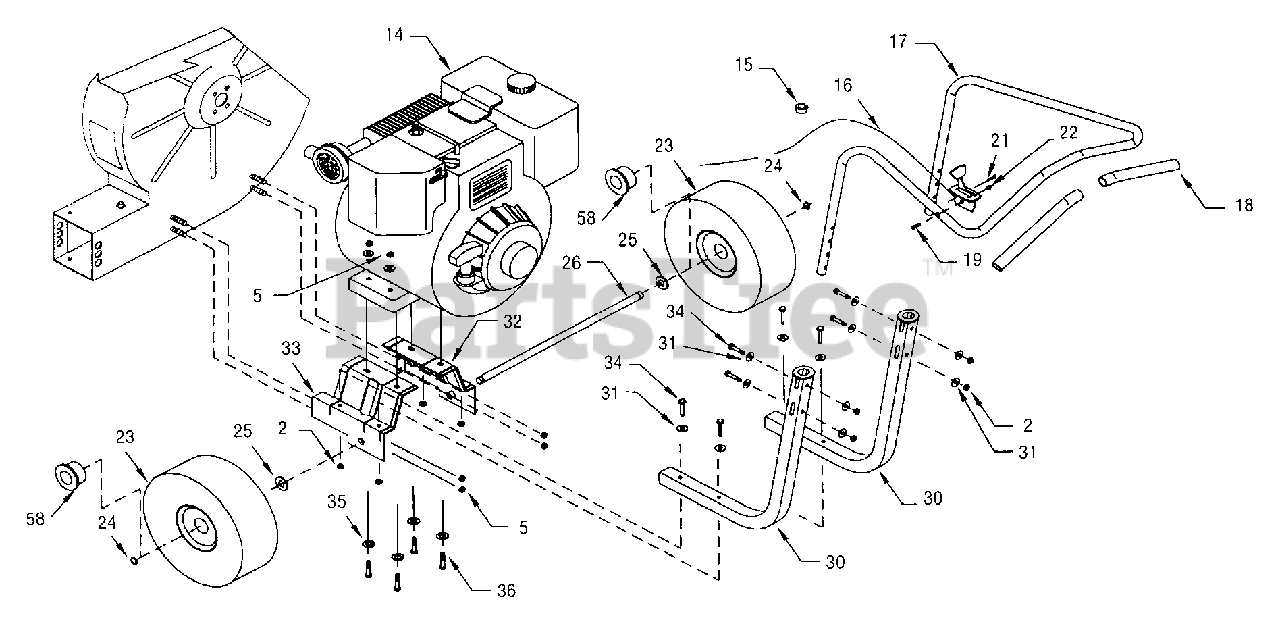

947031 - Gravely Blower, 8hp Briggs & Stratton (SN: 000101 & Above) Engine And Frame Parts Diagram

Blower, 8hp Briggs & Stratton

Engine And Frame Parts Diagram

  • Title

2

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

5

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 04701800

8 HP IC INTEK ENGINE

$

$

Not available

15

Gravely 04702000

THROTTLE CLIP

$

$

Not available

16

Gravely 04702100

THROTTLE CABLE

$

$

Not available

17

Gravely 04702200

UPPER HANDLE

$

$

Not available

18

Gravely 04702300

GRIP (SET OF 2)

Note: (set of 2)

$

$

Not available

19

Gravely 05964700

BLT-HEX .25-20X1.75 GR5 YWZC
(Superseded to 05901935)

$2.49

$

In Stock, Qty 12

0

22

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 04702400

PNEUMATIC WHEEL OFFSET, 10"

$

$

Not available

24

Gravely 04702500

RETAINING RING

$

$

Not available

25

Gravely 06442800

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

26

Gravely 04702600

AXLE

$

$

Not available

30

Gravely 04702700

LOWER HANDLE

$

$

Not available

31

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 04702800

DECK, RIGHT 5,8

$

$

Not available

33

Gravely 04703000

DECK, LEFT 5, 8

$

$

Not available

34

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 9

0

35

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

36

5/16-18 x 1 1/2 HHCS gr5

Note: Not Used

$

$

Not available

58

Gravely 04703200

PNEUMATIC WHEEL BEARING

$

$

Not available
