947103 - Parker 169cc Walk-Behind Blower (SN: 000101 & Above) Main Assembly 169 Parts Diagram

169cc Walk-Behind Blower

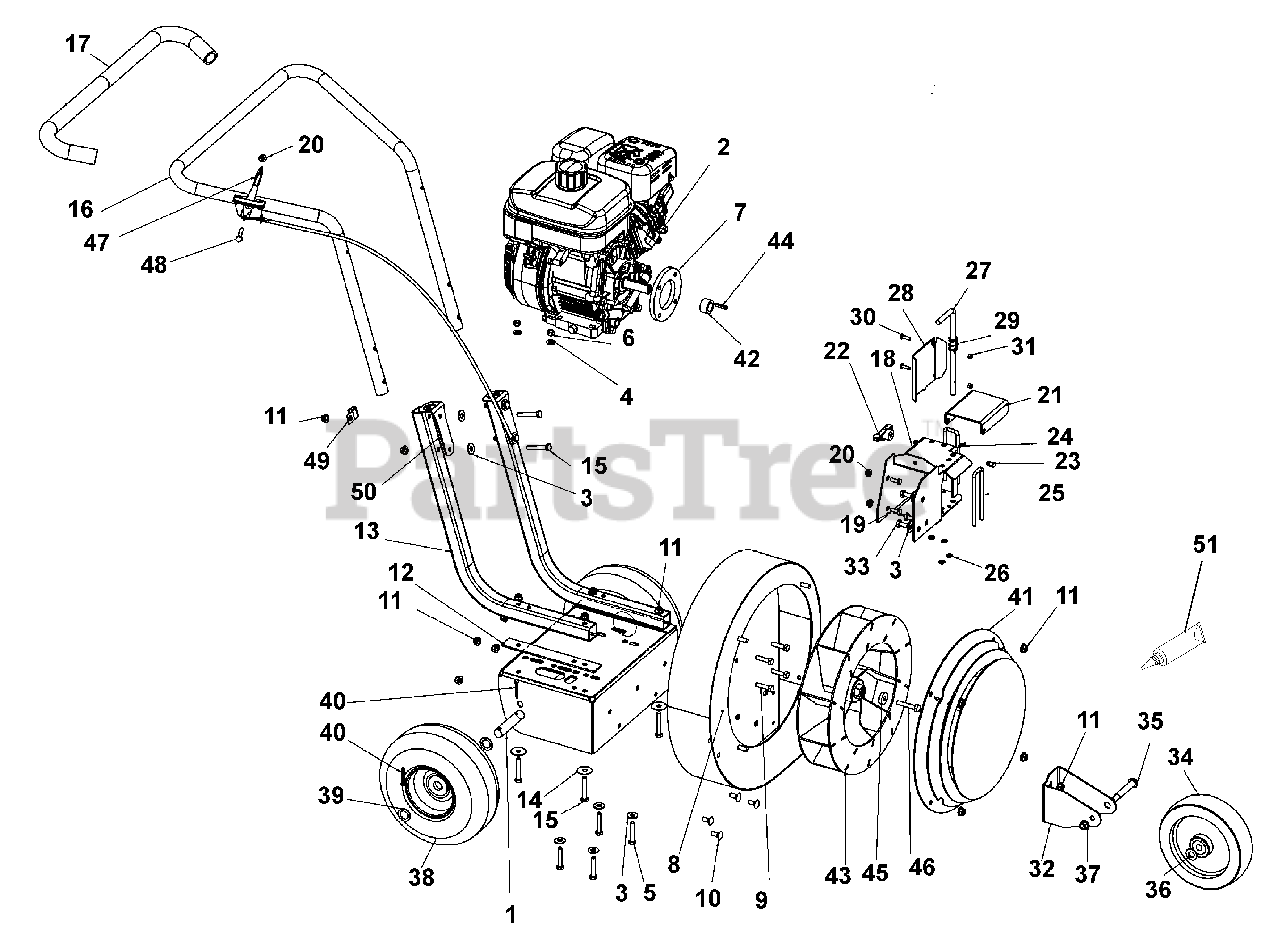

Main Assembly 169 Parts Diagram

  • Title

1

Ariens 04290053

WMT-BLOWER FRAME, SM

$153.99

$

Usually ships in 4-12 days

0

2

Ariens 08200429

ENGINE,SUBARU 6HP SP170 (CARB)

Note: (CARB)

$

$

Not available

3

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

4

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 8

0

5

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

6

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

7

Ariens 04291451

SPACER-ENGINE

$12.99

$

Usually ships in 4-12 days

0

8

Ariens 04290153

WMT-BLOWER HOUSING SM

$237.99

$

Usually ships in 4-12 days

0

9

Ariens 05901423

@BLT-HEX .31-24X1.25 GR5 YWZC

$2.49

$

Usually ships in 4-12 days

0

10

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

11

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 04290500

SPACER-RUBBER

$5.99

$

Usually ships in 4-12 days

0

13

Ariens 04349151

TUBE-HANDLEBAR, LOWER SQ

$25.99

$

Usually ships in 4-12 days

0

14

Ariens 06446900

WSHR-FL-STL .347X1.254X.048YWZ
(Superseded to 06401105)

$2.49

$

Usually ships in 4-12 days

0

15

Ariens 05957200

@BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.49

$

In Stock, Qty 13

0

16

Ariens 04290651

TUBE-HANDLEBAR, UPPER

$162.99

$

Usually ships in 4-12 days

0

17

Ariens 04290700

GRIP-HANDLEBAR, UPPER

$35.99

$

Usually ships in 4-12 days

0

18

Ariens 04290353

WMT-OUTLET CHUTE

$323.99

$

Usually ships in 4-12 days

0

19

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

20

Ariens 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 12

0

21

Ariens 04290953

BRKT-OUTLET DOOR

$12.99

$

Usually ships in 4-12 days

0

22

Ariens 07500105

KNOB,WING .31-18 UNC NYL/TALC

$3.99

$

In Stock, Qty 17

0

23

Ariens 06819100

PIN-CLEV .313X.500 YWZC

$3.49

$

Usually ships in 4-12 days

0

24

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

25

Ariens 04291000

WIREFORM-GUARD, SAFETY

$

$

Not available

26

Ariens 07027600

NUT-PUSH .25X.50 O.D.

$2.49

$

In Stock, Qty 11

0

27

Ariens 04291100

WIREFORM-LEVER, DIRECTION

$29.99

$

Usually ships in 4-12 days

0

28

Ariens 04291253

BRKT-FLAP, DIRECTION

$

$

Not available

29

Ariens 08300526

SPRING-COMP 1.0LX.72 OD .05DIA

$9.49

$

Usually ships in 4-12 days

0

30

Ariens 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, only 1 left!

0

31

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

32

Ariens 04290853

BRKT-WHEEL, FRONT

$25.99

$

Usually ships in 4-12 days

0

33

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

34

Ariens 07100911

WHEEL 8X2 W/.5 BORE BLK

$40.99

$

Usually ships in 4-12 days

0

35

Ariens 07056800

BLT-SHLDR .38-16X2.50 HWH G5

$6.99

$

In Stock, Qty 20+

0

36

Ariens 06443300

WSHR-FL-NYL .518X1.000X.080

$0.99

$

In Stock, Qty 19

0

37

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

38

Ariens 07100922

WHEEL-10X3.75 PNEU. WHITE

$

$

Not available

39

Ariens 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

$0.99

$

In Stock, Qty 6

0

40

Ariens 06701100

@PIN-CTR .16X1.25 EXTPRSQCT YZ

$1.99

$

Usually ships in 4-12 days

0

41

Ariens 04290451

WMT-INLET GUARD SM

$231.99

$

Usually ships in 4-12 days

0

42

Ariens 05501037

BUSHING, SLEEVE .76X1.13X.650

$13.99

$

Usually ships in 4-12 days

0

43

Ariens 04296100

WMT-FAN, BLOWER SM

$221.99

$

Usually ships in 4-12 days

0

44

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$1.49

$

In Stock, Qty 5

0

45

Ariens 06400836

WSHR-FL-STL .350X1.00X.250 YWZ

$3.49

$

Usually ships in 4-12 days

0

46

Ariens 05900128

BLT-HEX .31-24X2.00 G8 YZ EP80

$

$

Not available

47

Ariens 04300300

THROTTLE CONTROL

$59.99

$

Usually ships in 4-12 days

0

48

Ariens 05967100

@BLT-HEX .25-20X2.00 GR5 YWZC
(Superseded to 05901740)

$2.49

$

In Stock, only 2 left!

0

49

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 11

0

50

Ariens 04349251

BRKT-HANDLEBAR MOUNT

$16.99

$

Usually ships in 4-12 days

0

51

Ariens 00999901

ADHESIVE-LOCTITE 609 .5ML

$3.99

$

Usually ships in 4-12 days

0
