947105 - Parker 404cc Walk-Behind Blower (SN: 000101 & Above) Main Assembly 404 Parts Diagram

404cc Walk-Behind Blower

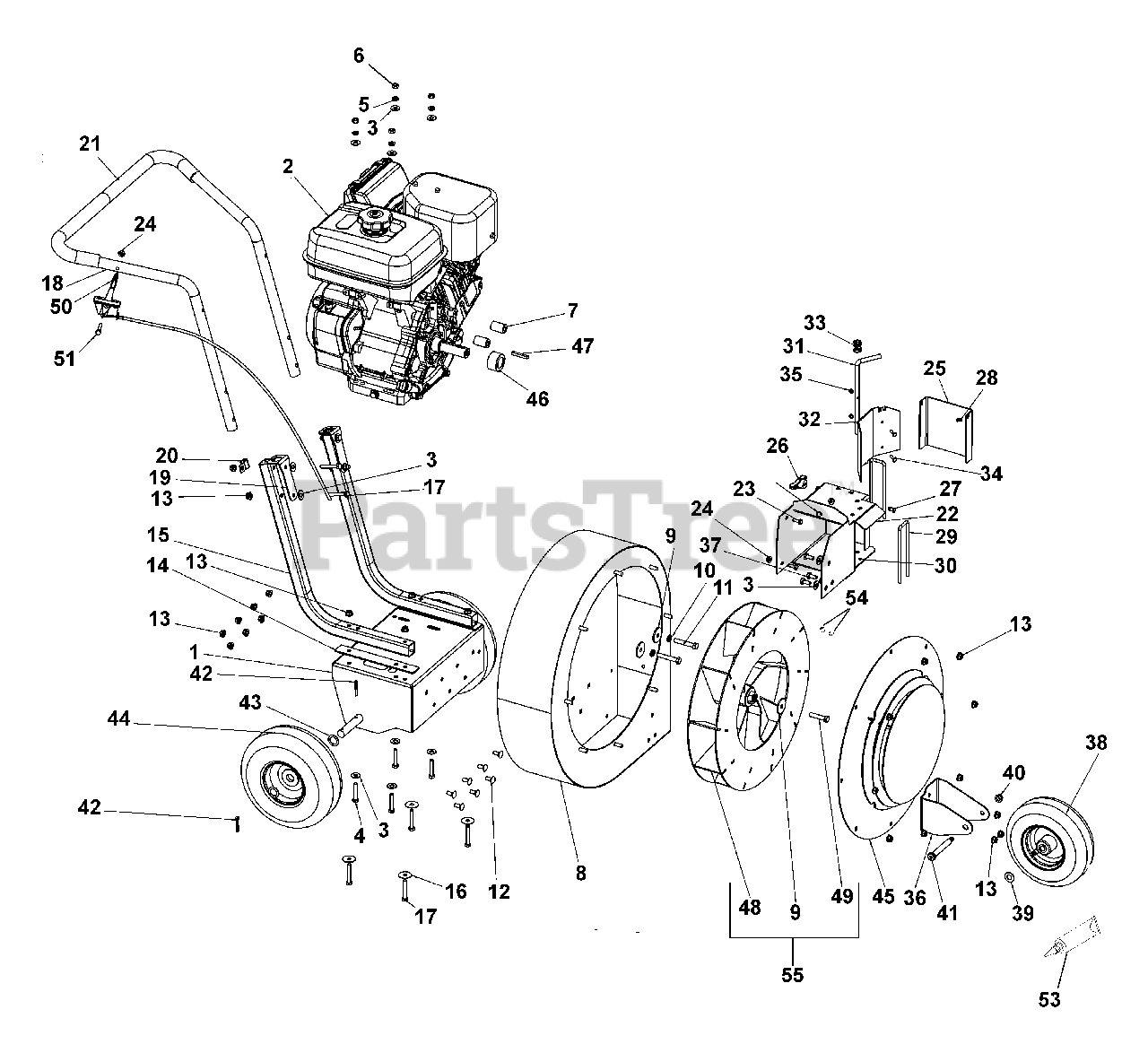

Main Assembly 404 Parts Diagram

  • Title

1

Ariens 04310753

WMT-FRAME, BLOWER LARGE

$

$

Not available

2

Ariens 08200637

ENGINE, SUBARU EX40

Note: (CARB)

$

$

Not available

3

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

4

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

5

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

6

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

7

Ariens 04299451

SPACER, .38X.875X1.38

$13.99

$

Usually ships in 4-12 days

0

8

Ariens 04307853

WMT-BLOWER HOUSING LG

$313.99

$

Usually ships in 4-12 days

0

9

Ariens 06400922

WSHR-FL-STL,.390X1.00X.25 YWZC
(Superseded to 06401125)

$2.99

$

In Stock, Qty 8

0

10

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 18

0

11

Ariens 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

12

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 15

0

13

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 19

0

14

Ariens 04290500

SPACER-RUBBER

$5.99

$

Usually ships in 4-12 days

0

15

Ariens 04349151

TUBE-HANDLEBAR, LOWER SQ

$25.99

$

Usually ships in 4-12 days

0

16

Ariens 06446900

WSHR-FL-STL .347X1.254X.048YWZ
(Superseded to 06401105)

$2.49

$

Usually ships in 4-12 days

0

17

Ariens 05957200

@BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.49

$

In Stock, Qty 13

0

18

Ariens 04290600

TUBE-HANDLEBAR, UPPER

$

$

Not available

19

Ariens 04349251

BRKT-HANDLEBAR MOUNT

$16.99

$

Usually ships in 4-12 days

0

20

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 11

0

21

Ariens 04290700

GRIP-HANDLEBAR, UPPER

$35.99

$

Usually ships in 4-12 days

0

22

Ariens 04311153

WMT-CHUTE, BLOWER LG

$

$

Not available

23

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

24

Ariens 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 12

0

25

Ariens 04311253

BRKT-CAP, CHUTE LG

$

$

Not available

26

Ariens 07500105

KNOB,WING .31-18 UNC NYL/TALC

$3.99

$

In Stock, Qty 17

0

27

Ariens 06819100

PIN-CLEV .313X.500 YWZC

$3.49

$

Usually ships in 4-12 days

0

28

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

29

Ariens 04311300

WIREFORM-GUARD, SAFETY LG

$

$

Not available

30

Ariens 07027600

NUT-PUSH .25X.50 O.D.

$2.49

$

In Stock, Qty 11

0

31

Ariens 04291100

WIREFORM-LEVER, DIRECTION

$29.99

$

Usually ships in 4-12 days

0

32

Ariens 04311453

BRKT-DEFLECTOR, AIR BAFFLE

$18.99

$

Usually ships in 4-12 days

0

33

Ariens 08300526

SPRING-COMP 1.0LX.72 OD .05DIA

$9.49

$

Usually ships in 4-12 days

0

34

Ariens 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

Usually ships in 4-12 days

0

35

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

36

Ariens 04300153

BRKT-WHEEL, FRONT

$

$

Not available

37

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

38

Ariens 07100923

WHEEL-9X2.5 PNEU- WHITE RIM

$56.99

$

Usually ships in 4-12 days

0

39

Ariens 06443300

WSHR-FL-NYL .518X1.000X.080

$0.99

$

In Stock, Qty 19

0

40

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

41

Ariens 07070125

BLT-SHLDR .5X3.25X.38-16

$4.99

$

Usually ships in 4-12 days

0

42

Ariens 06701100

@PIN-CTR .16X1.25 EXTPRSQCT YZ

$1.99

$

Usually ships in 4-12 days

0

43

Ariens 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

$0.99

$

In Stock, Qty 6

0

44

Ariens 07100922

WHEEL-10X3.75 PNEU. WHITE

$

$

Not available

45

Ariens 04311551

WMT-INLET GUARD LG

$

$

Not available

46

Ariens 05501038

BSHG-SLV, 1.0X1.75X1.0

$9.49

$

Usually ships in 4-12 days

0

47

Ariens 06601800

KEY-STR .25X1.75X.25

$3.99

$

In Stock, only 2 left!

0

48

Ariens 04433500

WMT-FAN, LG W/SET SCR
(Superseded to 54700100)

$268.99

$

Usually ships in 4-12 days

0

49

Ariens 05900130

BLT-HEX .38-24X1.75 G8 YZ EP80

$8.49

$

Usually ships in 4-12 days

0

50

Ariens 04300300

THROTTLE CONTROL

$59.99

$

Usually ships in 4-12 days

0

51

Ariens 05967100

@BLT-HEX .25-20X2.00 GR5 YWZC
(Superseded to 05901740)

$2.49

$

In Stock, only 2 left!

0

52

Ariens 06436800

WSHR-FL-STL .390X.88X.18 YWZC

$3.99

$

Usually ships in 4-12 days

0

53

Ariens 00999901

ADHESIVE-LOCTITE 609 .5ML

$3.99

$

Usually ships in 4-12 days

0

54

Ariens 06005500

SCR-SET .31-18X.38 SKHCUPDL

$2.99

$

In Stock, Qty 17

0

55

Ariens 54700100

KIT-14HP FAN REPLACEMENT

$268.99

$

Usually ships in 4-12 days

0
